Just did the install on a blackvue 2 channel with power magic pro, total time 5 hours (probably over an hour on just fuse research + running to get add a fuses), here is my thoughts, notes, rants, and tips:
Before you start, plan your electrical setup. I wanted to do fuse taps, then I decided to do add a fuse kits and use an unused slot from the fuse box, turns out unused slots don't have power...
https://www.supramkv.com/threads/fuse-panel-layouts.5741/page-6#post-192156 this thread has an amazing breakout of fuses, I couldn't decipher which fuse is which to find a logical system, so I just used fuse F244 and F254 (If I have an issue I'll edit this post) with a 3a fuse on the accessory side and the original 5a on the original side. There is another "fusebox" on the BDC in the passenger footwell, so you could save yourself the hassle of the trunk mess if you tap in there, I chose not to do this.
I did my whole install front to rear, and didn't regret it, I plugged both cables into the camera then ran through the headliner, I'm not a fan of the headliner install as you can hear glue pulling, but it's the best option really, didn't need to remove the A pillar piece, but I did go under it so I did light prying and pushed under.

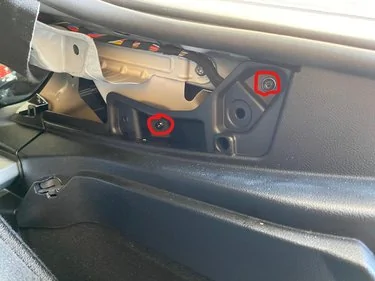

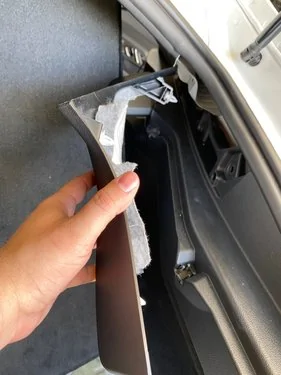

Step 2e removing the rectangular plastic panel that is at the "back" of the trunk (plate side), it is indeed pull STRAIGHT up, but realize you are pushing against the rubber seal (you can lift the seal over if you want) and the floor of the trunk will also hold it in.

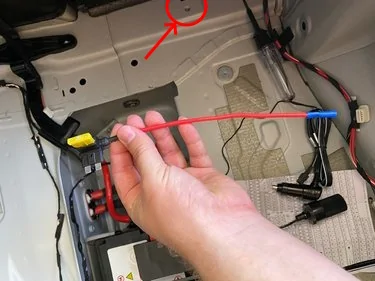

There is a ground nut available right next to the fuse box which I can confirm works, it's just to the right of the fuse box and is a silver metallic color and seems to have a nylon nut with a built in washer
Step 26 that T35 is indeed incredibly tight, you will not be able to get it out with a screwdriver, I had to put a wrench on my screwdriver to break it loose and tighten it down. Its indeed covered in loctite so it will be hard to remove the entire way out
If you don't remove both of the T35s the headliner won't sag, I did NOT want to deal with removing the entire left side of the car and for my basic blackvue I've never had signal interference issues so idc running power and data beside each other. I'd still remove the single T35 on the right side to get just a bit more wiggle room, which you will need when running through the rubber hose for the hatch.
The rubber hose in step 28 is pretty workable actually, lots of room inside of it, both sides disconnect and the center piece disconnects. I used a dry teflon spray lube to lube the cable, then electrical taped the cable to a coat hanger (metal) I shoved through. It proved nice to have something flexible like the metal hangar because I needed a slight curve to achieve the routing to that circle pop cover piece, I had my wire come out from here, I didn't remove the panel and do the routing see in step 33
Before you start, plan your electrical setup. I wanted to do fuse taps, then I decided to do add a fuse kits and use an unused slot from the fuse box, turns out unused slots don't have power...
https://www.supramkv.com/threads/fuse-panel-layouts.5741/page-6#post-192156 this thread has an amazing breakout of fuses, I couldn't decipher which fuse is which to find a logical system, so I just used fuse F244 and F254 (If I have an issue I'll edit this post) with a 3a fuse on the accessory side and the original 5a on the original side. There is another "fusebox" on the BDC in the passenger footwell, so you could save yourself the hassle of the trunk mess if you tap in there, I chose not to do this.
I did my whole install front to rear, and didn't regret it, I plugged both cables into the camera then ran through the headliner, I'm not a fan of the headliner install as you can hear glue pulling, but it's the best option really, didn't need to remove the A pillar piece, but I did go under it so I did light prying and pushed under.
Step 2e removing the rectangular plastic panel that is at the "back" of the trunk (plate side), it is indeed pull STRAIGHT up, but realize you are pushing against the rubber seal (you can lift the seal over if you want) and the floor of the trunk will also hold it in.
There is a ground nut available right next to the fuse box which I can confirm works, it's just to the right of the fuse box and is a silver metallic color and seems to have a nylon nut with a built in washer
Step 26 that T35 is indeed incredibly tight, you will not be able to get it out with a screwdriver, I had to put a wrench on my screwdriver to break it loose and tighten it down. Its indeed covered in loctite so it will be hard to remove the entire way out
If you don't remove both of the T35s the headliner won't sag, I did NOT want to deal with removing the entire left side of the car and for my basic blackvue I've never had signal interference issues so idc running power and data beside each other. I'd still remove the single T35 on the right side to get just a bit more wiggle room, which you will need when running through the rubber hose for the hatch.
The rubber hose in step 28 is pretty workable actually, lots of room inside of it, both sides disconnect and the center piece disconnects. I used a dry teflon spray lube to lube the cable, then electrical taped the cable to a coat hanger (metal) I shoved through. It proved nice to have something flexible like the metal hangar because I needed a slight curve to achieve the routing to that circle pop cover piece, I had my wire come out from here, I didn't remove the panel and do the routing see in step 33
