Installed Eibach Z4 3.0 lower springs .8” drop

delita1

Well-Known Member
First Name
Ryan
Joined
Oct 10, 2020
Threads
9
Messages
151
Reaction score
93
Location
Virginia
Car(s)
2021 Z4 M40i, 2021 Rubicon Unlimited
~ Yes I’m on stock tires... but with the moderate lowering of .8” front and rear ... you wouldn’t have any clearance issues with a larger sized tire.
Appreciate the response.
Sponsored


OP
OP
Andrew4Supra

Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Threads
80
Messages
1,638
Reaction score
2,608
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI
Does look great!

Hows the ride?
Thanks!

As for the ride... many have said they like this set up and near oem ride.

I honestly haven’t driven the car since the install due to the bad Ohio winter weather.


Last edited:

monkey_alan

Member
First Name
Ash
Joined
Apr 11, 2020
Threads
1
Messages
19
Reaction score
33
Location
Australia
Car(s)
A90 Monza Red Supra
I've noticed Eibach have two different part numbers available for lowered springs on the Supra.
Probably a dumb question but does anyone know what the difference is ??
E10-20-046-02-22
E10-82-089-01-22

OP
OP
Andrew4Supra

Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Threads
80
Messages
1,638
Reaction score
2,608
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI
As mentioned earlier, I was in search of an even subtle drop (.8” front and rear*) versus lower than some others prefer.

Here’s the breakdown in the differences of the most common lowering springs.

H&R (Sport) Supra 3.0 -
1” front & .75” rear

Eibach (Pro-Kit) Supra 3.0 -
1.75” front & 1.2” rear

*Eibach (Pro-Kit) Z4 3.0 - (Euro Spec)
.8” front & .8” rear
(These are only available out of the county -
not a US part number)
Part # E10-20-046-02-22

After securing the correct part number I purchased the set on eBay - shipped from Poland (arrived in a few days)

eBay Link Below: https://www.ebay.com/itm/184497855474


Last edited:

delita1

Well-Known Member
First Name
Ryan
Joined
Oct 10, 2020
Threads
9
Messages
151
Reaction score
93
Location
Virginia
Car(s)
2021 Z4 M40i, 2021 Rubicon Unlimited
As mentioned earlier, I was in search of an even subtle drop (.8” front and rear*) versus lower than some others prefer.

Here’s the breakdown in the differences of the most common lowering springs.

H&R (Sport) Supra 3.0 -
1” front & .75” rear

Eibach (Pro-Kit) Supra 3.0 -
1.75” front & 1.2” rear

*Eibach (Pro-Kit) Z4 3.0 - (Euro Spec)
.8” front & .8” rear
(These are only available out of the county -
not a US part number)
Part # E10-20-046-02-22

After securing the correct part number I purchased the set on eBay - shipped from Poland (arrived in a few days)

eBay Link Below: https://www.ebay.com/itm/184497855474

Do you think it's worth putting something under the bumper to prevent scraping (like SLIPLO) after the 0.8 drop or is it still plenty high enough that you have zero clearance issues? Just curious. Thanks for this by the way - I just ordered from that link and it says 3 day UPS Select even though its international - which is nice.

Last edited:

Sigg

Well-Known Member
First Name
Dee
Joined
Jan 31, 2021
Threads
10
Messages
320
Reaction score
321
Location
MINNESOTA
Car(s)
2021 Mk5,Supra 2018 KTM SuperDuke, 21 sienna plat
This is sweet! Very tasteful stance...

OP
OP
Andrew4Supra

Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Threads
80
Messages
1,638
Reaction score
2,608
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI
Do you think it's worth putting something under the bumper to prevent scraping (like SLIPLO) after the 0.8 drop or is it still plenty high enough that you have zero clearance issues? Just curious.
~ Being slightly lower than stock... I might add this for additional protection to the lower front spoiler.




Last edited:

Escapist

Well-Known Member
First Name
Alex
Joined
Aug 28, 2020
Threads
9
Messages
564
Reaction score
698
Location
Pensacola, FL
Car(s)
2020 GR Supra, 2016 Yamaha R1
I need these springs in my life. I assume the car has to get an alignment after getting these lowering springs installed?

OP
OP
Andrew4Supra

Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Threads
80
Messages
1,638
Reaction score
2,608
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI
I need these springs in my life. I assume the car has to get an alignment after getting these lowering springs installed?
~ Yes an alignment would be suggested after the springs settle. Perhaps within a 100 miles or so after install.

Some may say the alignment isn't altered with the spring install but I think it’s a good idea.


Last edited:

Nocturnal LE

Well-Known Member
First Name
Daniel
Joined
Aug 9, 2019
Threads
12
Messages
316
Reaction score
191
Location
Cleveland, OH
Car(s)
2020 Supra LE
Looks great.. modest drop probably good idea for our Ohio roads. What all did this kit come with? Sleeves? New bump stops? Instructions?

OP
OP
Andrew4Supra

Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Threads
80
Messages
1,638
Reaction score
2,608
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI
Looks great.. modest drop probably good idea for our Ohio roads. What all did this kit come with? Sleeves? New bump stops? Instructions?

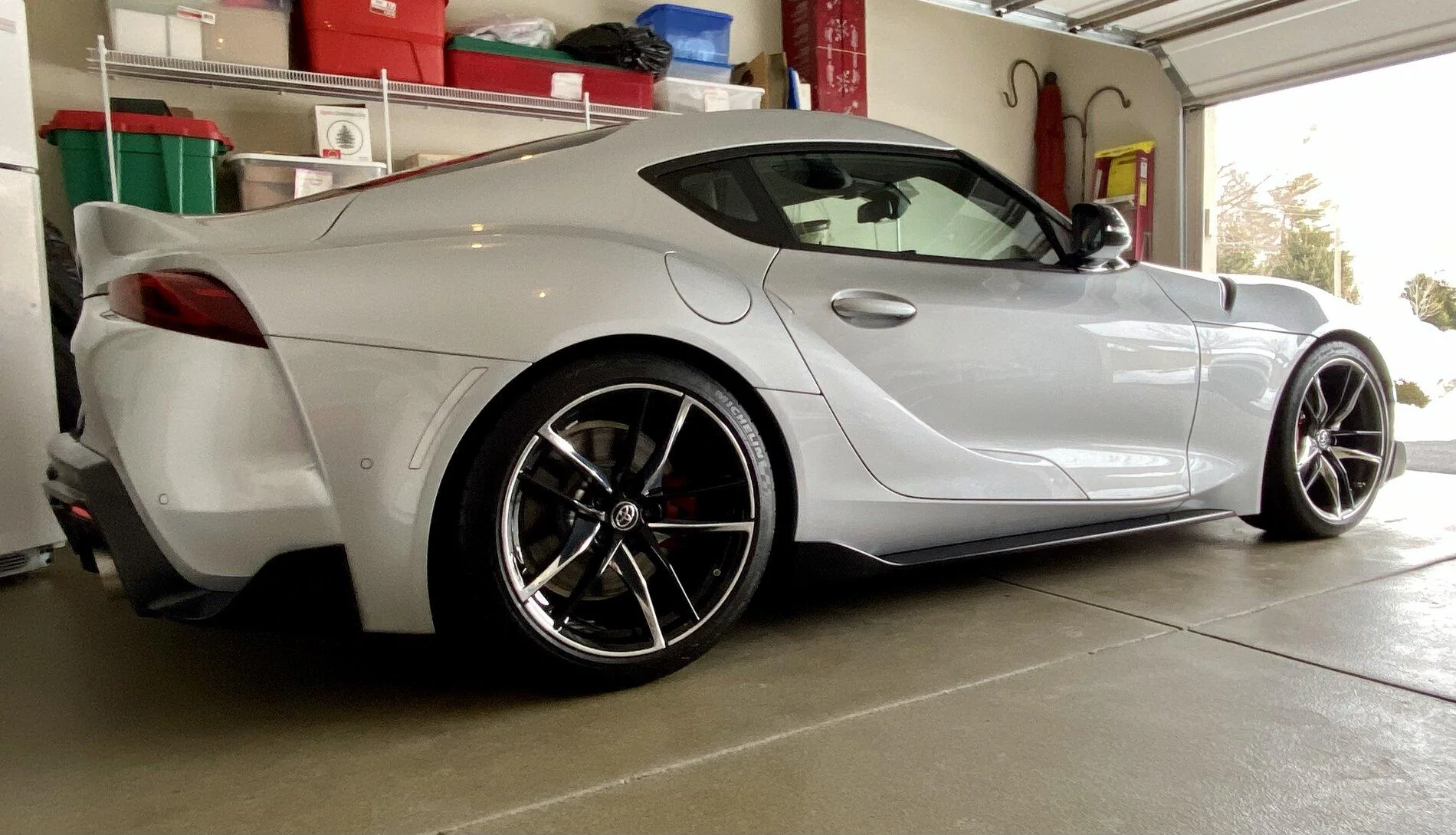

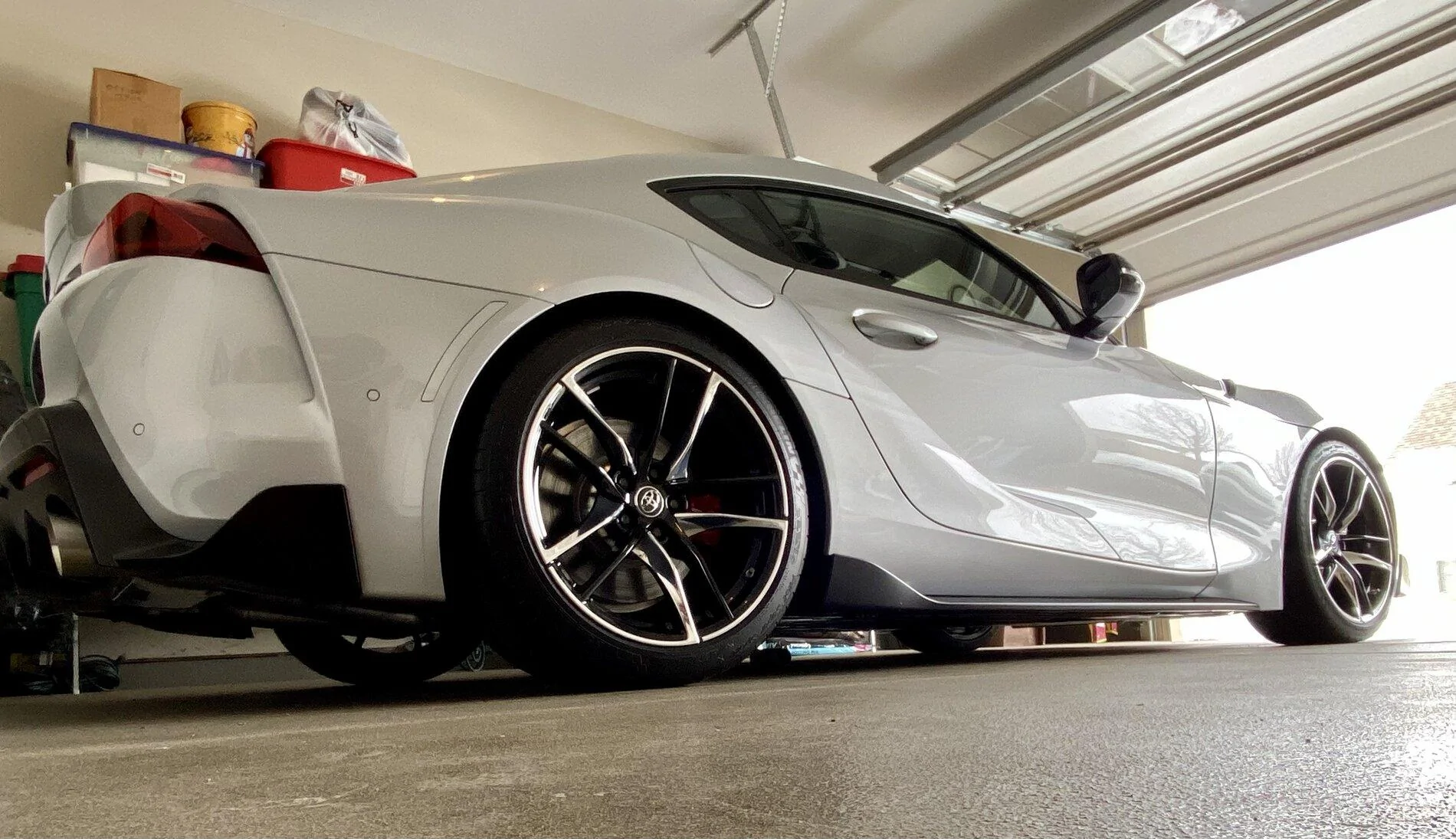

Thank you... the end result was the perfect stance I was looking to achieve.

As for the kit... it just came with the 4 eibach lowering springs with insulators attached to the rear springs.

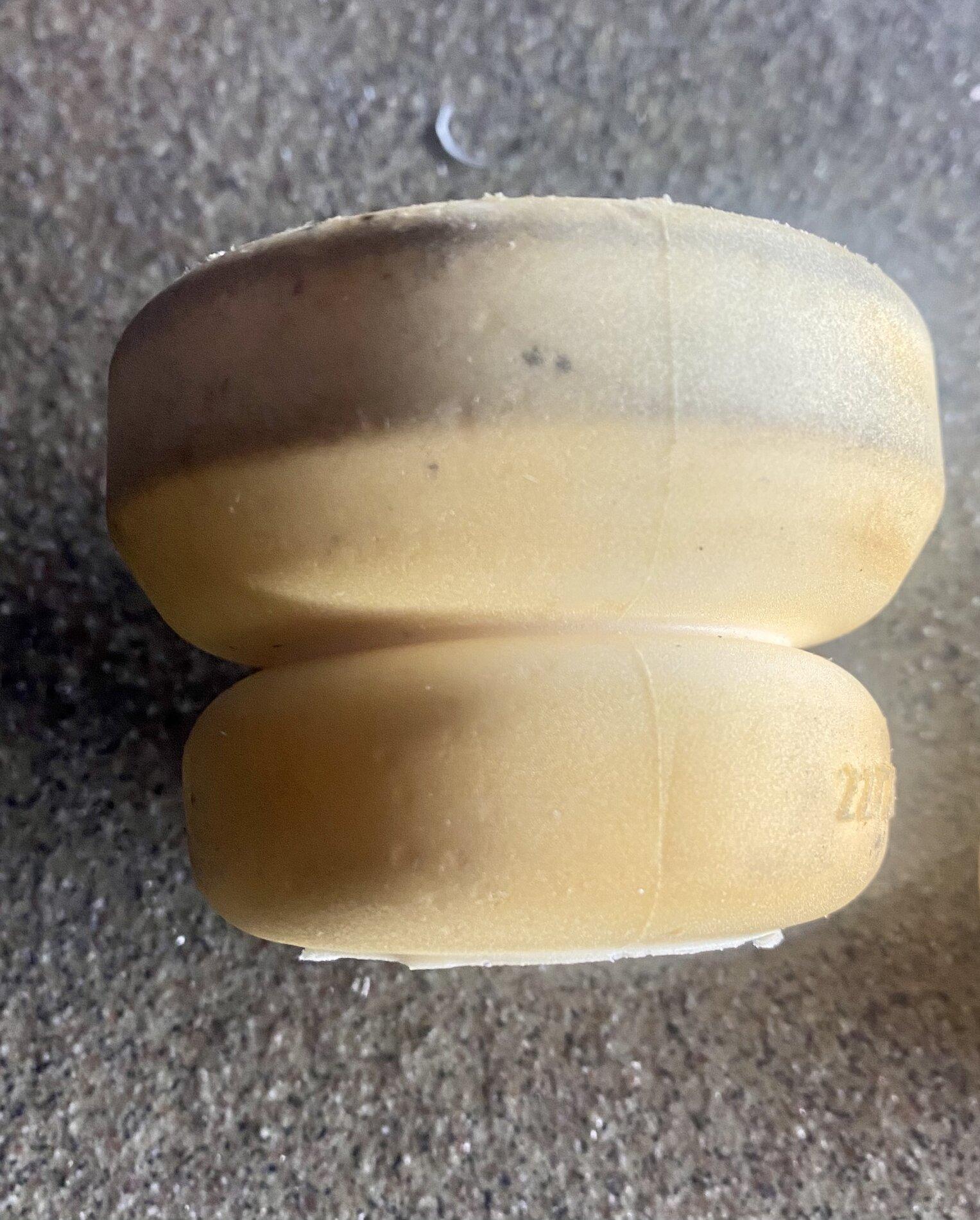

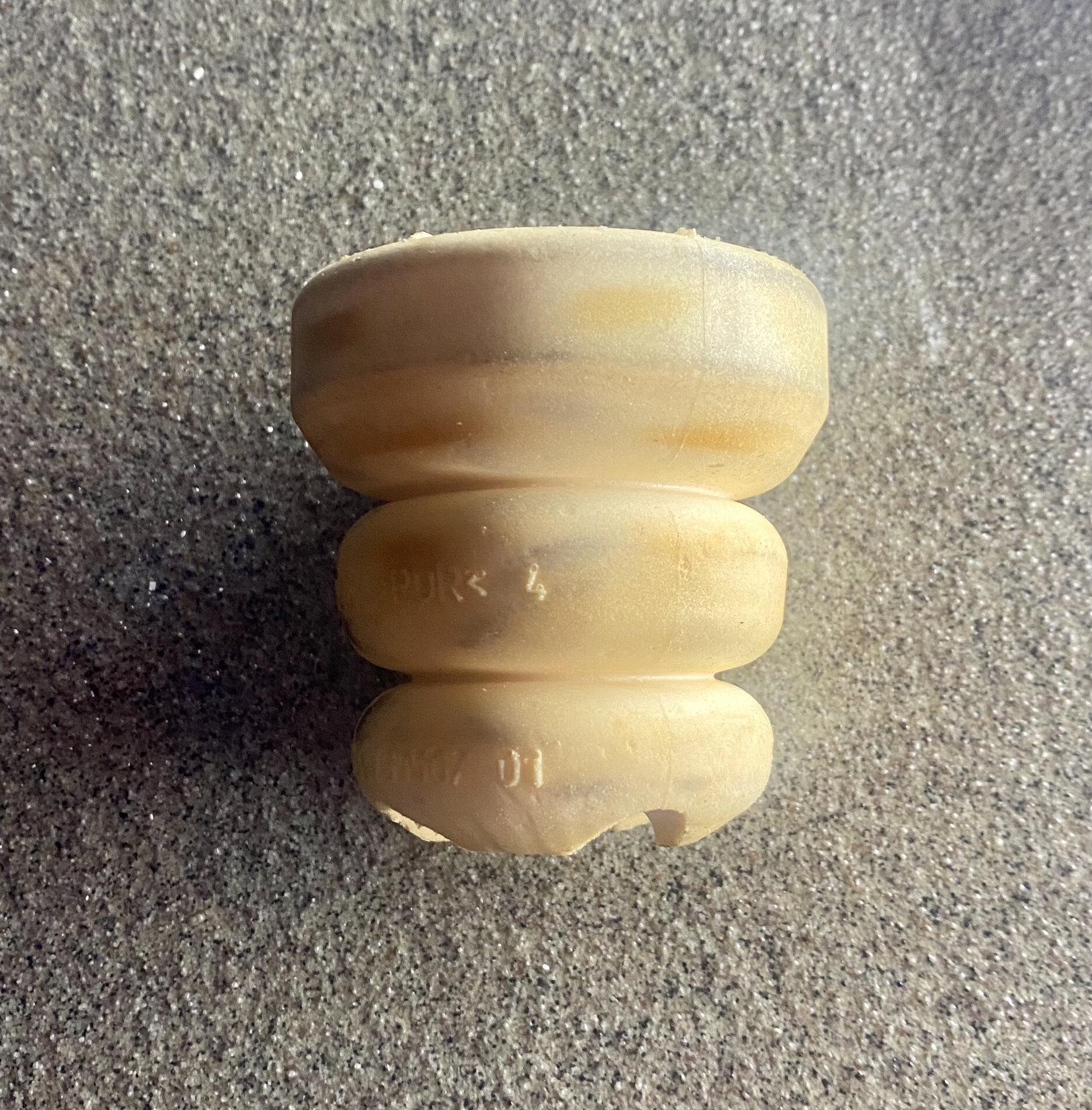

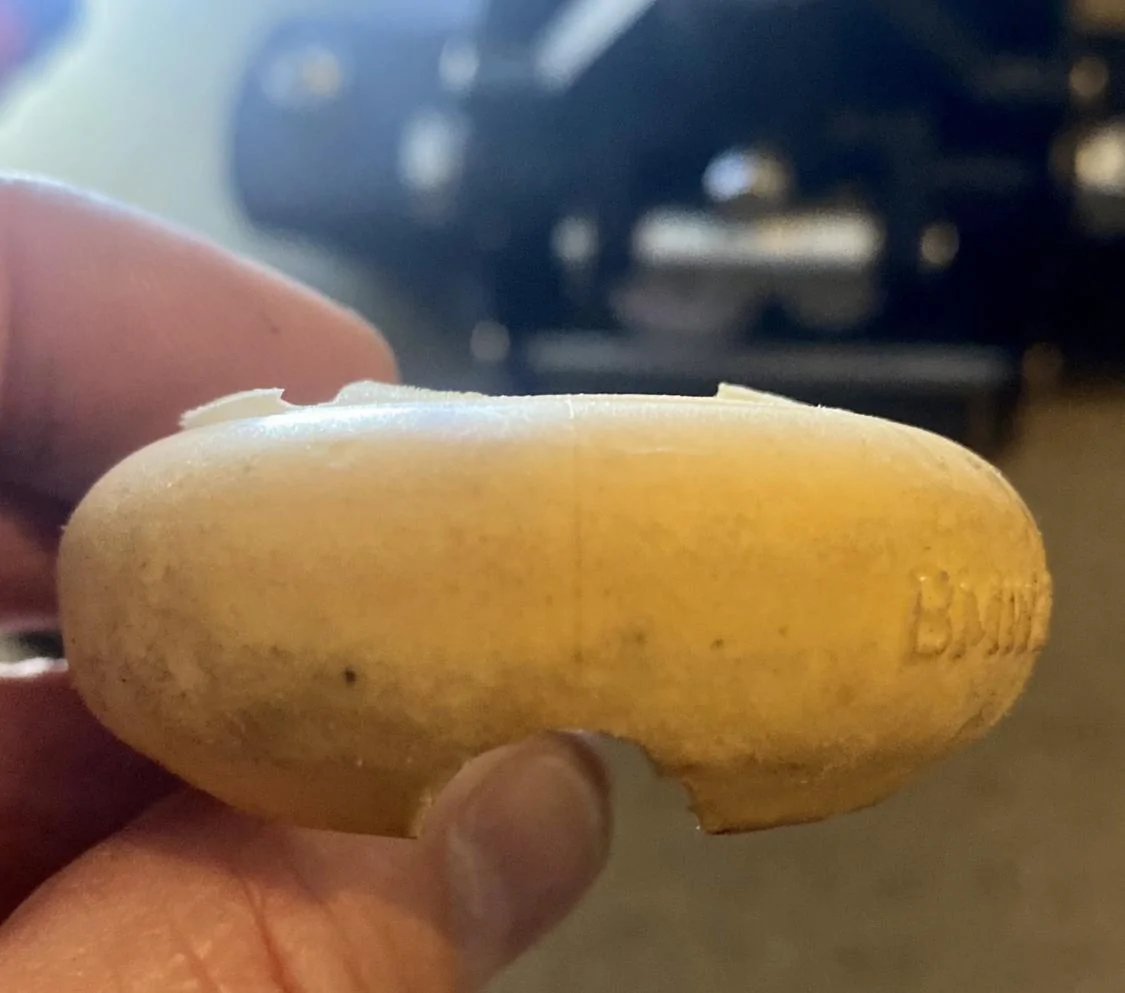

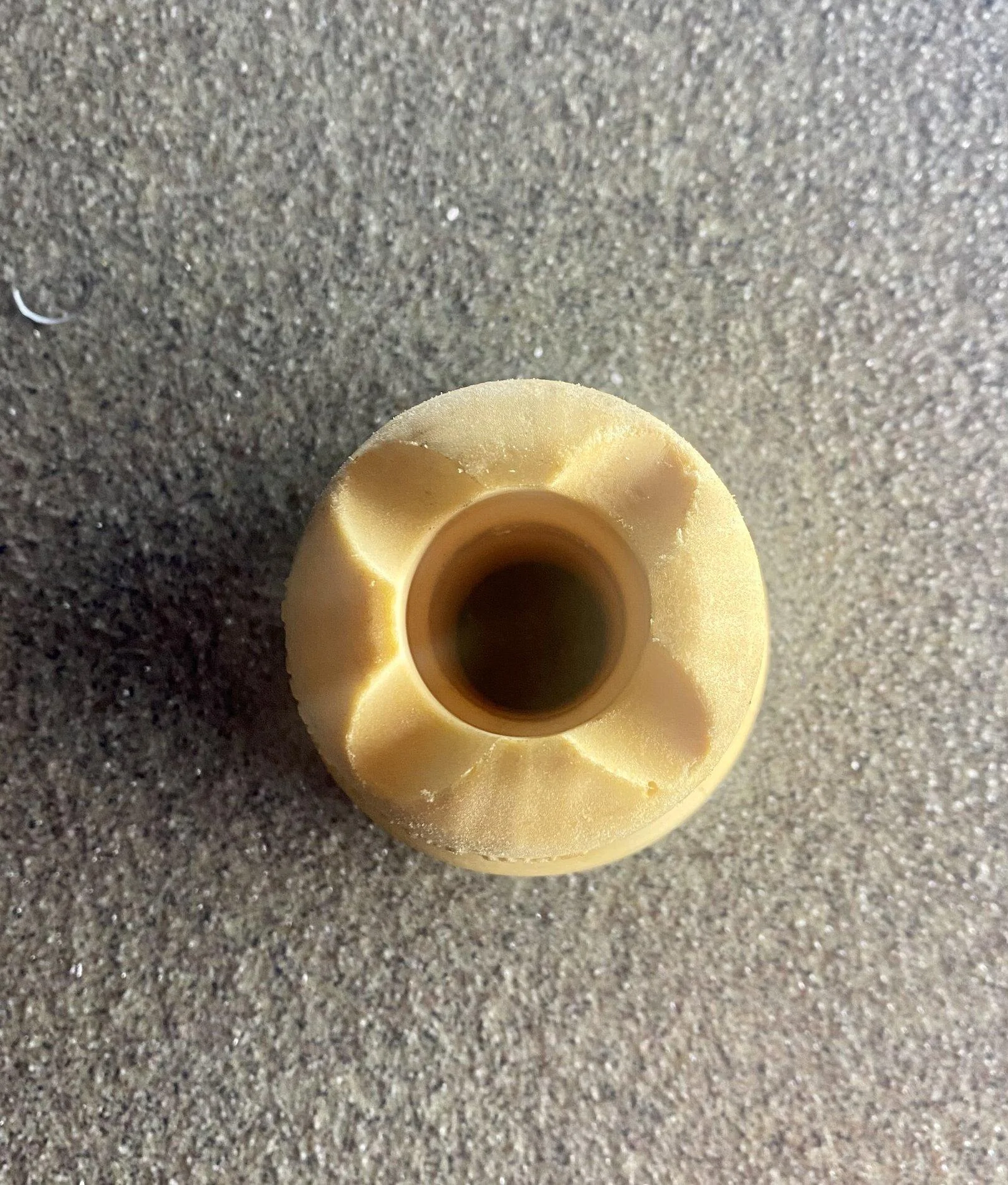

I trimmed the factory bump stops (one round donut / rounded side - see photo) front and rear and reused the original dust boots. All while retaining the oem look (front and rear dust boots and bump stops).

No instructions included. A rather straight forward install.

Hope this information is helpful.






Last edited:

monkey_alan

Member
First Name
Ash
Joined
Apr 11, 2020
Threads
1
Messages
19
Reaction score
33
Location
Australia
Car(s)
A90 Monza Red Supra
I just installed a set of these on mine today. Its a fantastic mod, I too think its the perfect height. Ride quality hasn't been compromised at all.
Cheers for sharing
