I wouldn't be surprised to see a change in positioning (not sure how much) of the downpipe since the manifold input design changes from a 2 port over to a 6 port design which may take up a bit more space...Also didn't they also mention a change in exhaust as well? guess we'll see once the 2021 get released...
Yeah exactly. I'm thinking the downpipe will be different, but if it exits at the same location, I'm hoping a catback from the '20 will bolt right up.

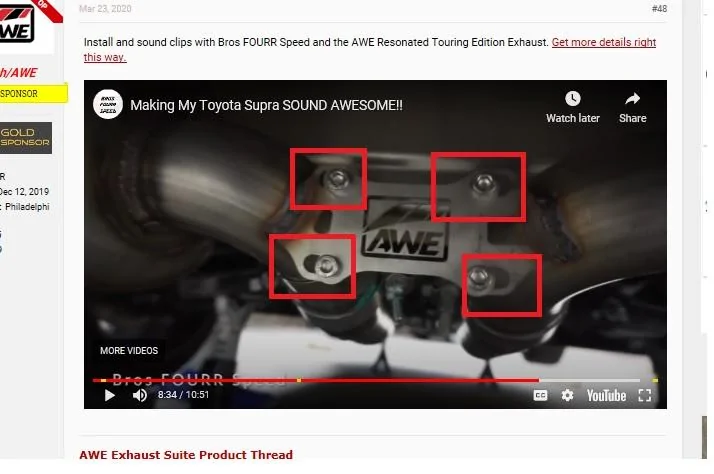

Without the plate, does everything line up correctly? If so, than the easiest fix would be line everything up, bolt it in place, measure the plate size you need and get a plate cut and drilled.I have this exhaust and while I like it in general, I have been going crazy trying to get the fitment right. I just cannot do it. It is to the point where I had to order all new clamps. The tips pinch the inside of the bumper and hang too low. I was directed to the "how to align" videos but that is not the problem. After carefully studying the brothers video I think I found the issue but do not know how to resolve it (why don't you contact awe support?) --because there is such a crazy amount of info wanted to fill out that form I might as well be filing taxes.

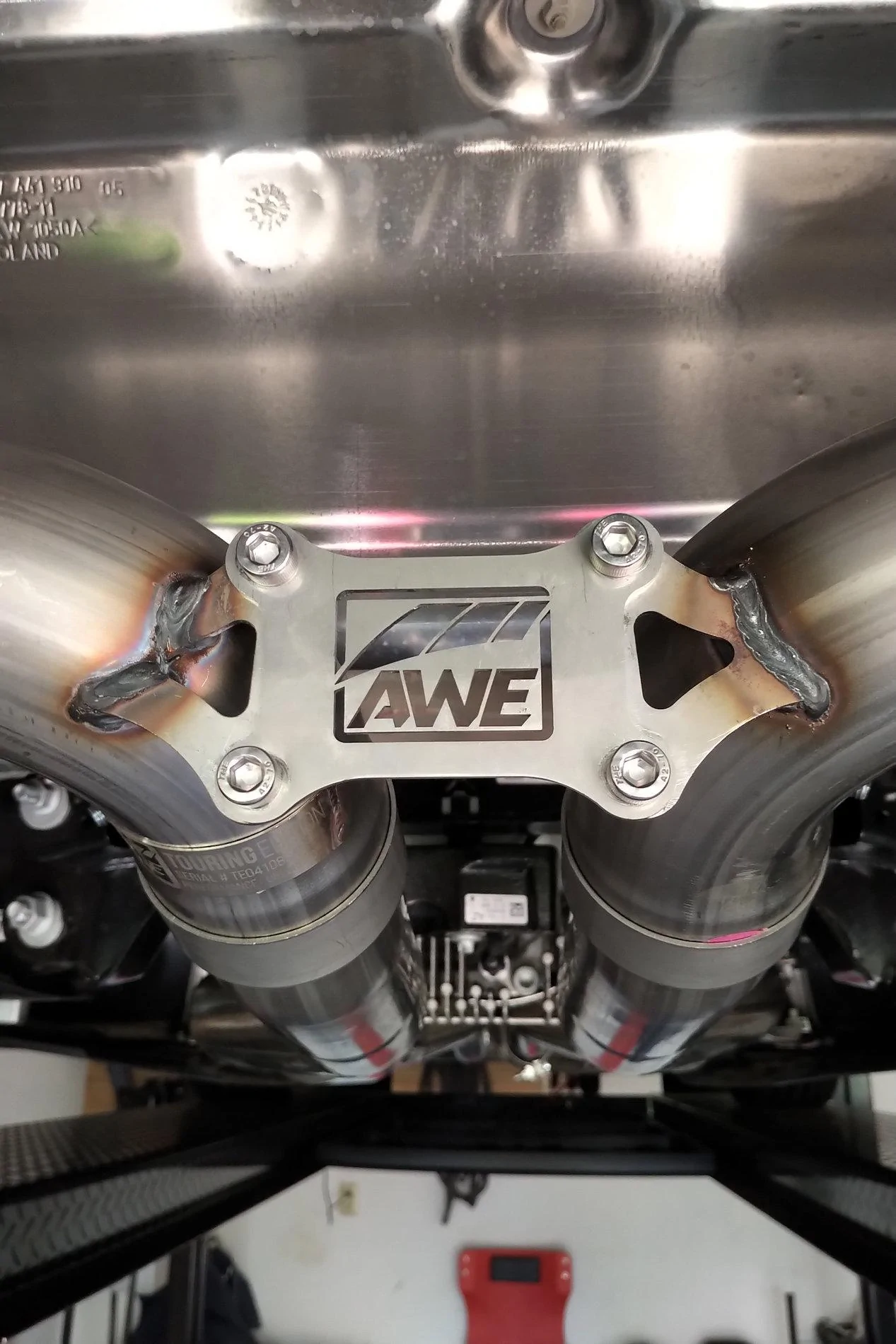

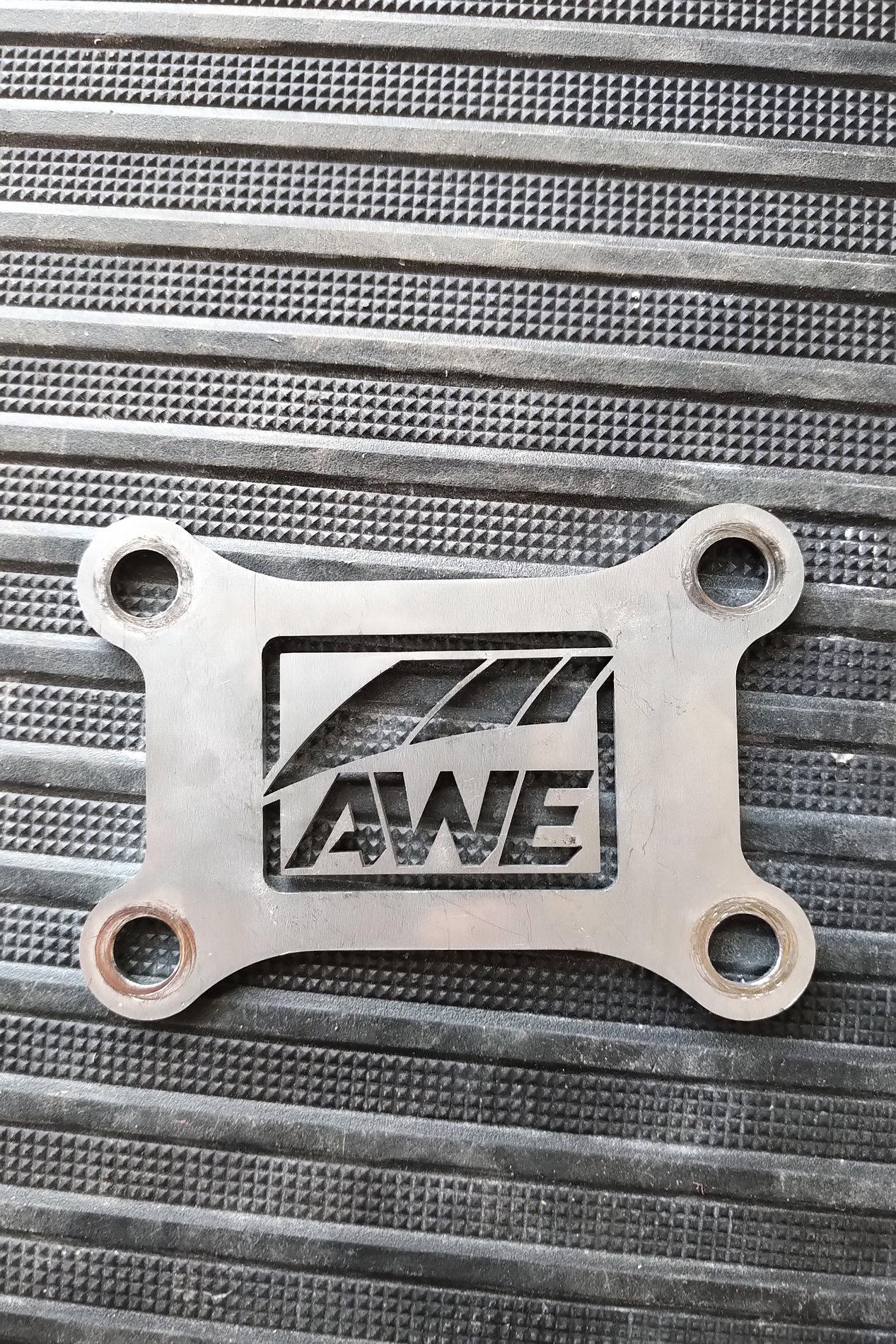

It looks like much of the alignment of this system is dependent on that center "AWE" plate to space and position the mufflers. Compare what I actually have to the brothers video it is really apparent what the problem is. The actual system has nearly no play whereas the brothers version has an enormous amount of adjustment ability. Worse off, it appears to be on the bracket side not the plate side. There is not even the material to drill out the plate to give the kind of play that appears to be needed. Look how far out the brother adjustment is.
I wonder if I was sent an early model of this that has since changes..... How does one go about fixing them? creating a new plate? Replacing the muffler assemblies with the right brackets? I hate to post this here but the support form is way to overblown.
Your adjustment lies in the mid pipes. Clock them around and adjust the rear section to perfect alignment. I know you mentioned it, but please lend a few mins and fill out the support form to enable us proper documentation on our end.
Push it all in position, then measure the distance between the holes. Go to a hardware store and have a plate cut and drilled.
We'll be analyzing and verifying any changes. We do this for every model year we manufacture for
Awesome! Because I'll need a black tipped version for my A91We'll be analyzing and verifying any changes. We do this for every model year we manufacture for

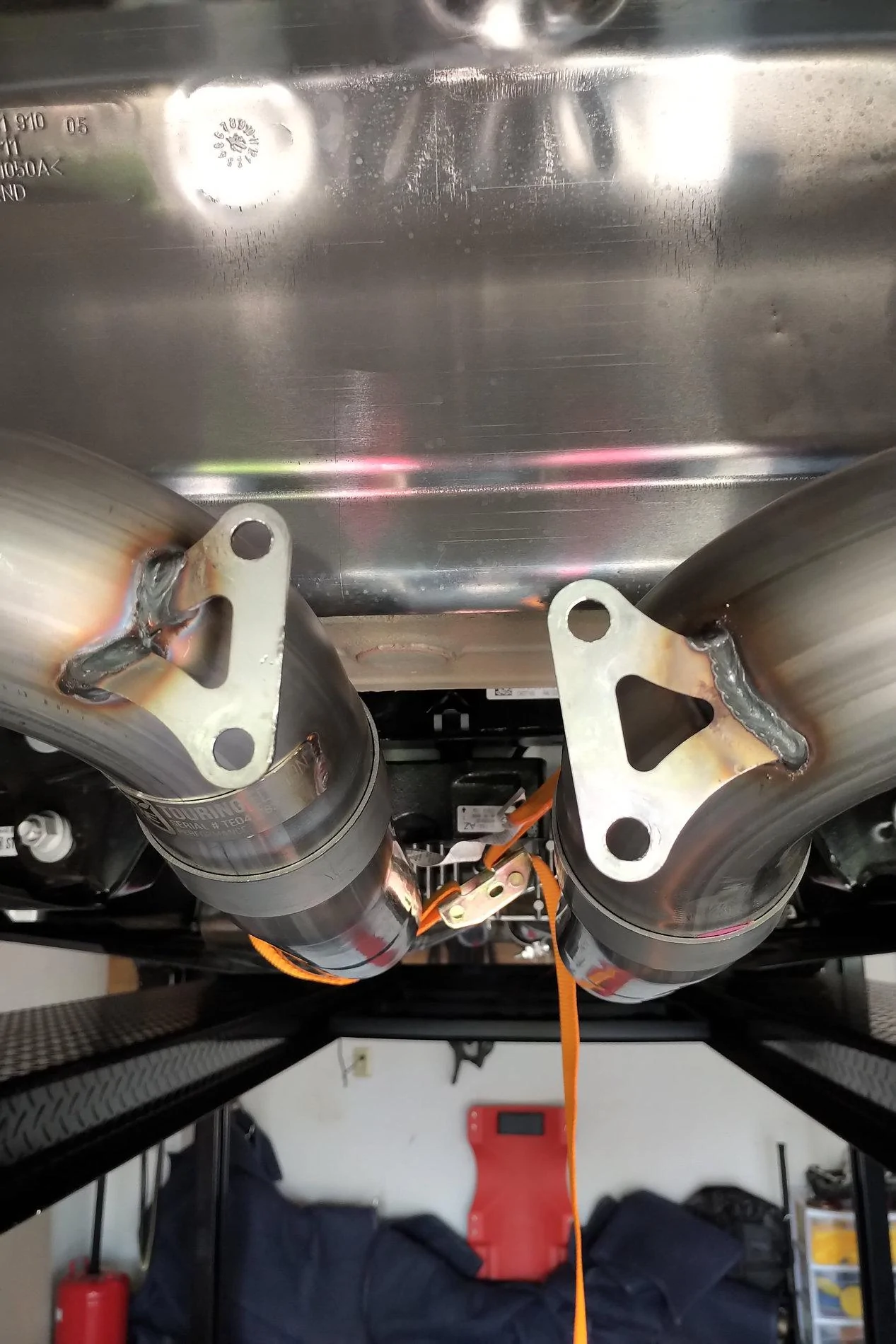

Its not the midpipe, look at the bracket pictures, they can only “point” at each other one way, IE the muffler pipe can only line up one way. There is no play in those brackets nor the AWE plate. I think the pictures of the video version against the real version are pretty clear.
