Share your IAT and Ambient Temp. (If you log it)

Camus

Well-Known Member
First Name
Daniel.
Joined
Jan 16, 2020
Posts
92
Reaction score
64
Location
Elk Grove, California
Car(s)
2020 GR Supra , 2006 Z4M Roadster, Accord 15 v6 - 6, Mini S 2020.
Hi,

I am doing some experiments with the Intake, I bought the MST CAI and it sounds great, however what I see is that there is an increse in the IAT. With the stock air box was about 85°F driving and 95°F at a stop on idle. Now with the CAI is about 95°F driving and up to 110°F on idle... at 65° ambient temp both cases.

For all the people logging, could you please post your IAT and ambient temperatures to compare please?




Advertisement




JasonO

Well-Known Member
First Name
Jason
Joined
Oct 30, 2019
Posts
453
Reaction score
522
Location
Lake Charles, LA
Car(s)
Supra LE
Hi,

I am doing some experiments with the Intake, I bought the MST CAI and it sounds great, however what I see is that there is an increse in the IAT. With the stock air box was about 85°F driving and 95°F at a stop on idle. Now with the CAI is about 95°F driving and up to 110°F on idle... at 65° ambient temp both cases.

For all the people logging, could you please post your IAT and ambient temperatures to compare please?
Does the box make have a good seal? I saw a picture or two that looked kinda questionable where air may get in from the engine compartment.

OP
Camus

Camus

Well-Known Member
First Name
Daniel.
Joined
Jan 16, 2020
Posts
92
Reaction score
64
Location
Elk Grove, California
Car(s)
2020 GR Supra , 2006 Z4M Roadster, Accord 15 v6 - 6, Mini S 2020.
  • Thread starter
  • Thread Starter
  • #4
What’re you using to log with?
I am using BootMod3, since it's the tool I use for the Tune. There is also MHD and JB4 I think.

Does the box make have a good seal? I saw a picture or two that looked kinda questionable where air may get in from the engine compartment.

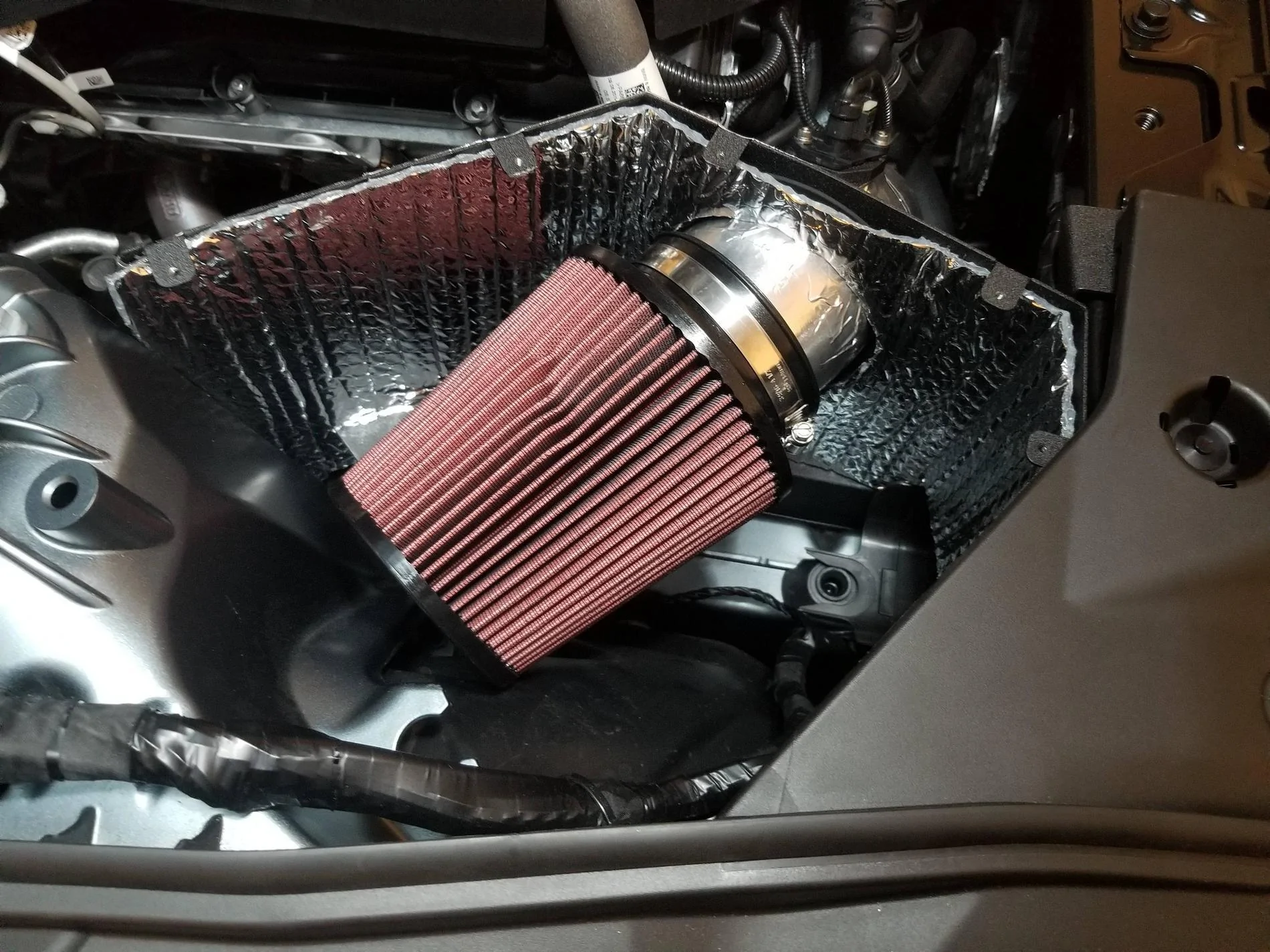

It's ok, however I went further and insulated everything:



And I got the results. I did the same route, tried to drive as similar as possible, starting above 100°F IAT:



Sorry for mixing units, ambient temp was 10~11 °C (about 50 °F), and IAT are in Fahrenheit. So it seems that the Stock Airbox is doing a great job for temperature. I tried to do the best I could to have the most similar results, but sometimes a red light or a car could change it. Still I think it's pretty conclusive, so I kept the stock Airbox, I may sell the MST.

It's a great product, sounds awesome but really I rather prefer low IAT than sound.

Here the runs:

Stock: http://www.bootmod3.net/log?id=5e3fc73ed10b436fd9d3fdea
MST No Cap: http://www.bootmod3.net/log?id=5e3fa8a2d10b436fd9d3fdb5
MST Full Cap: http://www.bootmod3.net/log?id=5e3fae40d10b436fd9d3fdba


Extreme Power House

Well-Known Member
Gold Sponsor
First Name
Mike
Joined
Nov 7, 2019
Posts
392
Reaction score
176
Location
Las Vegas
Website
x-ph.com
Car(s)
18 BMW M4, 13 Mustang GT
Hi,

I am doing some experiments with the Intake, I bought the MST CAI and it sounds great, however what I see is that there is an increse in the IAT. With the stock air box was about 85°F driving and 95°F at a stop on idle. Now with the CAI is about 95°F driving and up to 110°F on idle... at 65° ambient temp both cases.

For all the people logging, could you please post your IAT and ambient temperatures to compare please?
How about when you do a pull?


digicidal

Well-Known Member
Joined
Jan 13, 2020
Posts
248
Reaction score
214
Location
Las Vegas, NV
Car(s)
2020 Supra, 2020 RX350, 2007 4Runner
I wonder if the beautiful but ridiculously expensive Eventuri intake would be much better. I would think not worse but I wonder if any better (looks notwithstanding of course).


Kiketech

Well-Known Member
Joined
Nov 25, 2019
Posts
50
Reaction score
28
Location
PR
Car(s)
MKV Supra
How about when you do a pull?
yes, same Q

for my stand my logs say that with the MST at WOT the IAT drop a little more than with the stock one... didn’t do any logs at idle, honestly is not that important :)


Extreme Power House

Well-Known Member
Gold Sponsor
First Name
Mike
Joined
Nov 7, 2019
Posts
392
Reaction score
176
Location
Las Vegas
Website
x-ph.com
Car(s)
18 BMW M4, 13 Mustang GT
Does the stock ecu or mhd or bm3 have IAT vs Ignition compensation tables?
Yes both can adjust ignition timing.

Basically the higher the IAT, the less ignition The ecu runs. Are they adjustable as well?
You are partially correct. Meaning what you said is only true after a certain temp set by the ECU, thats why i asked for a log during a pull.

You will notice that if temps are in the 90s the ECU will not pull timing. It will do so if temps are in the 130s

In OP's case, i highly doubt the intake is causing any power reduction. If anything the car will be making more power due to the higher air flow.


TreyE

Well-Known Member
First Name
Trey
Joined
Nov 28, 2019
Posts
63
Reaction score
51
Location
Tampa
Car(s)
2020 Supra GR
Came here to post about this, glad I came across it I just did some investigating myself with data logs using MHD. Car is catless downpipe, MHD Stg 2 E30 OTS tune. Data speaks for itself, I'm going to eventually add/apply more heat shielding to back of SRD heat shield to try and help as well, maybe to piping too.

These logs were done during a pull on the highway, 3rd-5th in sport mode.


Here is link to SRD Intake.

Here is link to Verus Heatshield, I sent this data to them as well.

Here is SRD Intake installed:


Here is the Verus Heatshield installed:


First I logged with stock airbox. Here is link to whole log, go to third/last log - this was taken on the highway. I attached ambient temps as well. Peak charge temps-312*. Peak IAT 126*.
See below:
Stock Intake - Stg 2 MHD - E30.png


Then I installed the SRD Intake and did a pull as well. Of course ambient temps rose a bit but still huge difference/rise. Here is a link to the log, go to third/last log - also taken on highway. Peak charge temp-370*. Peak IAT-142*.
See below:
SRD Intake Cone - NO Verus Heatshield - Stg 2 E30.png


Lastly, a few days later I installed the Verus Heatshield on turbo. Install was very easy. Here is a link to the log, only made one so the one it loads is correct. Peak charge temp-282*. Peak IAT-115*.
See below:
SRD Intake Cone - Verus Heatshield - Stg 2 E30.png

OP
Camus

Camus

Well-Known Member
First Name
Daniel.
Joined
Jan 16, 2020
Posts
92
Reaction score
64
Location
Elk Grove, California
Car(s)
2020 GR Supra , 2006 Z4M Roadster, Accord 15 v6 - 6, Mini S 2020.
  • Thread starter
  • Thread Starter
  • #12
How about when you do a pull?
Actually on the same logs I have some pulls, if we plot vehicle speed and IAT we can see that,

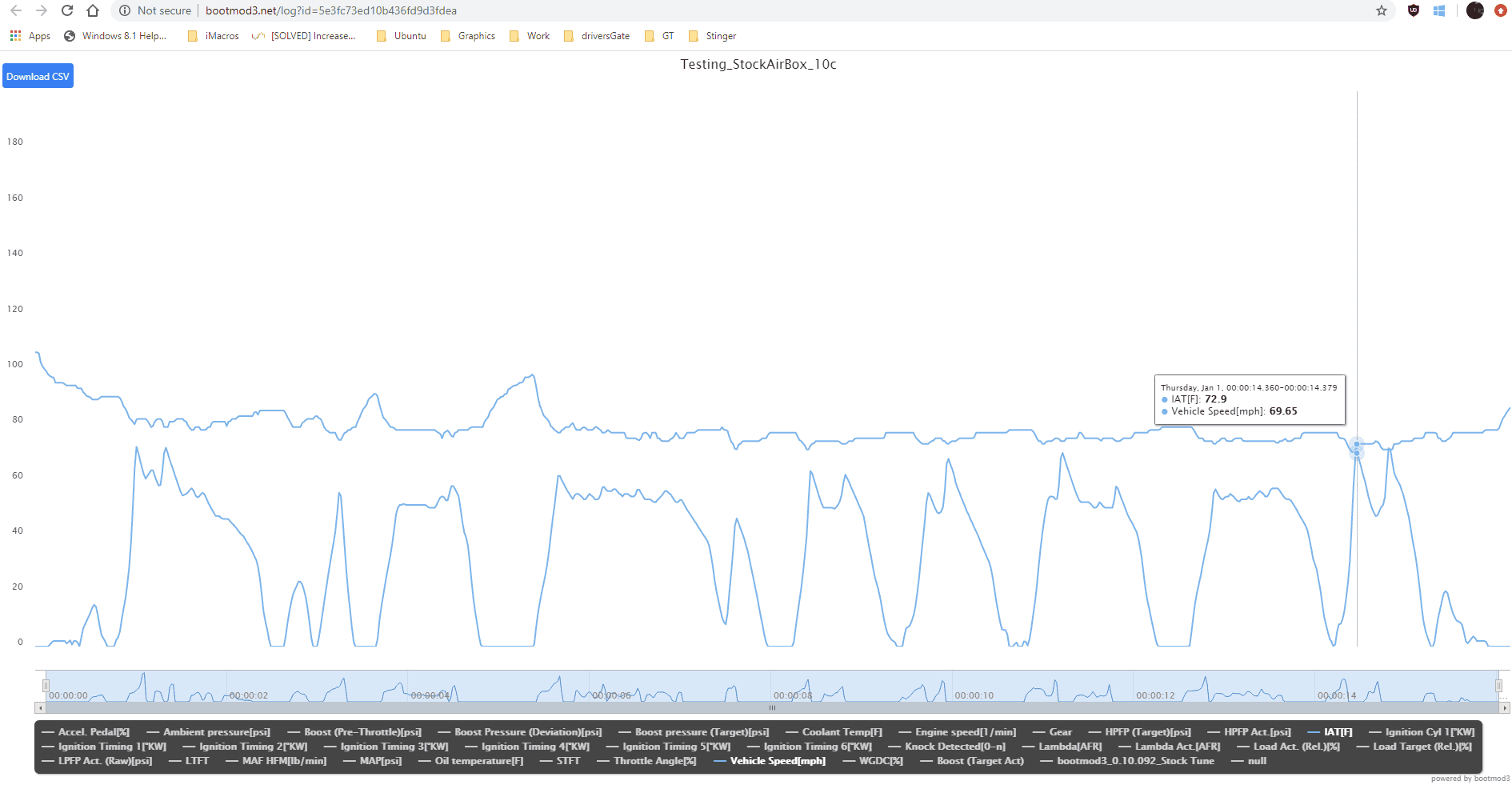

For the Stock Airbox, in the last pulls I was able to get down to 72.9 °F:

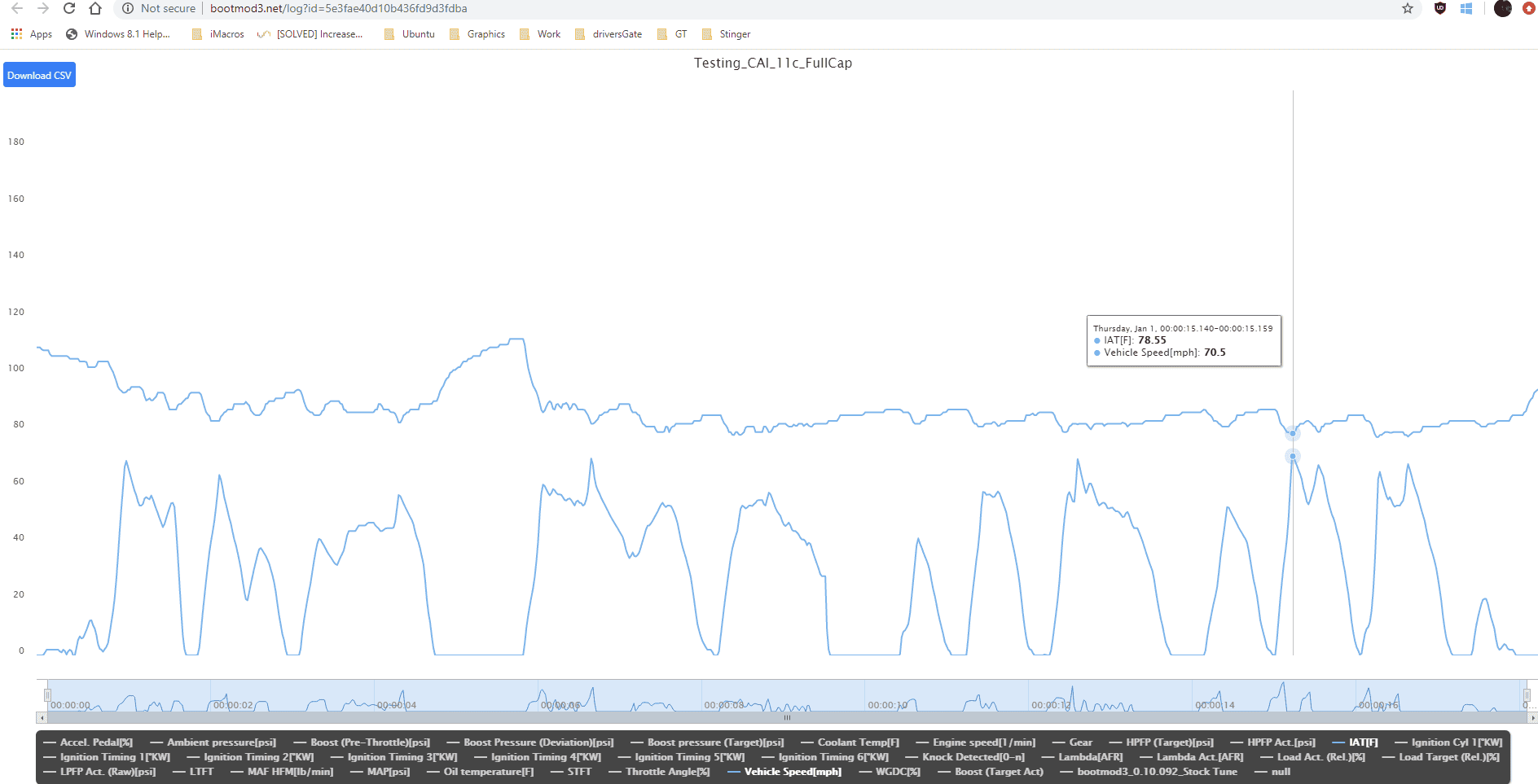

And with the CAI the lowest I was able to get the IAT down on the last pulls was 78.55 °F:



So even in the pulls it gets lower temperature. As for power I don't know, I may need to bring the car to the dyno to know for sure, because this is only temperature.

Came here to post about this, glad I came across it I just did some investigating myself with data logs using MHD. Car is catless downpipe, MHD Stg 2 E30 OTS tune. Data speaks for itself, I'm going to eventually add/apply more heat shielding to back of SRD heat shield to try and help as well, maybe to piping too.

These logs were done during a pull on the highway, 3rd-5th in sport mode.


Here is link to SRD Intake.

Here is link to Verus Heatshield, I sent this data to them as well.

Here is SRD Intake installed:


Here is the Verus Heatshield installed:


First I logged with stock airbox. Here is link to whole log, go to third/last log - this was taken on the highway. I attached ambient temps as well. Peak charge temps-312*. Peak IAT 126*.
See below:
Stock Intake - Stg 2 MHD - E30.png


Then I installed the SRD Intake and did a pull as well. Of course ambient temps rose a bit but still huge difference/rise. Here is a link to the log, go to third/last log - also taken on highway. Peak charge temp-370*. Peak IAT-142*.
See below:
SRD Intake Cone - NO Verus Heatshield - Stg 2 E30.png


Lastly, a few days later I installed the Verus Heatshield on turbo. Install was very easy. Here is a link to the log, only made one so the one it loads is correct. Peak charge temp-282*. Peak IAT-115*.
See below:
SRD Intake Cone - Verus Heatshield - Stg 2 E30.png
That heatshield is making a huge the difference IMO, I will order one before selling the MST just to test again. Also I am not sure if using the reflective insulation is really helping, here my logic:

The insulator will reflect the high radiance from the turbo and the downpipe to some degree, but, once the temperature arose in the filter area, the insulator will keep the filter area warm, since that is its function, so I don't know, maybe someone with a better understanding of thermodynamics could explain better, my expertise is on programming, not physics, but I think a heatshield like the stock one or the aftermarket from Verus would make a real difference, it will reflect the radiance and keep it in the turbo area and it won't keep the temp in the filter area, since is not really an insulator like the reflective one.

Feel free to comment. Thanks @TreyE for the data points, so your info confirm that using a CAI, by itself will increase the IAT, but a CAI plus a heatshield will keep it down even better than stock. I'll order one and repeat the experiments once more. As for power I'll try to schedule some runs next month.


Extreme Power House

Well-Known Member
Gold Sponsor
First Name
Mike
Joined
Nov 7, 2019
Posts
392
Reaction score
176
Location
Las Vegas
Website
x-ph.com
Car(s)
18 BMW M4, 13 Mustang GT
Actually on the same logs I have some pulls, if we plot vehicle speed and IAT we can see that,

For the Stock Airbox, in the last pulls I was able to get down to 72.9 °F:



And with the CAI the lowest I was able to get the IAT down on the last pulls was 78.55 °F:



So even in the pulls it gets lower temperature. As for power I don't know, I may need to bring the car to the dyno to know for sure, because this is only temperature.
6 degree difference does not cause any power loss

. Your car is making more power with the MST intake vs stock due to the higher air flow

OP
Camus

Camus

Well-Known Member
First Name
Daniel.
Joined
Jan 16, 2020
Posts
92
Reaction score
64
Location
Elk Grove, California
Car(s)
2020 GR Supra , 2006 Z4M Roadster, Accord 15 v6 - 6, Mini S 2020.
  • Thread starter
  • Thread Starter
  • #14
6 degree difference does not cause any power loss

. Your car is making more power with the MST intake vs stock due to the higher air flow
It could be, the MST had a dyno sheet. I'll wait for the heatshield to install it again. I know that 7 degrees aren't that much, but this was at 10°C not the 34°C of the summer, let's see.


TreyE

Well-Known Member
First Name
Trey
Joined
Nov 28, 2019
Posts
63
Reaction score
51
Location
Tampa
Car(s)
2020 Supra GR
I have meth kit at home as well and will be installing that and recording data to compare.
