This is getting me excited... tadda thanks for sharing I think I will give this a crack as well.

Kiwi Greg: Where did you get the stuff this side of the world. I am looking at jaycar for the speaker ports and damping material. Not sure where to pick up the foam or speaker mesh (might just try using speaker grille cloth instead).
Sponsored



Kiwi Greg

Well-Known Member
First Name
Greg
Joined
Nov 28, 2019
Threads
7
Messages
405
Reaction score
421
Location
New Zealand
Website
terminatorproducts.co.nz
Car(s)
2020 Supra, 2021 GR Yaris, 2022 GR86
This is getting me excited... tadda thanks for sharing I think I will give this a crack as well.

Kiwi Greg: Where did you get the stuff this side of the world. I am looking at jaycar for the speaker ports and damping material. Not sure where to pick up the foam or speaker mesh (might just try using speaker grille cloth instead).
I got the damping from J-Car, https://www.jaycar.co.nz/650gsm-acrylic-speaker-dampening-material/p/AX3694

Ports from Element 14 https://nz.element14.com/penn-elcom...ube-2-diameter/dp/2808930?CMP=i-55c5-00001621

Foam from Mollies https://www.mollies.nz/product/1465008 should plenty of places that have 2" foam over there.

You should have the first two over there, from the links you can see the sizes & how much I had left, there is way too much damping

I used a pencil holder from the likes of K-Mart for the mesh, I just cut it up & it was black :)


Visualabstrakt

Active Member
First Name
Joel
Joined
Aug 18, 2019
Threads
2
Messages
41
Reaction score
16
Location
Maryland
Car(s)
2020 Supra
This idea is awesome and definitely a good first step in improving the quality of sound. Would you say this option would work well in conjunction with the other stock component replacement options outside of going full custom?

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Threads
24
Messages
1,251
Reaction score
2,157
Location
Arizona
Car(s)
2023 C8 Corvette Z51 2LT Coupe
Vehicle Showcase
1
This idea is awesome and definitely a good first step in improving the quality of sound. Would you say this option would work well in conjunction with the other stock component replacement options outside of going full custom?
I would definitely consider doing this before installing a direct replacement subwoofer or your still going to be left with the same vibrational noise distortions and rattles...

I think what you'll find is that after doing this the OE Harmon Kardon speakers are actually quite decent...

Last edited:

Reppunkamui

Well-Known Member
Joined
Jan 13, 2020
Threads
6
Messages
164
Reaction score
129
Location
Australia
Car(s)
Toyota Supra 2020, Toyota Supra 1994, BMW 135i M-Sport,
Ok, committed to getting the items for this project now. Going to use speaker cloth rather than mesh for the holes, hopefully it will be ok with the air pressure.

Just a question on the port length (1 inch), is there a specific reason for the length? Would it matter if it is longer? I understand the audio inclined (not me) have calculations they do to determine optimal port size and lengths for speakers...

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Threads
24
Messages
1,251
Reaction score
2,157
Location
Arizona
Car(s)
2023 C8 Corvette Z51 2LT Coupe
Vehicle Showcase
1
Ok, committed to getting the items for this project now. Going to use speaker cloth rather than mesh for the holes, hopefully it will be ok with the air pressure.

Just a question on the port length (1 inch), is there a specific reason for the length? Would it matter if it is longer? I understand the audio inclined (not me) have calculations they do to determine optimal port size and lengths for speakers...
Not sure how well grill cloth will work as it's fairly dense..There is quite a bit of air pressure released during the low bass notes and you want to make it as least restrictive as possible...

With respect to port length, I wouldn't go any longer (and actually I would prefer a bit shorter) because you would most likely capture less exhaust air and increase rear plate vibrations due to the geometry differences between the 3 elongated ports and the 2" circular port (Side note: the cross sectional areas between the combined 3 elongated ports and the 2" circular port are similar)...Also keep in mind that the space between the rear cover plate and 3 elongated exhaust ports is less than 2"...Hope that all makes sense...

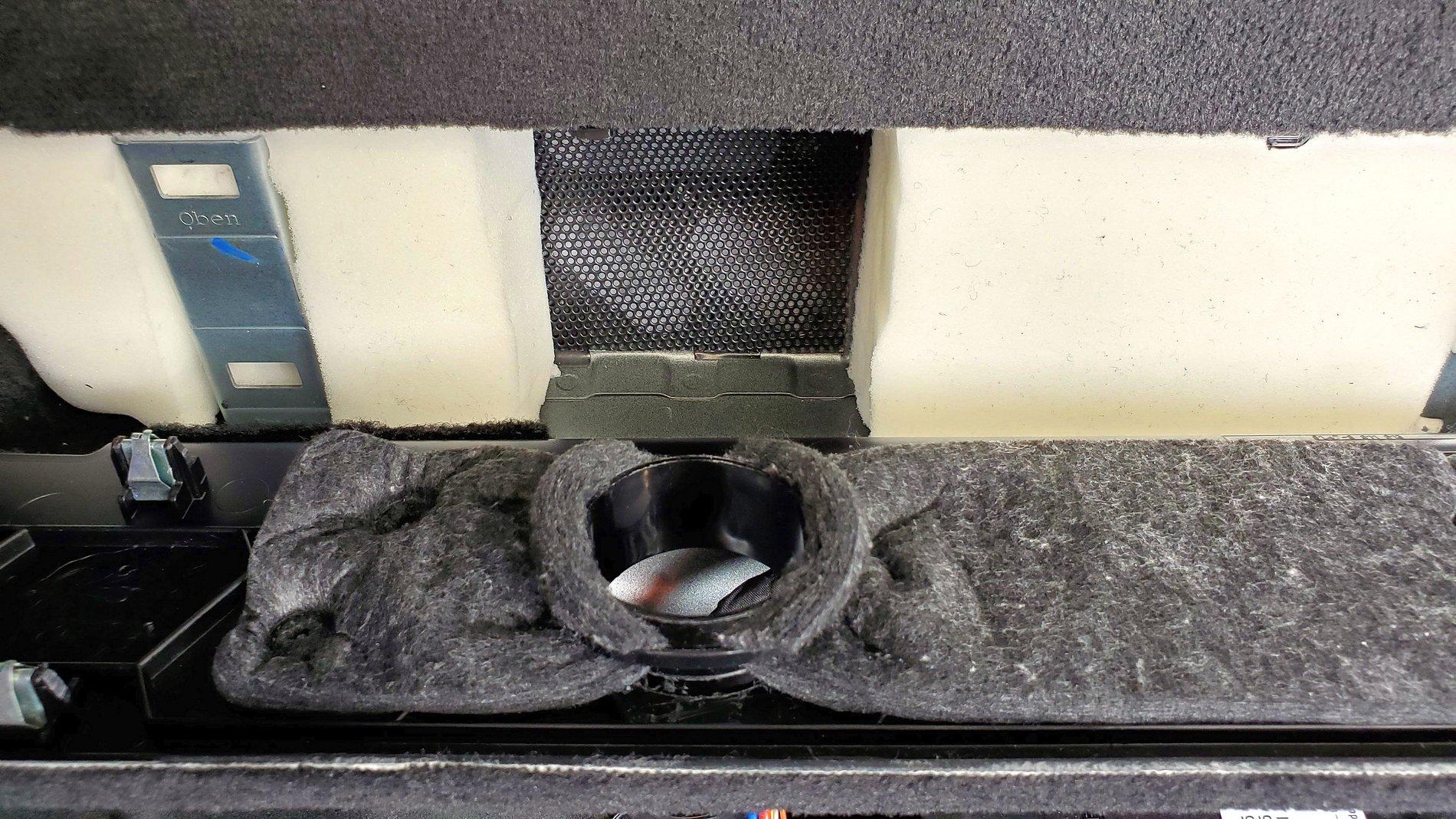

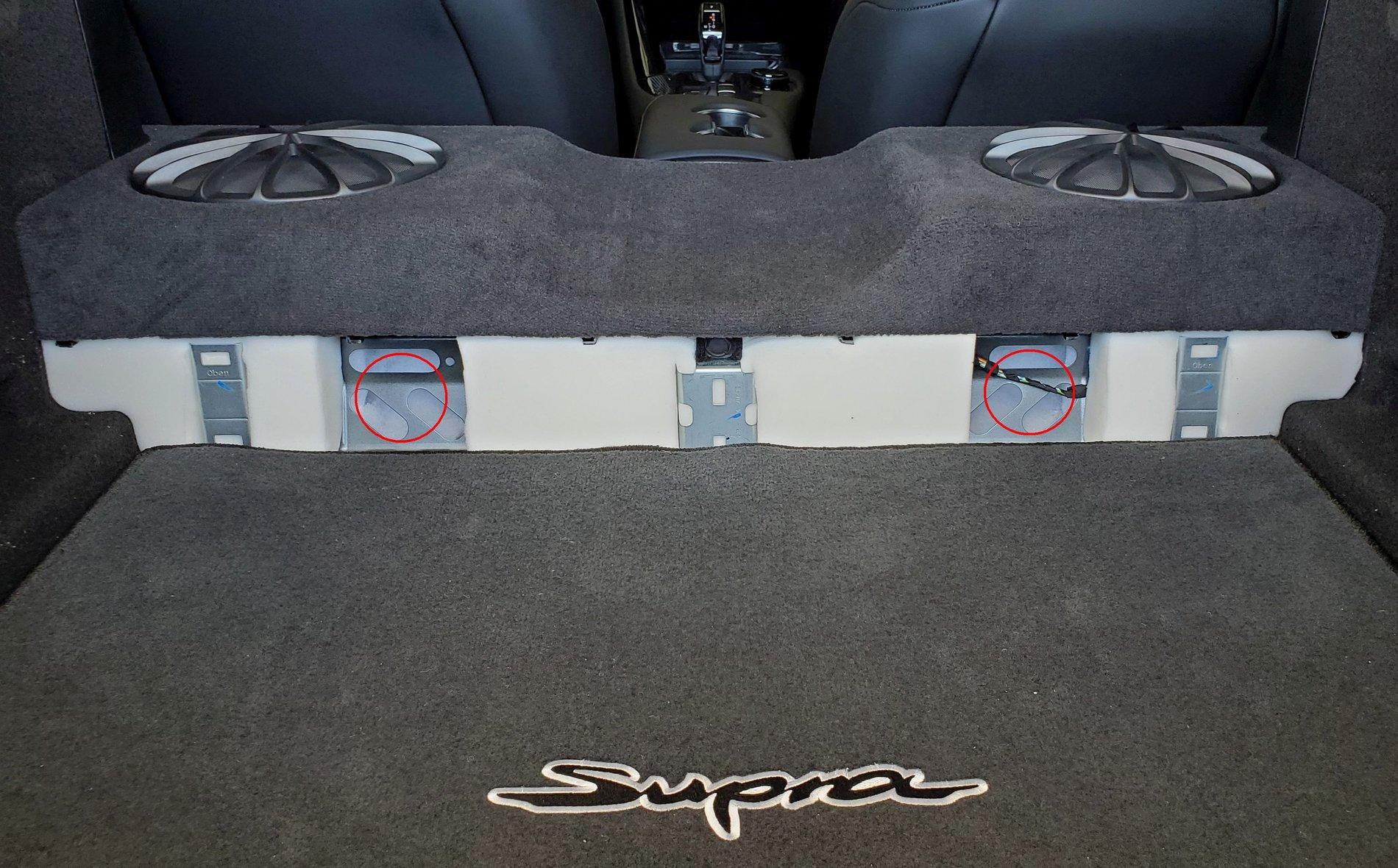

subwoofer 6 2 inch foam insulation with ports.jpg
