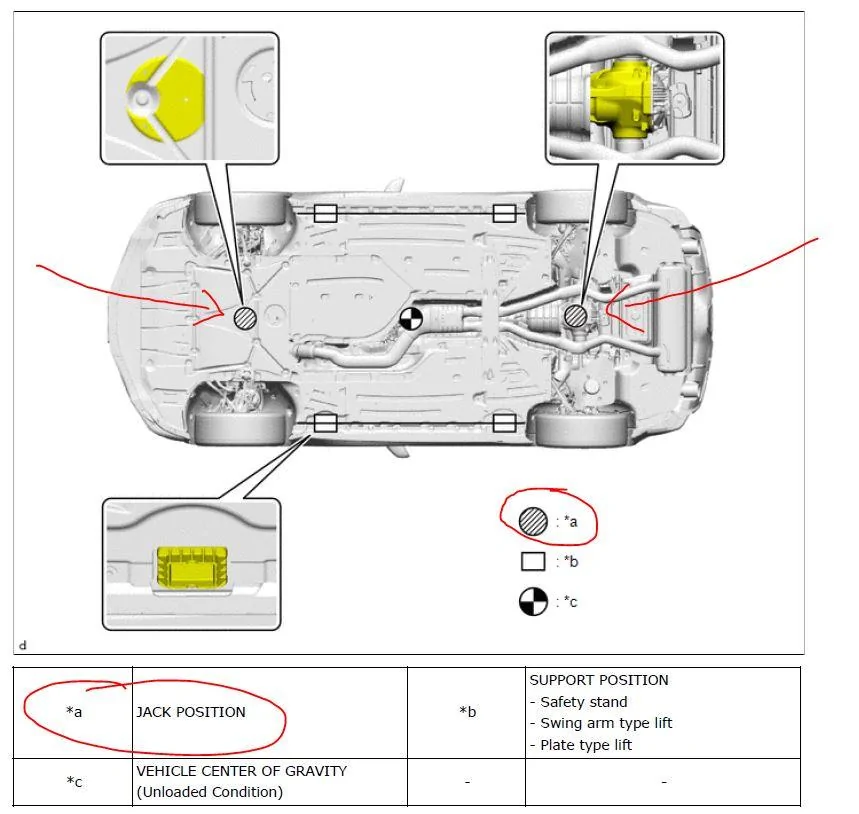

    Seen a few people asking about lifting points for this car (and someone saying you shouldn't jack from the diff), so just to set things straight here are the official jacking points from the Toyota workshop manual.

    Full manual can be downloaded here: https://gofile.io/?c=ncDuuU

    So basically:
    • Jack from the diff at the rear and from the highlighted circular area at the front.
    • For a 2 post lift, use the obvious plastic pads at the sides of the car.
    • For axle stands - once you've jacked it up using the diff etc, place the axle stands under the plastic pads at the side of the car. Note that if you don't have the proper BMW pad adapter you might damage the plastic a bit with your axle stands (I know I did on previous BMWs). If you want to buy the adapter just search online for something like "BMW Axle Stand Pad".

    jacking points.JPG

    EDIT: Here's some photos of what both the jacking points actually look like.

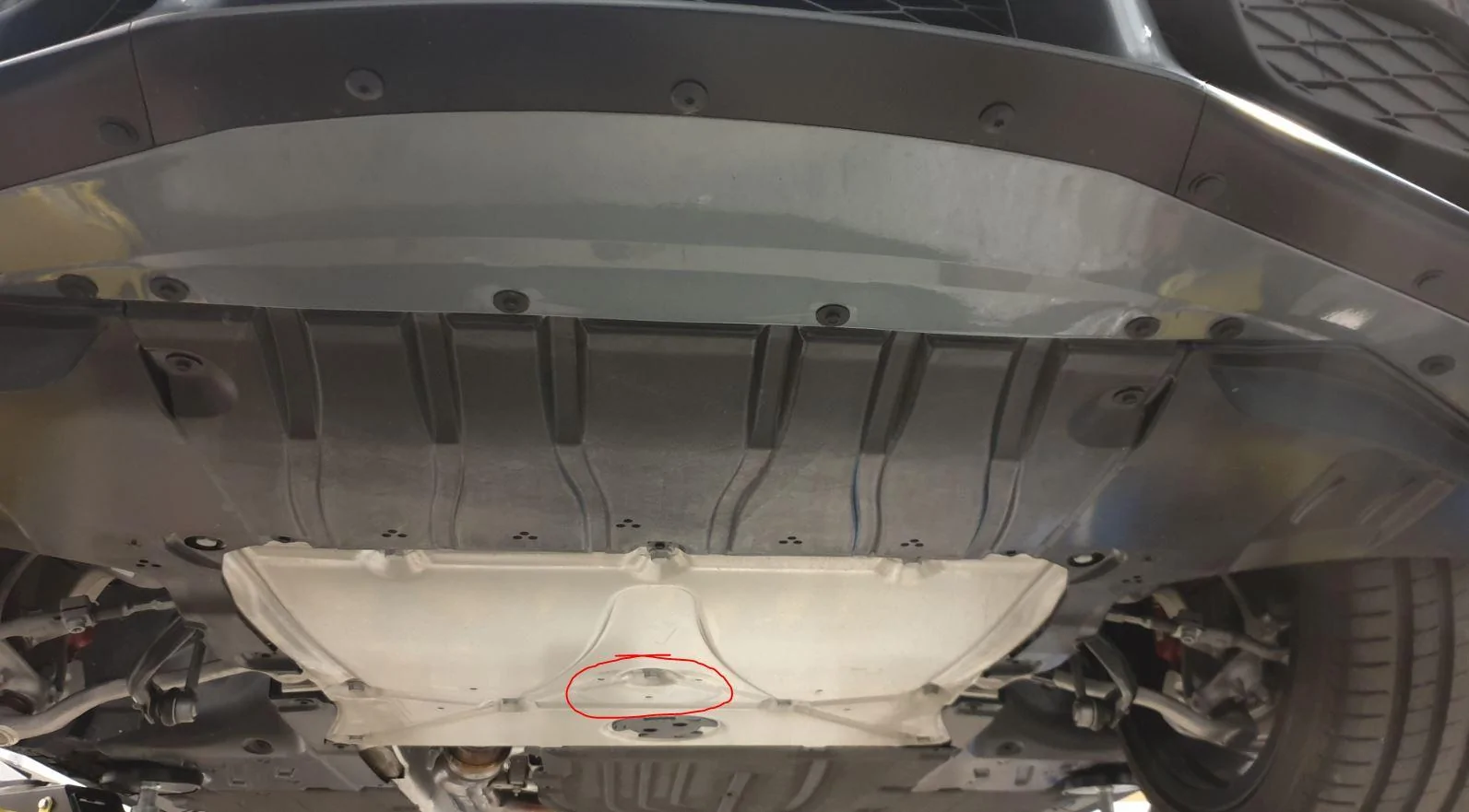

    FRONT

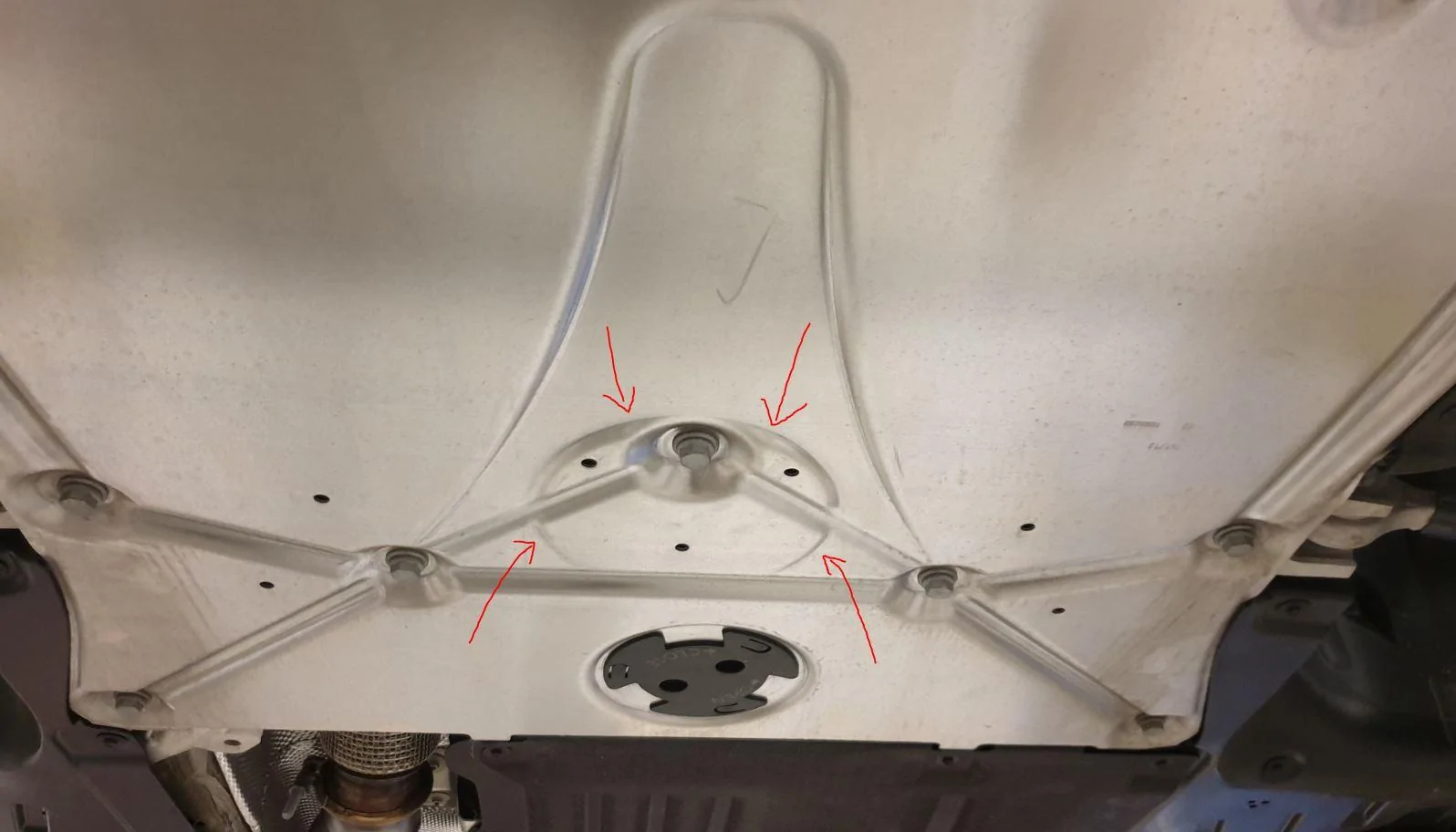

    When the car is up in the air its easy to see this big circular groove that indicated where you should jack from, but when you're laying on the ground looking under it, its not too easy to see.


    REAR

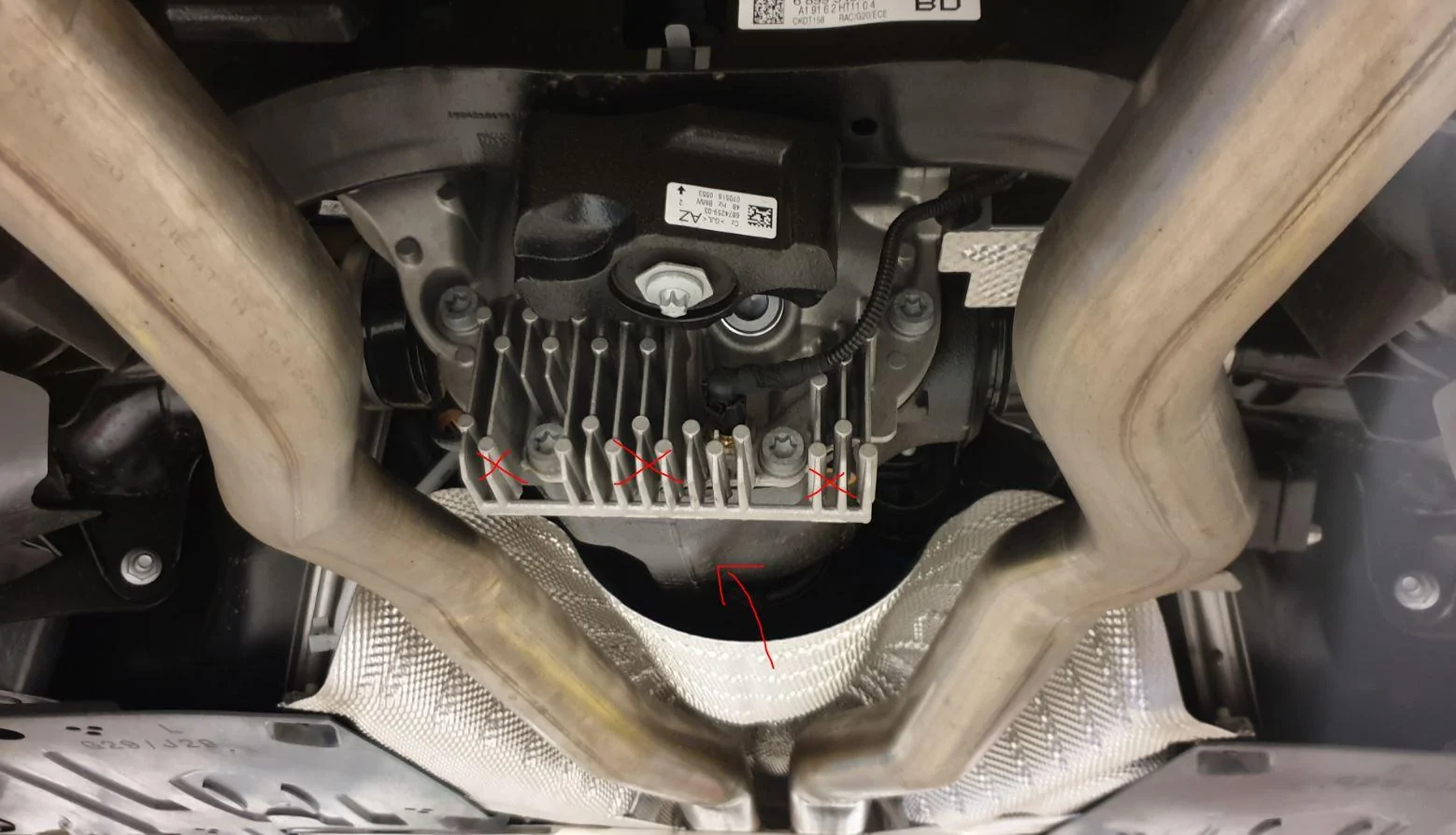

    Jack from the diff, but not from directly on the fins of the diff cover. Basically just position the jack right behind the fins (not on them) and you'll be in the right spot.

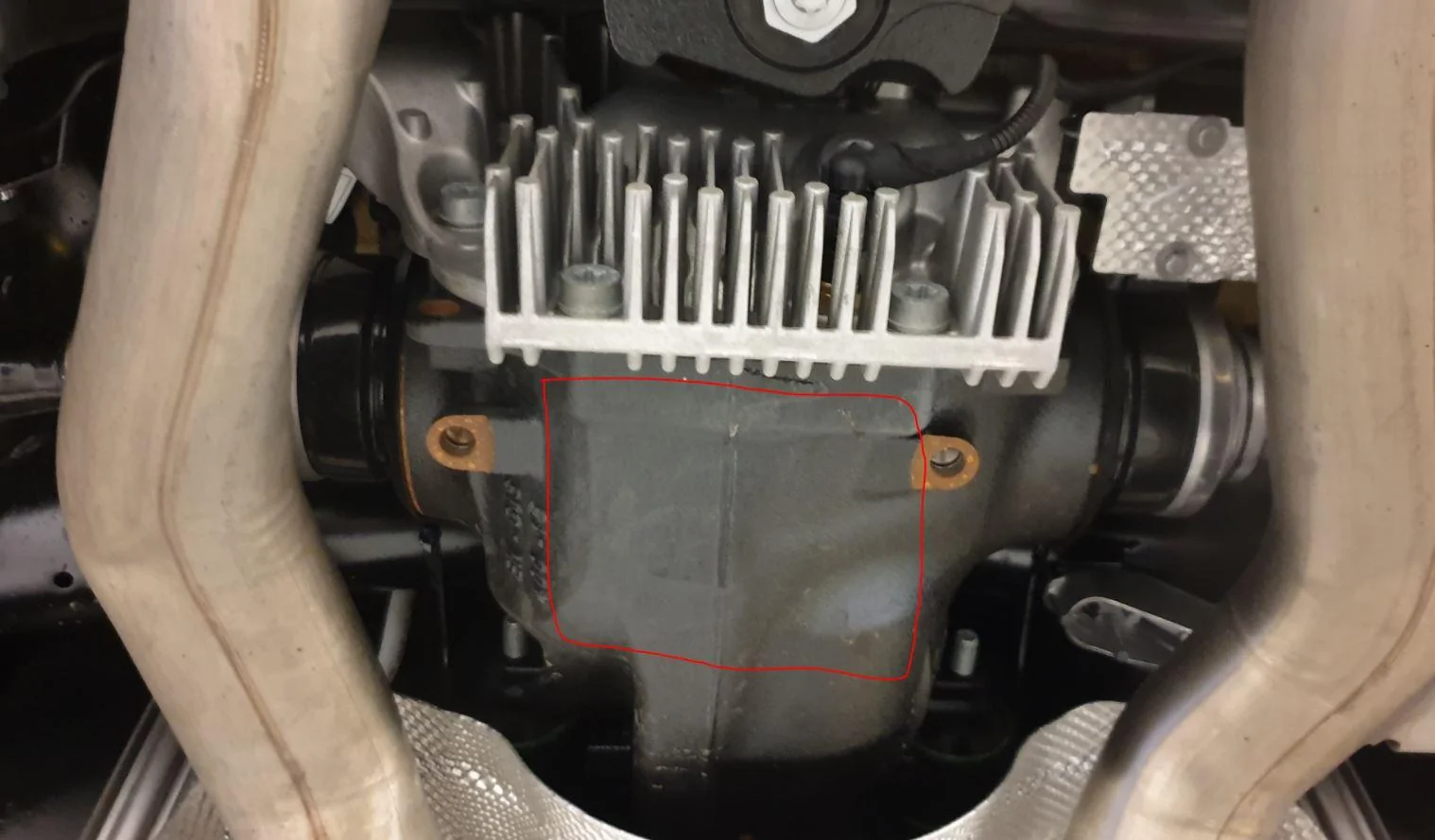

    Basically anywhere inside this highlighted area:


    HATED1, Mr. Kurtz, LS3Twins and 3 others like this.
  2. s219

    s219 Well-Known Member

    First Name:
    Doc
    Car(s):
    BMW X3 M40i, BMW M2 Comp, Honda S2000
    Joined:
    Jun 22, 2019
    Location:
    Virginia USA
    Posts:
    405
    Liked:
    436
    #2 Sep 30, 2019
    The key with the diff is to stay away from the fins, the seam, and the gasket area. These pictures clearly show that. In practice, a lot of finned diffs get damaged because people don't know any better or don't pay attention.

    ChrisD likes this.
  3. OP
    OP
    ChrisD

    ChrisD Well-Known Member

    First Name:
    Chris
    Car(s):
    A90 Supra, Twin Turbo 350Z, NA 370Z
    Joined:
    Sep 18, 2019
    Location:
    UK
    Posts:
    61
    Liked:
    58
    Home Page:
    #3 Oct 2, 2019
    yeah and it doesn't help that its actually quite awkward to see past the fins when you're jacking it from the rear. I took some photos today while I had the car up on the lift so will update the original post in a minute to add some pics and highlight the correct areas

  4. s219

    s219 Well-Known Member

    First Name:
    Doc
    Car(s):
    BMW X3 M40i, BMW M2 Comp, Honda S2000
    Joined:
    Jun 22, 2019
    Location:
    Virginia USA
    Posts:
    405
    Liked:
    436
    #4 Oct 3, 2019
    That would be great.

  5. OP
    OP
    ChrisD

    ChrisD Well-Known Member

    First Name:
    Chris
    Car(s):
    A90 Supra, Twin Turbo 350Z, NA 370Z
    Joined:
    Sep 18, 2019
    Location:
    UK
    Posts:
    61
    Liked:
    58
    Home Page:
    #5 Oct 3, 2019
    I've already updated the original post with plenty of photos. Do you not see them?

  6. s219

    s219 Well-Known Member

    First Name:
    Doc
    Car(s):
    BMW X3 M40i, BMW M2 Comp, Honda S2000
    Joined:
    Jun 22, 2019
    Location:
    Virginia USA
    Posts:
    405
    Liked:
    436
    #6 Oct 3, 2019
    I do now, thanks for posting — best pics of the diff I have seen so far.

    ChrisD likes this.
  7. A90 Zero

    A90 Zero Active Member

    First Name:
    Ray
    Car(s):
    BRZ
    Joined:
    Jun 17, 2019
    Location:
    15601
    Posts:
    38
    Liked:
    9
    #7 Oct 4, 2019
    Does anybody make a pad/adapter to use at the center front axle lifting point?

    084runnerltd likes this.
  8. OP
    OP
    ChrisD

    ChrisD Well-Known Member

    First Name:
    Chris
    Car(s):
    A90 Supra, Twin Turbo 350Z, NA 370Z
    Joined:
    Sep 18, 2019
    Location:
    UK
    Posts:
    61
    Liked:
    58
    Home Page:
    #8 Oct 4, 2019
    its a flat circular area and most jacks have a flat circular face that they lift with, so not sure why you'd need any kind of adapter?

  9. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,836
    Liked:
    4,372
    Occupation:
    Engineer
    #9 Oct 6, 2019

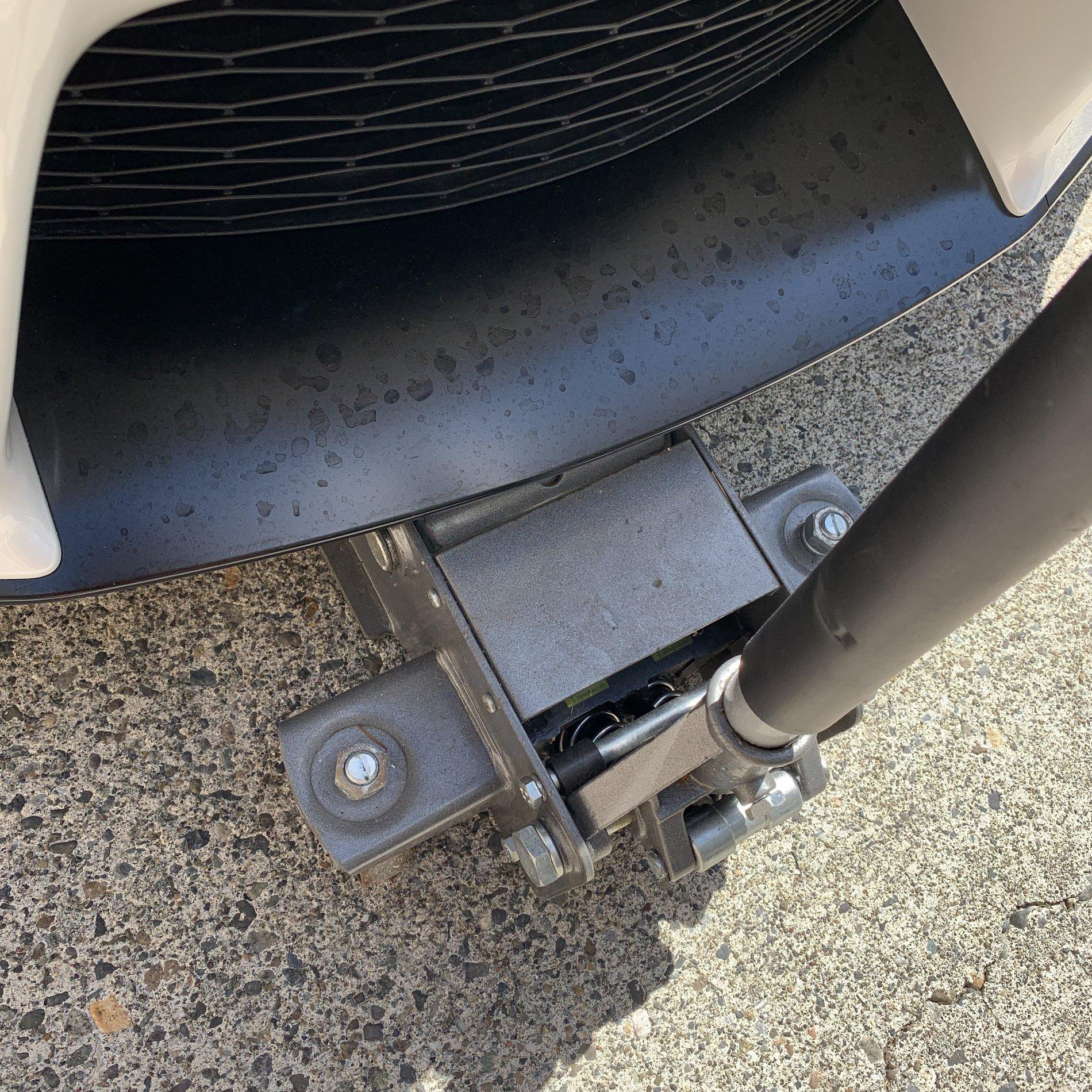

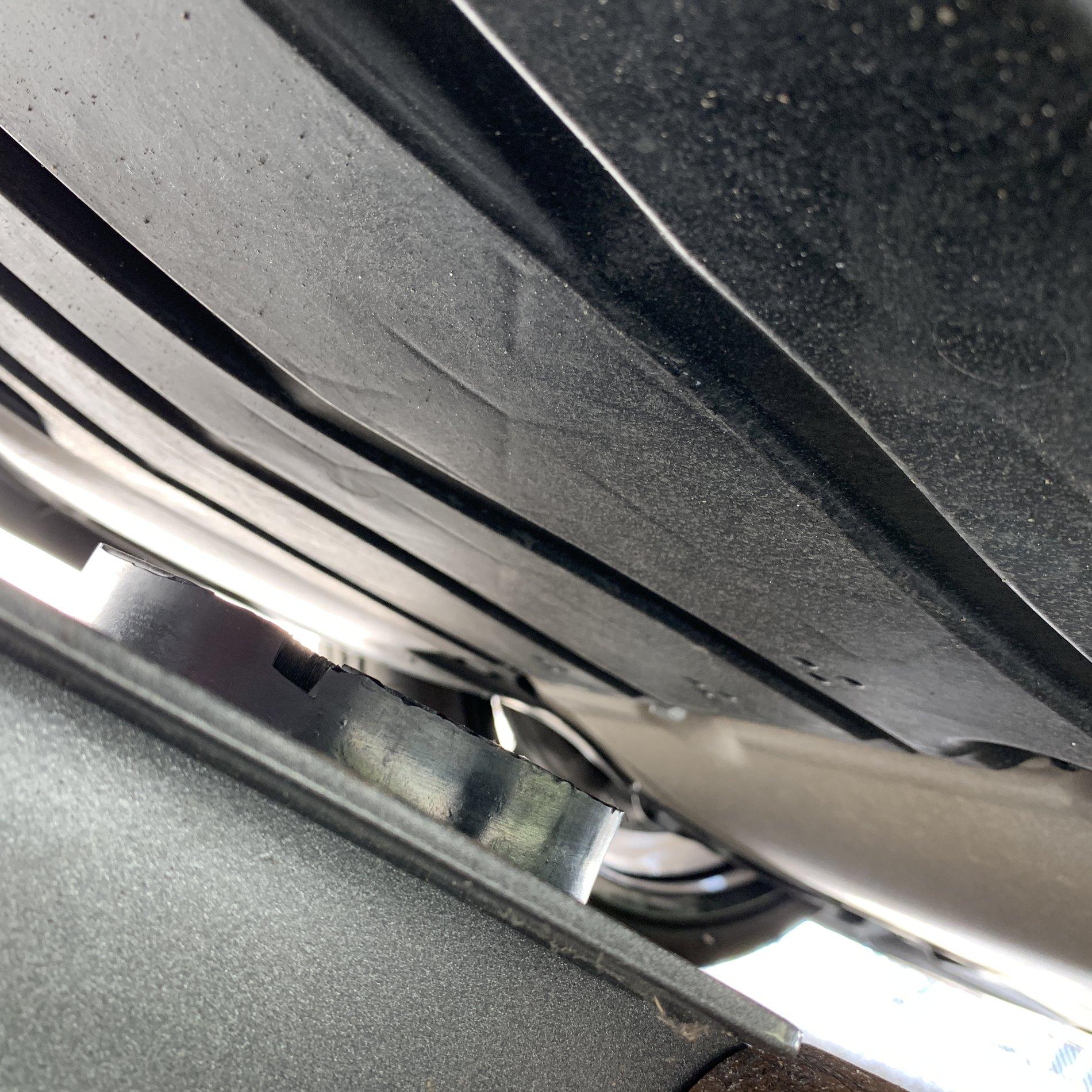

  10. devarenacn

    devarenacn Active Member

    First Name:
    Harold
    Car(s):
    Scion FRS, B9 Audi S4, MK7.5 Golf GTI, GR Supra
    Joined:
    Aug 29, 2019
    Location:
    Morrisville, NC
    Posts:
    29
    Liked:
    13
    #10 Oct 7, 2019
    I used the rubber plucks that I bought with the QuickJack, works fine

  11. CarGuy11

    CarGuy11 Well-Known Member

    Car(s):
    2020 Supra Prem/Assist Blue, 2016 C7 Corvette Z51, 2015 Jeep Cherokee Trailhawk
    Joined:
    Jul 10, 2019
    Location:
    Pittsburgh
    Posts:
    165
    Liked:
    82
    #11 Oct 22, 2019
    This video shows where rectangular lift points are.
