Lets talk dipsticks

[Eplejus]

Based on the numbers from this post:

https://www.supramkv.com/threads/oil-level-analysis-with-ecutek.10943/#post-182251

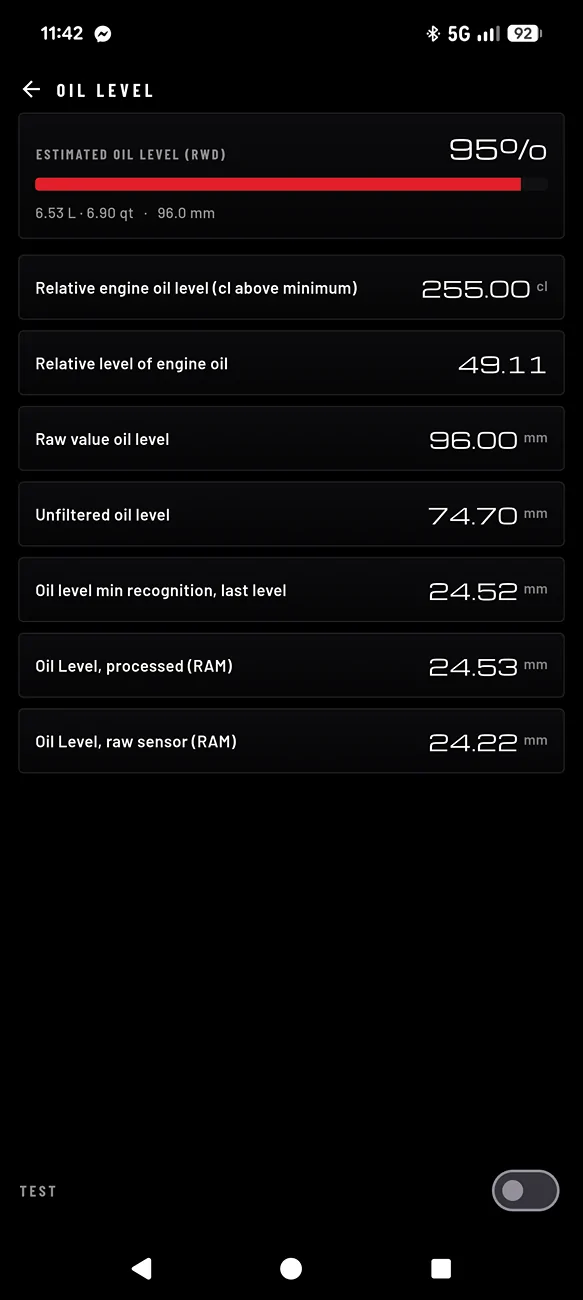

I made this chart and added the values to an app I'm working on, so I can display it as a simple percentage bar.
I'm not 100% confident in these numbers though, and would much rather have the actual values from a confirmed table.

@razorlab, is this something you could help with? I've spent hours going through BINs, HEX, A2Ls and XDFs, but I just can't seem to find the correct values.

Any help would be much appreciated!

Sponsored



[razorlab]

@razorlab, is this something you could help with? I've spent hours going through BINs, HEX, A2Ls and XDFs, but I just can't seem to find the correct values.

Any help would be much appreciated!

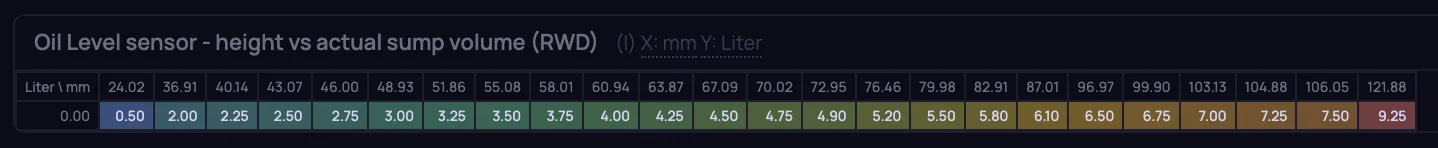

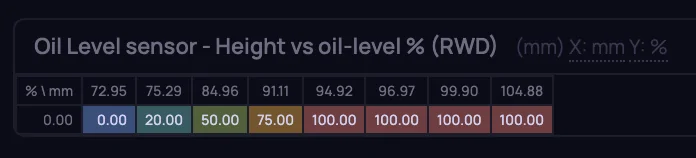

These are from a M240i RWD. I need to find them in a Supra/Z4 BIN to see if they are the same.



[Eplejus]

These are from a M240i RWD. I need to find them in a Supra/Z4 BIN to see if they are the same.

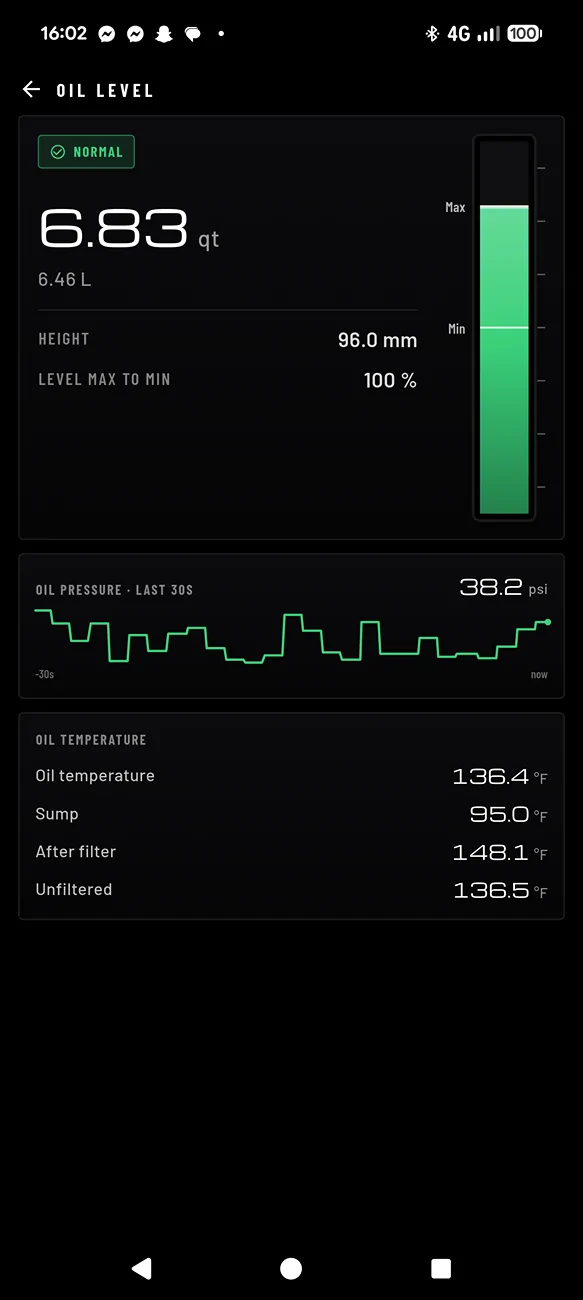

Thank you! The numbers seem to match up with the ones from the thread I linked. I can use this to make the readings a lot more accurate
