Twisted Tuning Stealth Ethanol Content Sensor Kit w/Gauge for 2020 Supra MKV

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #16

kurumi

Well-Known Member
Joined
Feb 29, 2020
Messages
255
Reaction score
137
Location
Northern Virginia
Car(s)
2020 GR Supra, 2013 Fiat 500 Abarth

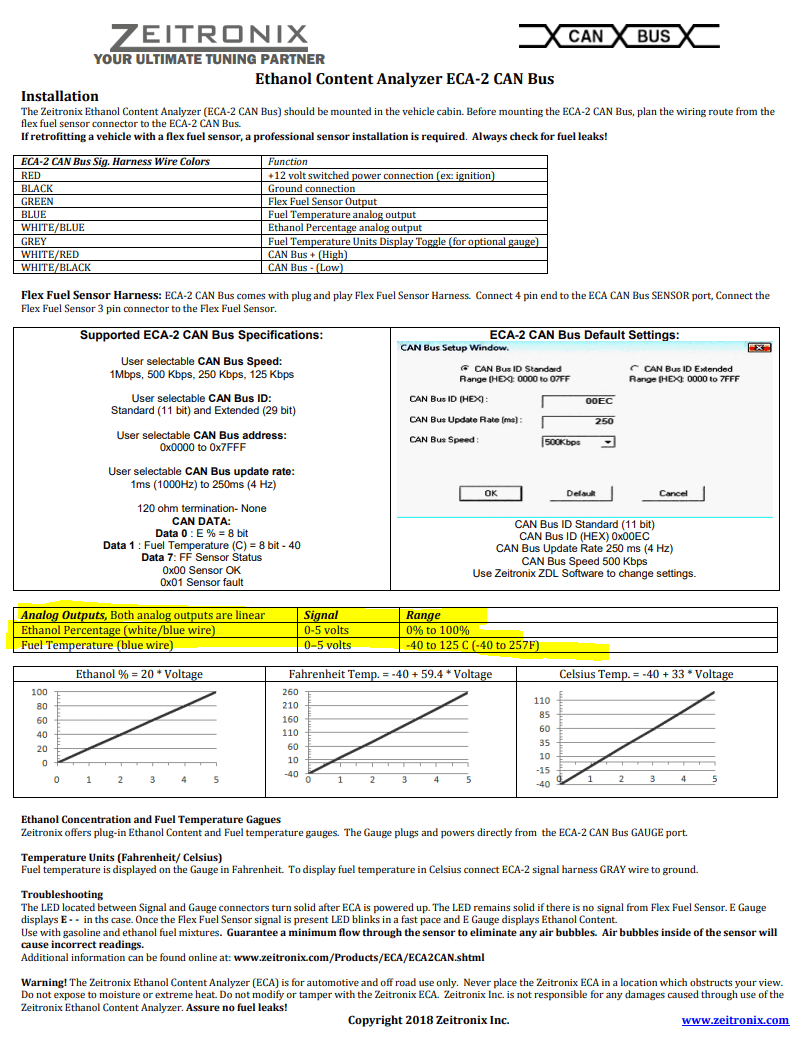

look at that link. should help.
Edit: nevermind. I'm an idiot. It's a signal connection, but now to figure that out. Thanks for giving me a sanity check.

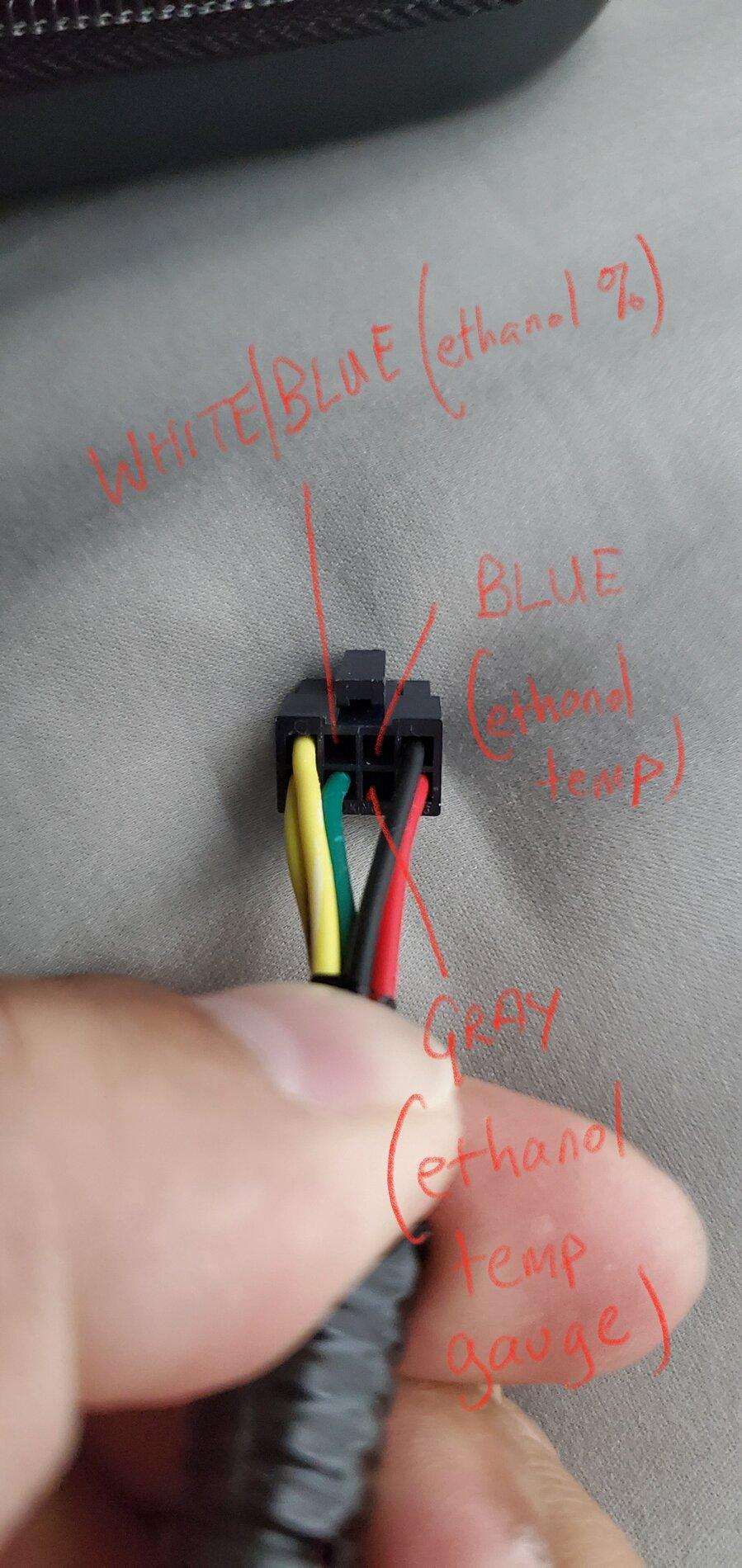

Also added, in case anyone else needed to add wiring to it.


Last edited:

Bflood

Well-Known Member
Joined
Jun 20, 2020
Messages
250
Reaction score
150
Location
Columbus OH
Car(s)
3.0 Premium
Can you link the app? Just installed the kit but can't see where to get it. Searched "tt flex" in the app store and nothing came up

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #19
OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #20

Bflood

Well-Known Member
Joined
Jun 20, 2020
Messages
250
Reaction score
150
Location
Columbus OH
Car(s)
3.0 Premium
Thanks. I kept getting "sensor err".. Took me forever to figure out the sensor wasn't plugged into the controller. :doh:

Great kit tho. Very easy to install and setup.


Bflood

Well-Known Member
Joined
Jun 20, 2020
Messages
250
Reaction score
150
Location
Columbus OH
Car(s)
3.0 Premium
Lastly, what is the pin for the module? I tried a few of the basics and no luck.

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #23
Thanks. I kept getting "sensor err".. Took me forever to figure out the sensor wasn't plugged into the controller. :doh:

Great kit tho. Very easy to install and setup.
Lastly, what is the pin for the module? I tried a few of the basics and no luck.

strange i didnt get any notification for this post but i believe we spoke via email or PM. Are you good?

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #25
Can you provide the link to download the Bluetooth application. I cannot find it on the play store.

See below, i haven't put it on Play store yet since i am still working on the look of the app.

TT Flex App v5.1


klingon

Member
Joined
Oct 15, 2020
Messages
11
Reaction score
1
Location
USA
Car(s)
10' X5Diesel (Deleted), 2020 GR Supra (stock)
Can you advise what the Bluetooth device name is or would be ?

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #27
Can you advise what the Bluetooth device name is or would be ?
BLE nano....

Do not try to pair with it. Open app, scan, and connect. Super easy.


Down167

Well-Known Member
Joined
Dec 12, 2019
Messages
62
Reaction score
25
Location
South Florida
Car(s)
2020 GR Supra
Yes indeed. Once they release their FF solution. It will. Whether they use an analog signal like N54 or Canbus like Ecutek.

It has outputs for both.
Sorry to revive this.... do you know when MHD will be releasing there FF solution?

OP
Twisted Tuning

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
869
Reaction score
1,039
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
  • Thread starter
  • Thread Starter
  • #29
