A90 Supra MKV on the dyno

VelgenWheels

Well-Known Member
Gold Sponsor
Joined
Dec 15, 2019
Posts
62
Reaction score
56
Location
Miami, FL
Car(s)
2019 Ford Raptor Ruby Red
Pump Gas 93oct numbers on our EFR9280 Supra....... 550whp on mustang dyno equates to about 615-620whp on a dynojet.

Running so nice numbers here keep up the good work.




Advertisement




KahnBB6

Well-Known Member
Joined
Aug 23, 2018
Posts
574
Reaction score
867
Location
Florida
Car(s)
'93 Lexus SC300 5-speed 2JZGTE R154 LSD
I just came across this article/video. It's not clear how much horsepower and torque this guy's MKV is pushing (I skipped the 370Z section of the video and went straight to the MKV section so maybe he said something I missed) but this is curious to me: just how strong are the MKV's rear axles and just how strong is its stock rear differential?

Even the 200mm MKIV diff and TT Automatic axles are known to be very stout out of the box aside from the limitations of the stock open diff and stock Torsen T-1 diff.

He says he replaced the rear axles with stronger ones on his MKV prior to his diff blowing out. Perhaps the diff casing itself is plenty strong but it's the differential itself that needs to be changed out for an aftermarket clutch type unit?

https://www.motor1.com/news/393910/modded-supra-breaks-drag-racing/


This second video only discusses the MKV's rear diff failure (following his drag launch under who knows how much boost) for the first five minutes.



a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
I just came across this article/video. It's not clear how much horsepower and torque this guy's MKV is pushing (I skipped the 370Z section of the video and went straight to the MKV section so maybe he said something I missed) but this is curious to me: just how strong are the MKV's rear axles and just how strong is its stock rear differential?

Even the 200mm MKIV diff and TT Automatic axles are known to be very stout out of the box aside from the limitations of the stock open diff and stock Torsen T-1 diff.

He says he replaced the rear axles with stronger ones on his MKV prior to his diff blowing out. Perhaps the diff casing itself is plenty strong but it's the differential itself that needs to be changed out for an aftermarket clutch type unit?

https://www.motor1.com/news/393910/modded-supra-breaks-drag-racing/


This second video only discusses the MKV's rear diff failure (following his drag launch under who knows how much boost) for the first five minutes.

Big turbo (G30-770), Nitrous out the whole and slicks

600whp+

Stock axles snapped, he changed them to upgraded ones at the track then it looks like the diff then gave out right after

Slicks and high torque.. Yes I'd be worried


SupraFiend

Well-Known Member
Joined
Nov 2, 2017
Posts
574
Reaction score
840
Location
Vancouver
Car(s)
5 Supras currently
Kinda funny, the 600whp/torque range is the same range where the mk2 Supras 7.5 diff (with a trutrac and upgraded axels) and axel stubs about reach their limit.


a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
Tried to do a dyno run today with a friend

2 different Supra's followed video instructions

Car does not hold gear, multiple codes after..

Tried clearing and kept getting chassis error back on both cars after a short drive

Disconnected battery and code went away

Now headlight is out of alignment :(


LS3Twins

Well-Known Member
First Name
Ryan
Joined
Aug 22, 2019
Posts
291
Reaction score
452
Location
Charlotte
Car(s)
2020 Supra 1998 E36M3 LS3 Twin Turbo
Tried to do a dyno run today with a friend

2 different Supra's followed video instructions

Car does not hold gear, multiple codes after..

Tried clearing and kept getting chassis error back on both cars after a short drive

Disconnected battery and code went away

Now headlight is out of alignment :(
Headlight is easy. There is a sensor that clips into the driver's side control arm and is probably knocked out from them strapping it down.

Are you not putting the car in manual mode on the dyno? Are you in dyno mode when on the dyno?


A70TTR

Well-Known Member
Joined
Sep 9, 2017
Posts
2,710
Reaction score
9,875
Location
Japan/EU/USA
Car(s)
ST205 GT4, JZA70, JZA70 TT-R, S210 Athlete
the issue with the mkv axles is that they are hollow... many thought they were far stronger than they actually are because the shaft diameter is fairly large, but that was assuming solid shaft.

either way, you're gonna break stuff at 600wtq+ when you're hitting that figure as fast and hard as this car.


SupraFiend

Well-Known Member
Joined
Nov 2, 2017
Posts
574
Reaction score
840
Location
Vancouver
Car(s)
5 Supras currently
Unless you know, it's a car built by a manufacturer that's known for overbuilding things, and maybe had built a few cars like this in the past, so knew enough to over build their newest version to the point it can handle 1000whp/torque from the factory. Maybe thats just a myth (legend?)...


a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
Headlight is easy. There is a sensor that clips into the driver's side control arm and is probably knocked out from them strapping it down.

Are you not putting the car in manual mode on the dyno? Are you in dyno mode when on the dyno?
Sensor is in place.. Even unplugged it and plugged back again. Still pointing upwards

Yes, dyno mode, dsc off and manual

On both cars


a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
Headlight is easy. There is a sensor that clips into the driver's side control arm and is probably knocked out from them strapping it down.

Are you not putting the car in manual mode on the dyno? Are you in dyno mode when on the dyno?

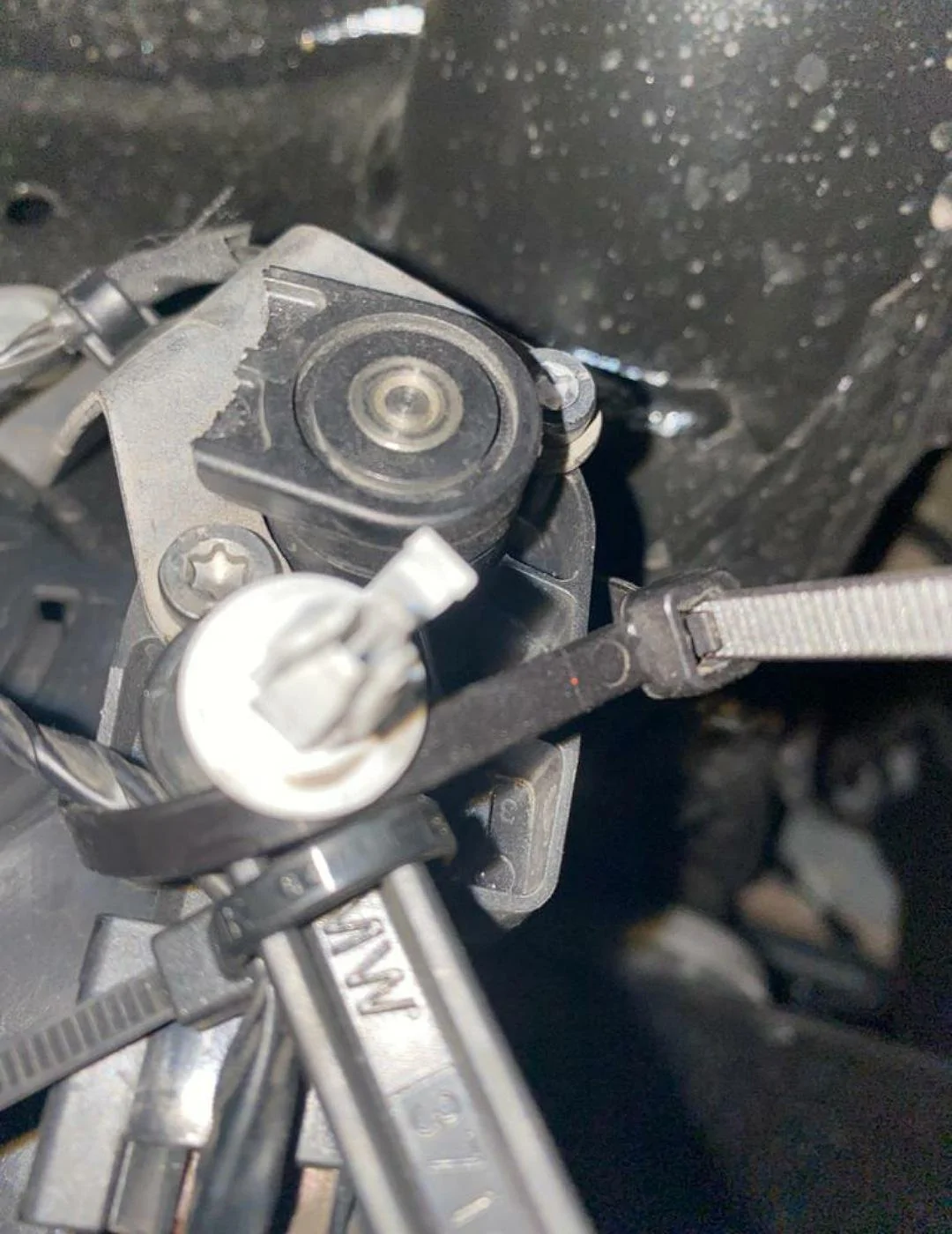

Rear headlight level senor was broken

Zipped tied it until I could order one tomorrow

No more chassis code


a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra

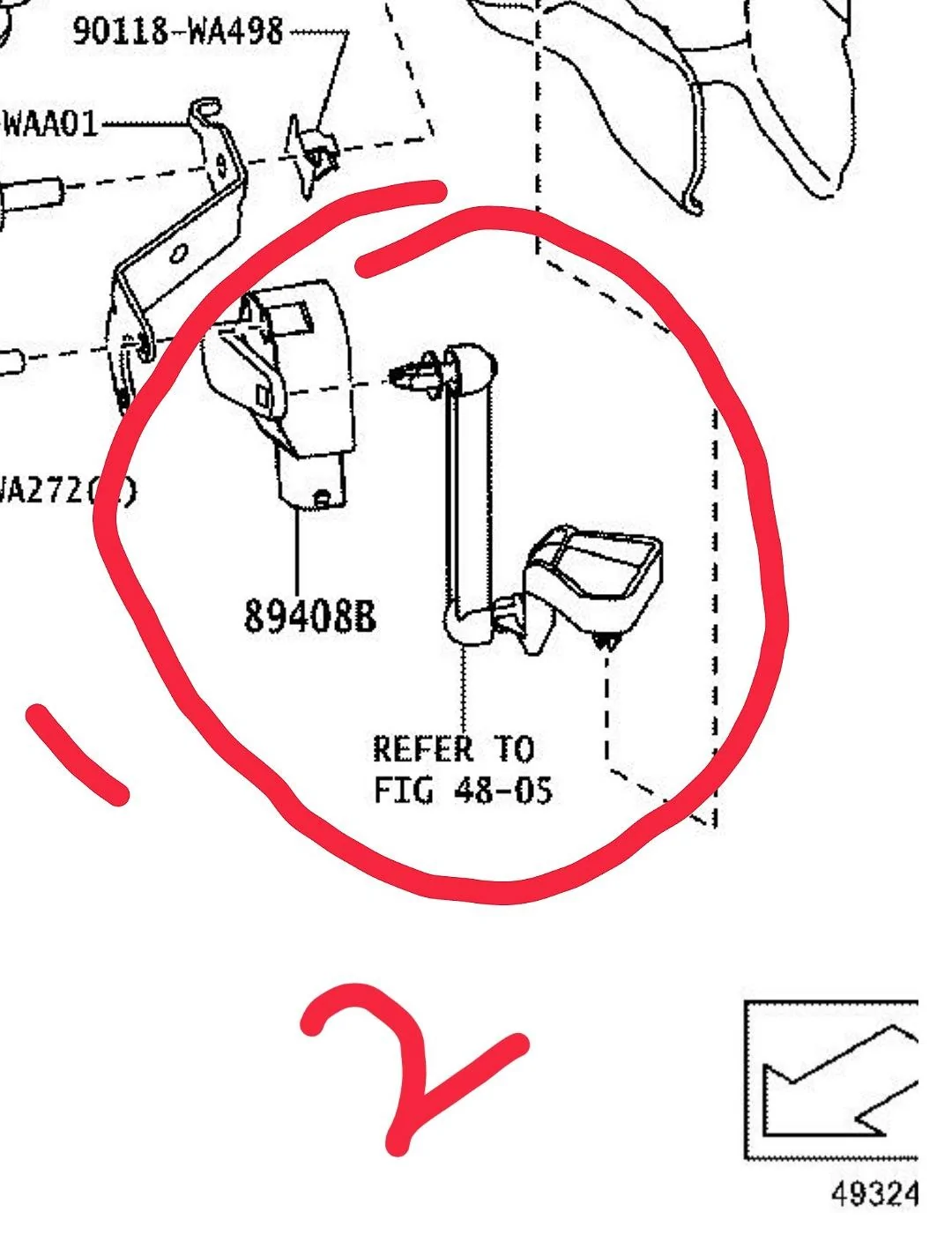

Guys.. Part is not available and needs to be ordered from Japan

Both cars have the same exact sensor broken

Just a heads up for anyone willing to dyno at a shop not familiar with the car






Chassis error code, headlights alignment issues and very stiff suspension


jtsang25

Well-Known Member
Joined
May 28, 2019
Posts
666
Reaction score
518
Location
Canada
Car(s)
2009 BMW 135i, 2020 Toyota GR Supra
Guys.. Part is not available and needs to be ordered from Japan

Both cars have the same exact sensor broken

Just a heads up for anyone willing to dyno at a shop not familiar with the car






Chassis error code, headlights alignment issues and very stiff suspension
Parts ordered from Japan??!! Toyota part located?


a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
Parts ordered from Japan??!! Toyota part located?
Checked with a supplier from the US and was informed its not showing in US dealers inventory too

Part number shows no results

Needs to be ordered from Japan same as Kuwait...
