do you also work on the zf trans?
work in terms of what? like building internals and etc? If so i do not. I just have tons of experience with the ZF from many other platforms i deal with tuning and etc. i leave the internal work to other companies i deal with that have the tools for such tasks.




Advertisement




Nc1dent

Banned
Banned
First Name
Jack
Joined
Jan 14, 2020
Posts
53
Reaction score
60
Location
Southeast US
Car(s)
2020 Supra
work in terms of what? like building internals and etc? If so i do not. I just have tons of experience with the ZF from many other platforms i deal with tuning and etc. i leave the internal work to other companies i deal with that have the tools for such tasks.

Is the ZF in the Supra a single clutch? Do you happen to know the fastest shift time it is capable of? I've looked for documentation and its impossible to find on the HP51.


LS3Twins

Well-Known Member
First Name
Ryan
Joined
Aug 22, 2019
Posts
291
Reaction score
452
Location
Charlotte
Car(s)
2020 Supra 1998 E36M3 LS3 Twin Turbo
700+whp, 720tq on our MKV


also, decided to try and find the physical limit of the trans..... right around 750-760tq is where 6th start to slip. For those who don't know, 6th gear is usually the problem gear on most ZF's in terms of hold torque. Current only reporting 550nm to the trans though, so there may be some more headroom once i report the full amount of torque to it. But shouldnt be much more than that in my experience. See video below. no 6th gear lim modes, just over powering the trans....

Can you post the dyno sheet?


JasonO

Well-Known Member
First Name
Jason
Joined
Oct 30, 2019
Posts
452
Reaction score
516
Location
Lake Charles, LA
Car(s)
Supra LE
Is the ZF in the Supra a single clutch? Do you happen to know the fastest shift time it is capable of? I've looked for documentation and its impossible to find on the HP51.
The transmission has three clutch assemblies and two brakes. I’m not sure on the shift speed, but <150 ms seems to be what the newer revisions are capable of.
Single Torque Converter
I think he is asking about the internal clutches for transmission gear engagement.


Waferz

Well-Known Member
First Name
Michael
Joined
Dec 21, 2019
Posts
379
Reaction score
264
Location
Louisiana
Car(s)
2020 supra launch edition, 1993 rx7
In regards to a stronger transmission, is it possible that a hellcat trans (or internals) could work?


XtremeMaC

Well-Known Member
First Name
MaC
Joined
Aug 8, 2018
Posts
834
Reaction score
750
Location
_________ SE Michigan, USA
Car(s)
2013 GT86 _____2020 Supra
nope not stock; Judging by HP, it's their level 2 kit with exhaust.
https://www.daehler.com/produkte/toyota/toyota-gr-supra-seit-2019.html

Translated from German:

  • Performance increase level 1 "powered by DÄHLer" : 300 kW (408 PS), 610 Nm (lb-ft 450), incl. Lifting of the standard V / max limitation, WLTP-tested and EU / CH homologated.

  • Performance increase level 2 "powered by DÄHLer" : 340kW (460 hp), 660 Nm (lb-ft 487), incl. Lifting of the standard V / max limitation.

  • Stainless steel exhaust system "built by DÄHLer" with the sporty, sonorous and unmistakable sound typical of DÄHLer.

  • Competition coilover “built by dÄHLer” (height and hardness adjustable) or lowering with the harmonious sport spring set “built by dÄHLer” .

  • Ultra-light 20-inch forged wheel “dÄHLer CDC1 FORGED” with Michelin tires - the sporty, elegant wheel from our own development and production.

  • 21-inch “DÄHLer CDC1” aluminum wheel with Michelin tires - the sporty, elegant wheel developed and manufactured in-house.


Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Posts
764
Reaction score
899
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,

Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Posts
764
Reaction score
899
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,

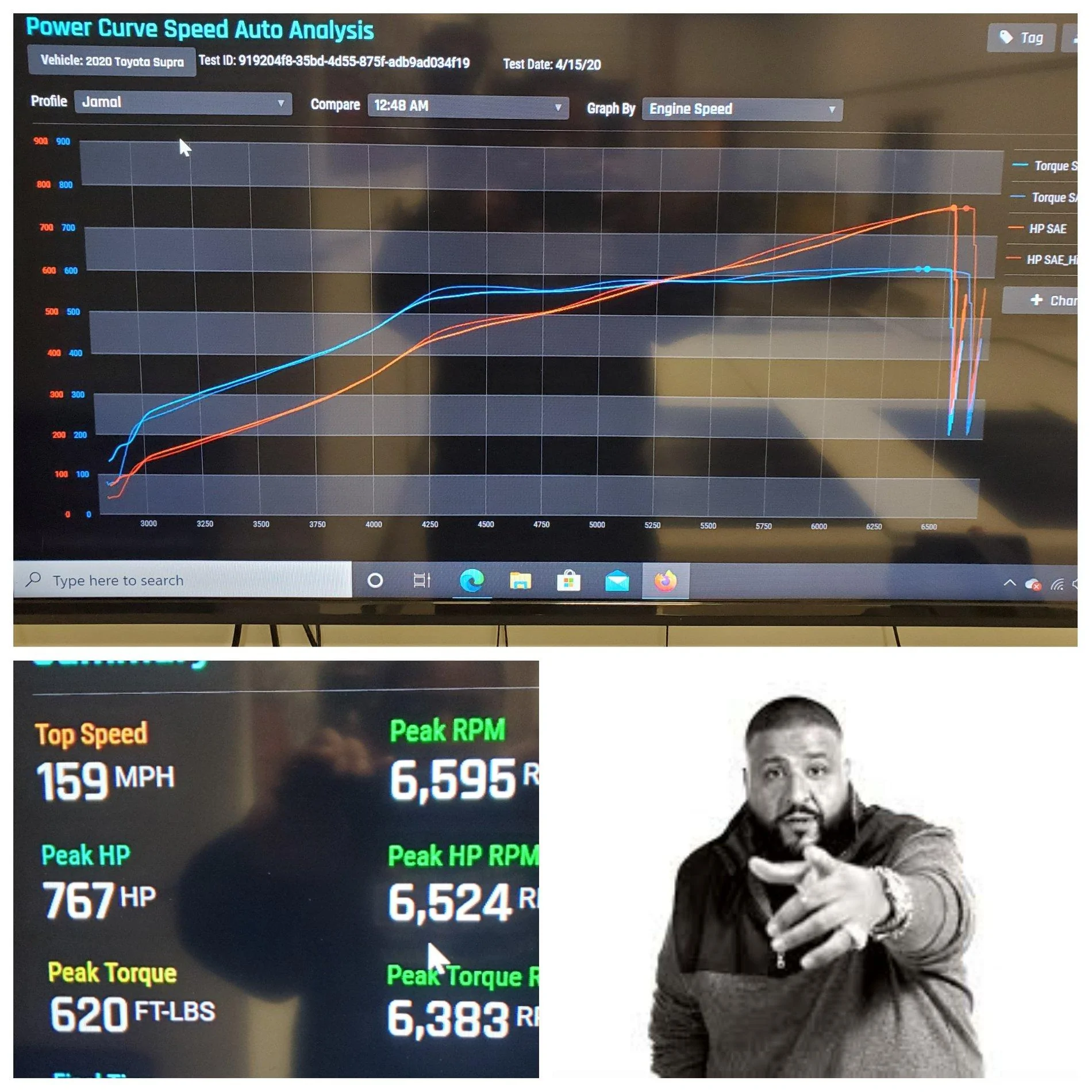

Tossed Her back on the dyno around 12-1am forna late night... or would that be an early jam session. Tossed up some more boogie.

767whp, 620wtq (mustang dyno)



a90moe

Well-Known Member
First Name
Moe
Joined
Nov 9, 2019
Posts
762
Reaction score
681
Location
Kuwait
Car(s)
MKV Supra
Dyno runs with the Supra creep me

Car hates them, I still have fault codes that could not be cleared (BM3 app)

CD990B :(

Anyway around this?
