Featured A90 Supra MKV on the dyno

Discussion in 'General Supra Topics' started by Goose, Jul 23, 2019.

  1. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    176
    Liked:
    278
    Garage Profiles:
    1


    It would be interesting to see the SuperFlow graph with the various correction factors/filters applied. The CF utilized on your graph is definitely the heartbreaker one. I have graphs from them in both "WhlPwr/WhlTrq" and "SAE HP/SAE TQ" both of which are much closer to Dynojet numbers (comparing the same car/setup), i.e., SuperFlow "SAE HP/SAE TQ" of 529.5/476.8 compared to 546.4/487.1 on a Dynojet using STD correction, Smoothing 5.


    Nice numbers on CES's dyno! They're a good group and I'm excited to see how they progress with their shop car.


    RE: 15:1 AFR at WOT --- that's definitely much leaner than norm even for a DI car; however.... getting an accurate AFR reading at the tips through cats and a stock exhaust, particularly one with valves can be problematic, in my experience. It's very possible the sensor is not getting an accurate reading due to positioning, etc..

    SupraFiend likes this.
  2. OP
    OP
    Goose

    Goose Well-Known Member

    First Name:
    Michael
    Car(s):
    2013 FRS
    Joined:
    Feb 2, 2019
    Location:
    NC
    Posts:
    430
    Liked:
    677

    Oh yeah, CES is much closer to my house than Shift Fast or The Performance Factory. And with them having a Supra also, should be a bit easier to get stuff done. I also really like that they know the mechanicals, since they focus on BMWs.

  3. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,835
    Liked:
    4,368
    Occupation:
    Engineer
    Direct injection allows you to run different AFRs to standard port injection. You can run a lot closer to stoich without risk of preignition.

    A70TTR likes this.
  4. SupraFiend

    SupraFiend Well-Known Member

    Car(s):
    5 Supras currently
    Joined:
    Nov 2, 2017
    Location:
    Vancouver
    Posts:
    507
    Liked:
    752
    Would still be nice to see the AF graph read off a wideband before the first cat. The dip at 5000rpm is completely missing in this one. It is really hard to get reliable numbers off a divided exhaust too. Back when we had annual emissions tests in the Vancouver area, I would always get the techs to stick the probe in the drivers side of my twin pipe muffler. That one branched off the other side and is barely used under full throttle, aced that test every time lol.

    But thanks for doing all the dynos Goose, those are some great numbers on the dynojet! I would quote these to anyone that asks over the C&D 425 one on the preproduction car. Now the question is can you pull off a 3.8 0-60 :D

    That's a pretty solid torque curve!

  5. OP
    OP
    Goose

    Goose Well-Known Member

    First Name:
    Michael
    Car(s):
    2013 FRS
    Joined:
    Feb 2, 2019
    Location:
    NC
    Posts:
    430
    Liked:
    677
    Iirc, I need to have gone more than 1200 miles foe LC to work, and I'll need to find a timing device.

    Any suggestions for a timing tool? I've never looked into it, so I wouldn't know what I should look for.

  6. kona61

    kona61 Well-Known Member

    First Name:
    J
    Car(s):
    5G 4Runner, MK7 Golf, AZW LE Supra
    Joined:
    Mar 25, 2018
    Location:
    San Bernardino-ish, CA
    Posts:
    846
    Liked:
    1,227
    Garage Profiles:
    1
    Launch control? No you don't. I think That Racing Channel engaged it on their drive home and they were below 1200.

  7. F1 Silver Arrows

    F1 Silver Arrows Well-Known Member

    Car(s):
    Mercedes F1 W07 Hybrid
    Joined:
    Oct 17, 2018
    Location:
    Circuits around the world
    Posts:
    286
    Liked:
    633
    Speaking of, they have a new video of it running quarter miles tuned.


  8. OP
    OP
    Goose

    Goose Well-Known Member

    First Name:
    Michael
    Car(s):
    2013 FRS
    Joined:
    Feb 2, 2019
    Location:
    NC
    Posts:
    430
    Liked:
    677
    Hmm. I'll have to check it out then, see if I can get it going. I'm between 600 and 700 miles now.

    kona61 likes this.
  9. SupraFiend

    SupraFiend Well-Known Member

    Car(s):
    5 Supras currently
    Joined:
    Nov 2, 2017
    Location:
    Vancouver
    Posts:
    507
    Liked:
    752
    C&D was only able to get 4.0 with the LC, they played with launching it manually to get the 3.8. Of course, we have seen other reviewers who managed 4.0 in really good conditions with the LC so their time should be repeatable.

  10. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    345
    Liked:
    385
    Occupation:
    calibration specialist
    Home Page:
    These cars are direct injection and are indeed run lean from the factory. we post this in our build thread. But Here, feel free to check out a stock log from our LE.......

    https://datazap.me/u/twistedtuning/...0&data=2-3-8-17-20-21-22-23-24-25-26&mark=125


    Also, if you're going to run an AFR in the 11s on this engine you're just wasting fuel. You guys will need to get out of the Port injected mindset

    We should have numbers for our tune soon to post. We dont do "stage" tunes. We are a custom tuning company and tune each car to the extent of its mods and owners wishes. So stay tuned to see what these engines and cars can really do

  11. harddrivin1le

    harddrivin1le Member

    First Name:
    Pete Shea
    Car(s):
    2018 VW GTI Autobahn
    Joined:
    Jul 27, 2019
    Location:
    Southern New England, USA
    Posts:
    5
    Liked:
    7
    #131 Aug 9, 2019
    Last edited: Aug 9, 2019
    That's not how chassis dynos work. You'll get about the same HP and Torque figures at the rear wheel in every tested gear on a chassis dyno because the dyno ""knows" engine RPM, tire velocity and static roller weight (inertia chassis dynos). While torque converters can create some anamolies, this can be directly observed in vehicle's equipped with manual transmissions.

    People would be recorded drive wheel torque in the 3,000 ft-lb plus range I new Surpas (dyno'd in first) if torque output represented torque at the tires due to gearing ratio multiplication.

    Testing in the 1:1 ratio for any vehicle is considered protocol because it helps established a consistent database.

    In theory, lower ratios (especially below 1:1) can be expected to yield ever so slightly LESS peak HP and torque figures because they exhibit greater frictional losses.

    Those who've tested their (same) vehicle in various ratios on the same day on the same dyno (inertia in particular) know this to be true through first hand experience.

  12. OP
    OP
    Goose

    Goose Well-Known Member

    First Name:
    Michael
    Car(s):
    2013 FRS
    Joined:
    Feb 2, 2019
    Location:
    NC
    Posts:
    430
    Liked:
    677
    Yeah, we did it in 6th at Performance Factory, and 5th, and the numbers were essentially the same. Only difference is the speed, and how long the run takes.

    harddrivin1le likes this.
  13. You Drive

    You Drive Well-Known Member

    First Name:
    Robert
    Car(s):
    Camaro Zl1, Toyota 4Runner, GR Supra Red LE
    Joined:
    Jul 23, 2019
    Location:
    Louisiana
    Posts:
    334
    Liked:
    219
  14. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    176
    Liked:
    278
    Garage Profiles:
    1

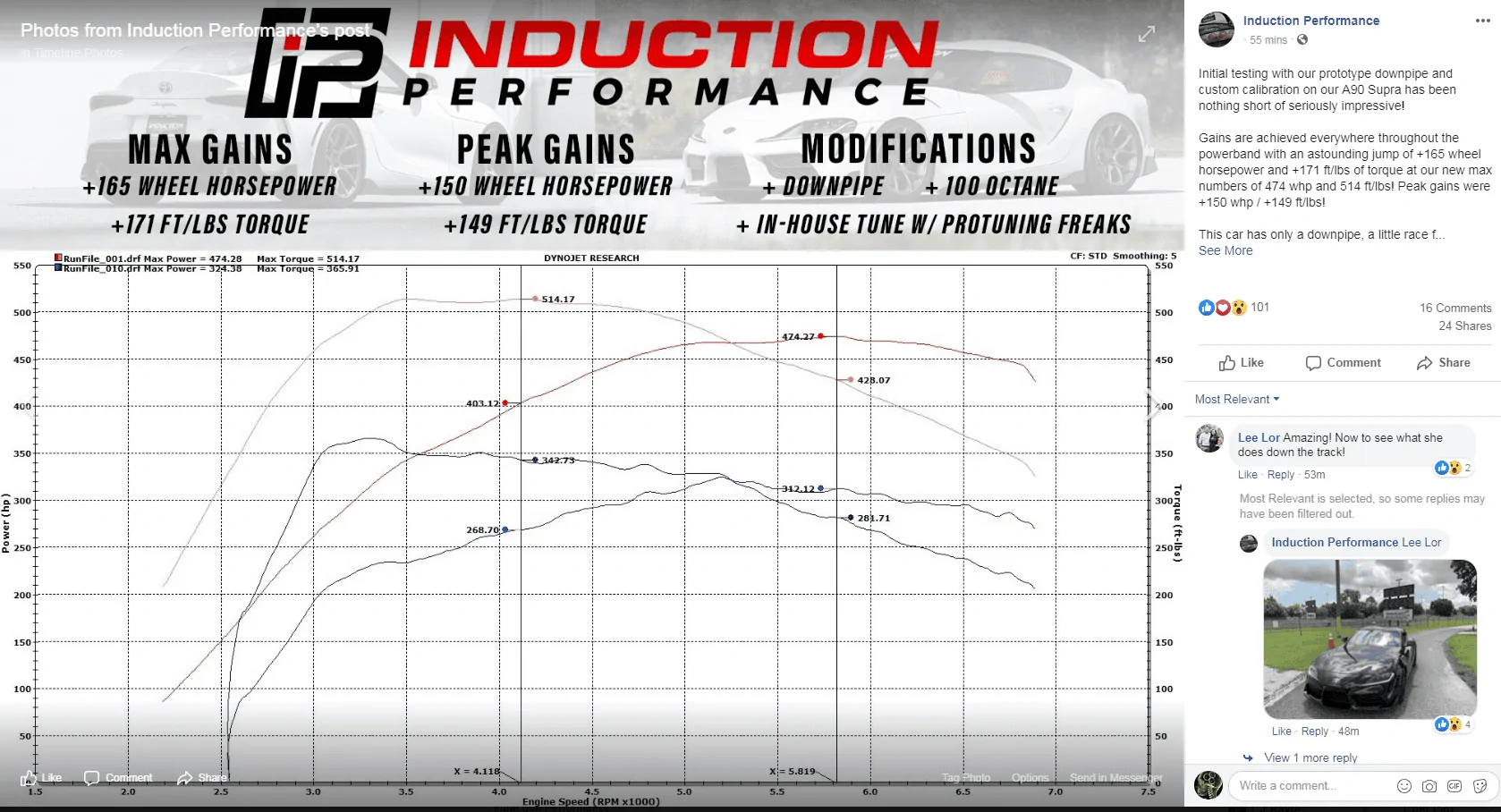

    Fat powerband. Wonder how much capacity is left in the stock fuel system.



    Rotaryrunner likes this.
  15. SlowGTR

    SlowGTR Active Member

    First Name:
    Chris Hill
    Car(s):
    2014 Ferrari 458 / 2016 Nissan GT-R
    Joined:
    Apr 17, 2019
    Location:
    Chicago, IL
    Posts:
    39
    Liked:
    115
    Garage Profiles:
    2

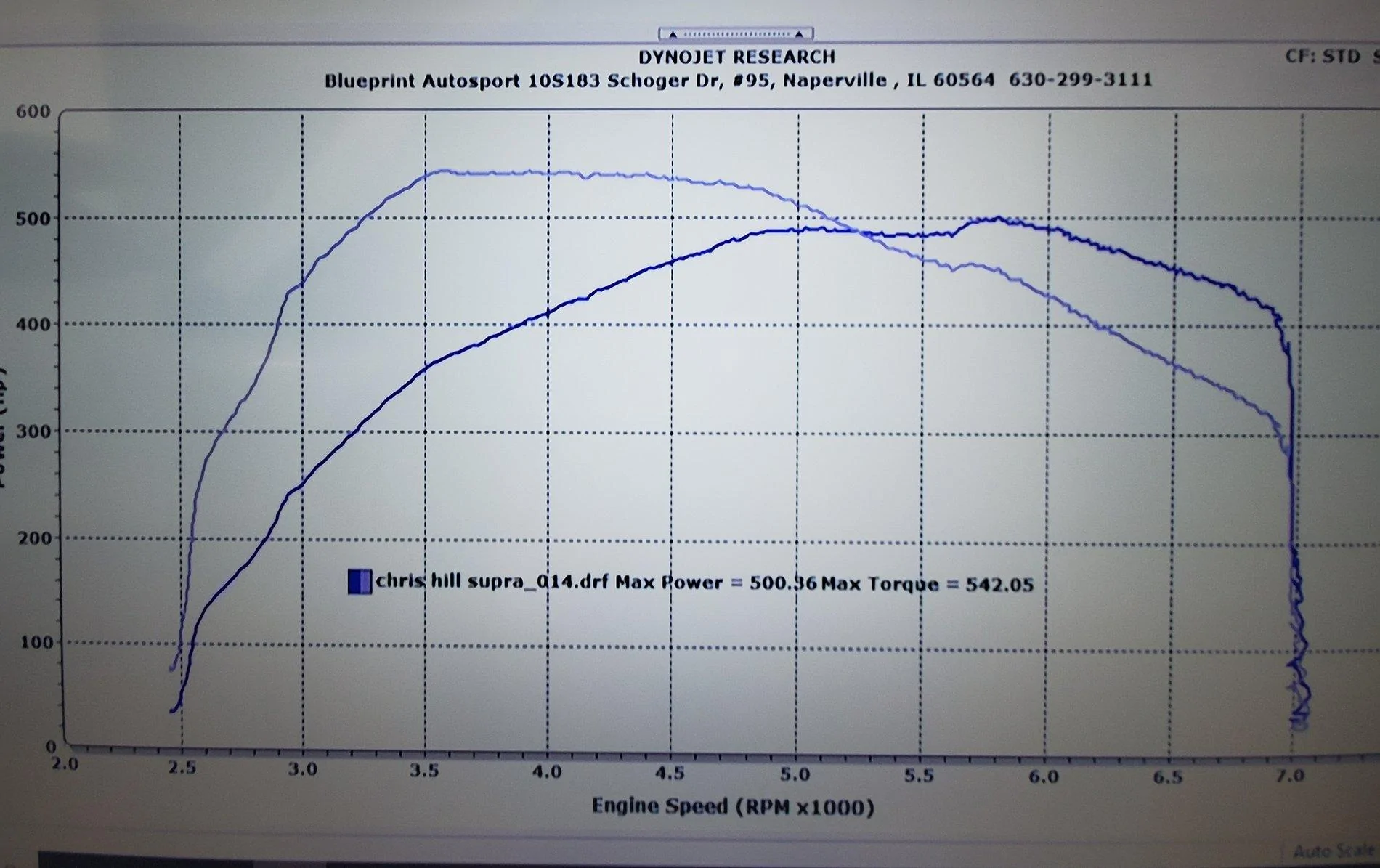

    Put down 500whp today at like 546trq. 100 octane and e85 blend on Boostlogic downpipe and Bootmod3 custom tune


    Pinrut, Vaevictum, jm6k and 4 others like this.
