Airbag error lights/warnings easy coding!

[kaj]

What’s not working?

I am unable to code out the driver side airbag.
I went through the instructions you provided on page 1, making adjustments for the difference in menus. No luck on my end. I still have the error which I'm unable to clear.
I emailed beamer geeks. They don't seem to have an answer yet.
I will report back with any findings.

Sponsored



[kaj]

Also, how is everybody dealing with this, without ruining it to the point it can't be used with the stock seat anymore?



[kaj]

Update from Bimmergeeks:

Look for this setting:
SitzlehnenVerriegelung_Fahrer -> Not Active

Is that in addition to the other setting? Not sure. Their instructions are somewhat vague and incomplete. It's like getting answers from members on this site.



[razorlab]

Update from Bimmergeeks:

Look for this setting:
SitzlehnenVerriegelung_Fahrer -> Not Active

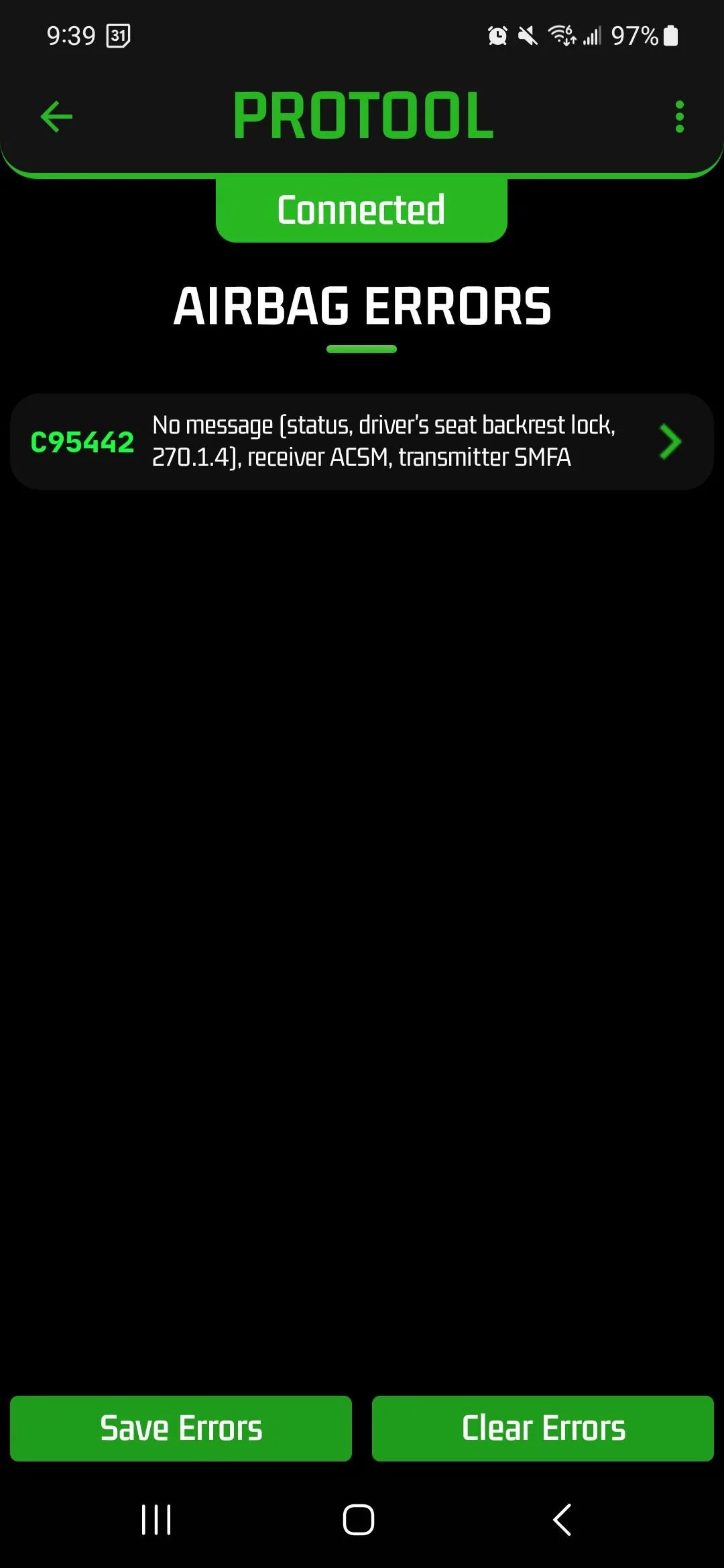

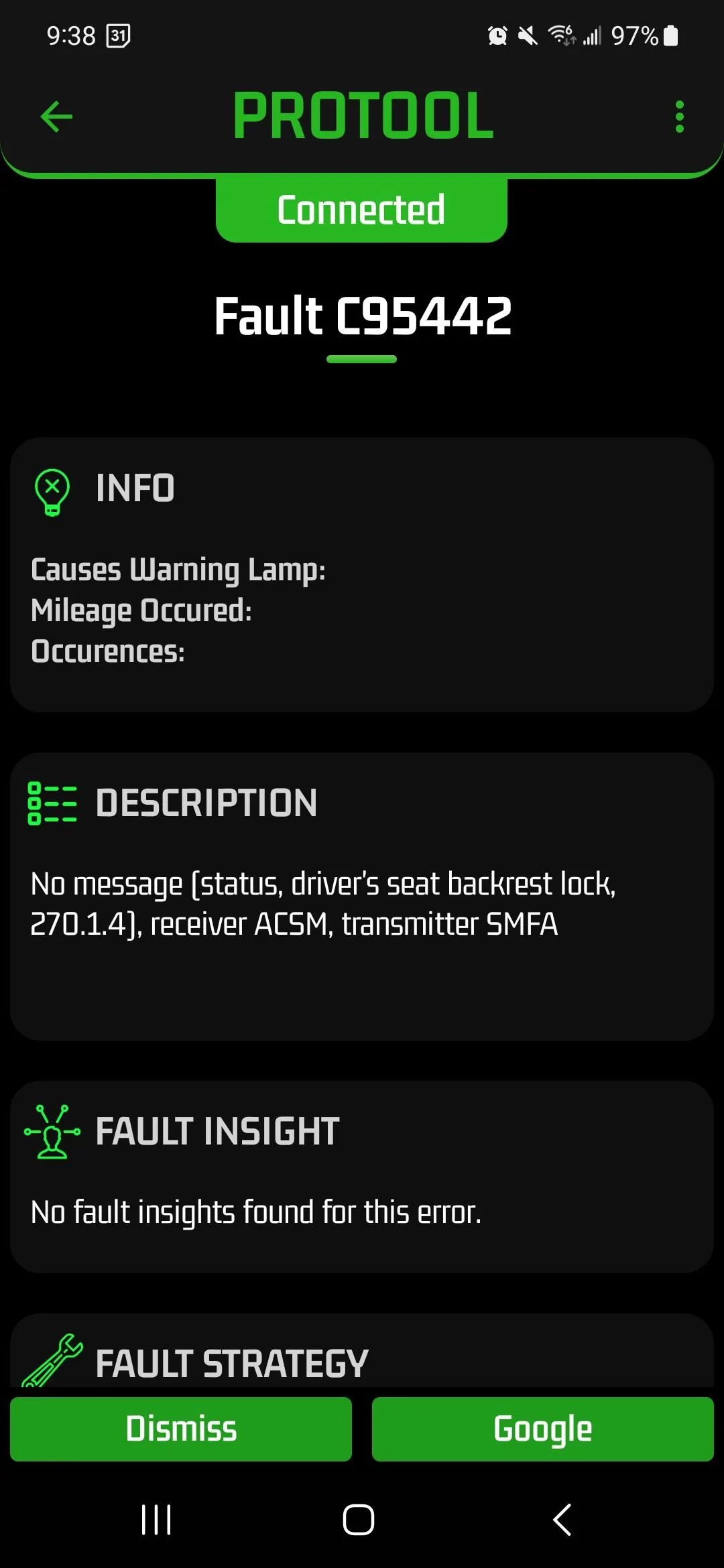

Interesting, might be a 21+ thing. Try it and let me know if it works. It is different than what I have in the first post, so probably in addition. What they gave you is for the seatback latch. "SitzlehnenVerriegelung" which is the error you have. It looks like the airbag and seat position errors are coded out, according to your screen.

"SITZPOSITIONSERKENNUNG_SITZMEMORY" is the seat position sensor.

Also, how is everybody dealing with this, without ruining it to the point it can't be used with the stock seat anymore?

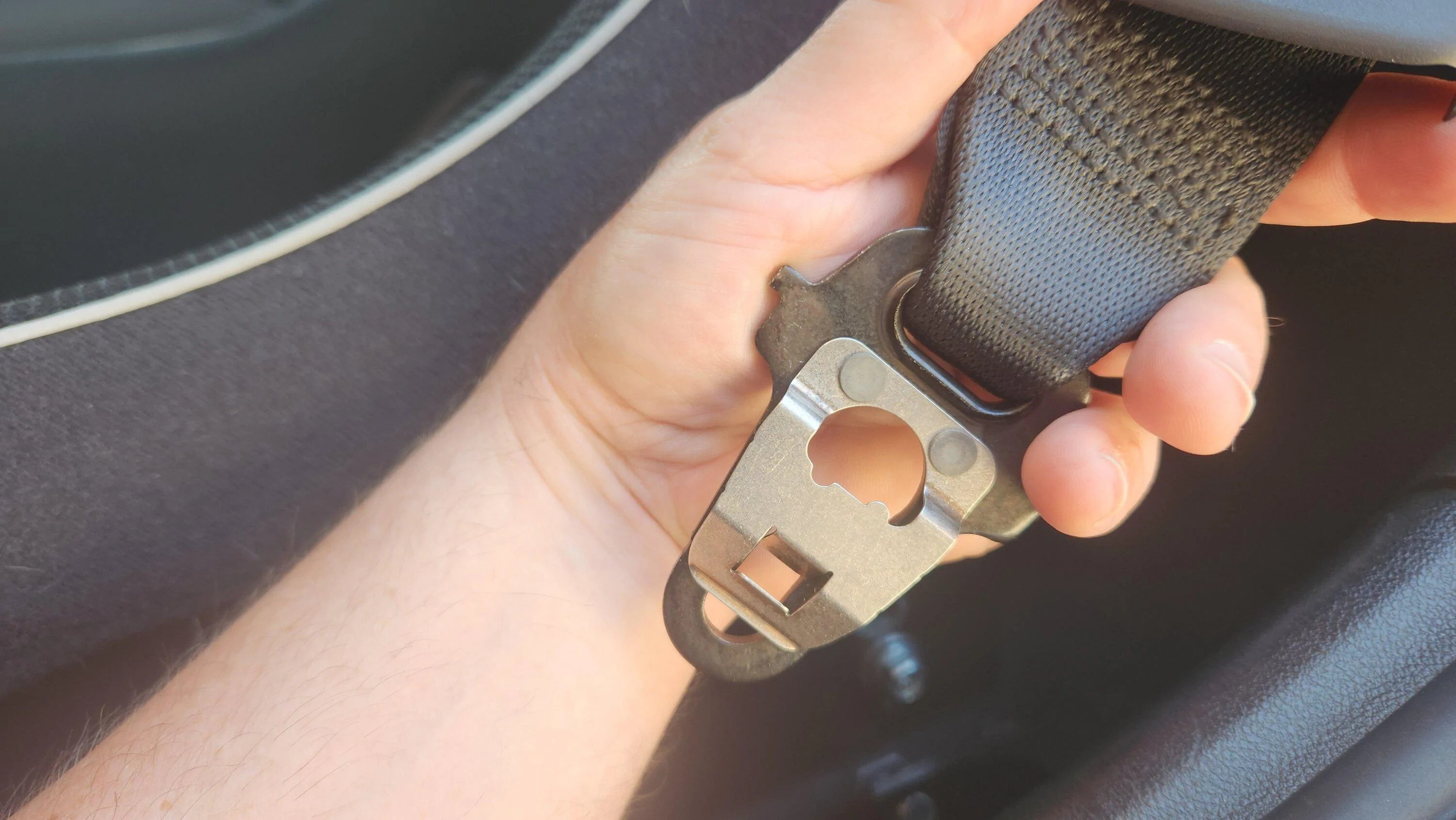

I just bent the top part.



[kaj]

Interesting, might be a 21+ thing. Try it and let me know if it works. It is different than what I have in the first post, so probably in addition. What they gave you is for the seatback latch. "SitzlehnenVerriegelung" which is the error you have. It looks like the airbag and seat position errors are coded out, according to your screen.

"SITZPOSITIONSERKENNUNG_SITZMEMORY" is the seat position sensor.



I just bent the top part.

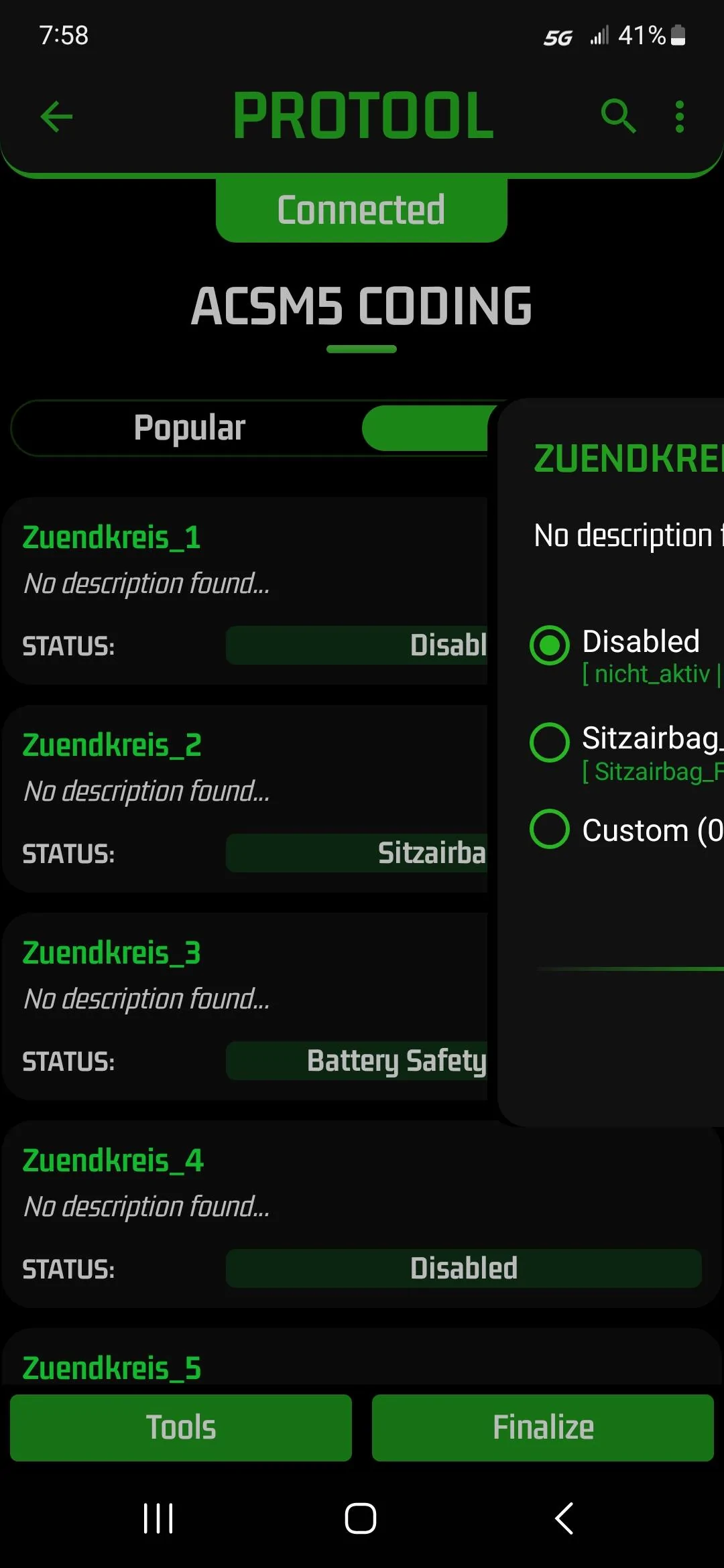

Okay, so in addition to setting The option in my screenshot below, we I also want to search and check for:

SitzlehnenVerriegelung_Fahrer then set to: Not Active

I'm not sure why I would get a seat belt error, as I have that plugged back in. That's kinda weird. But, I don't mind coding it out, as I don't care if I get an alert for seatbelt.

As forbidding that tab, that's what I was going to do, but I just know it's not going to go back to normal, later.

I'll try the coding when I get home.



[razorlab]

Okay, so in addition to setting The option in my screenshot below, we I also want to search and check for:

SitzlehnenVerriegelung_Fahrer then set to: Not Active

I'm not sure why I would get a seat belt error, as I have that plugged back in. That's kinda weird. But, I don't mind coding it out, as I don't care if I get an alert for seatbelt.

As forbidding that tab, that's what I was going to do, but I just know it's not going to go back to normal, later.

For drivers side:

Disable the following:

ZUENDKREIS_1
SITZPOSITIONSERKENNUNG_SITZMEMORY_FAHRER

+ that new thing you got:

SitzlehnenVerriegelung_Fahrer



[kaj]

Okay, here is my update:

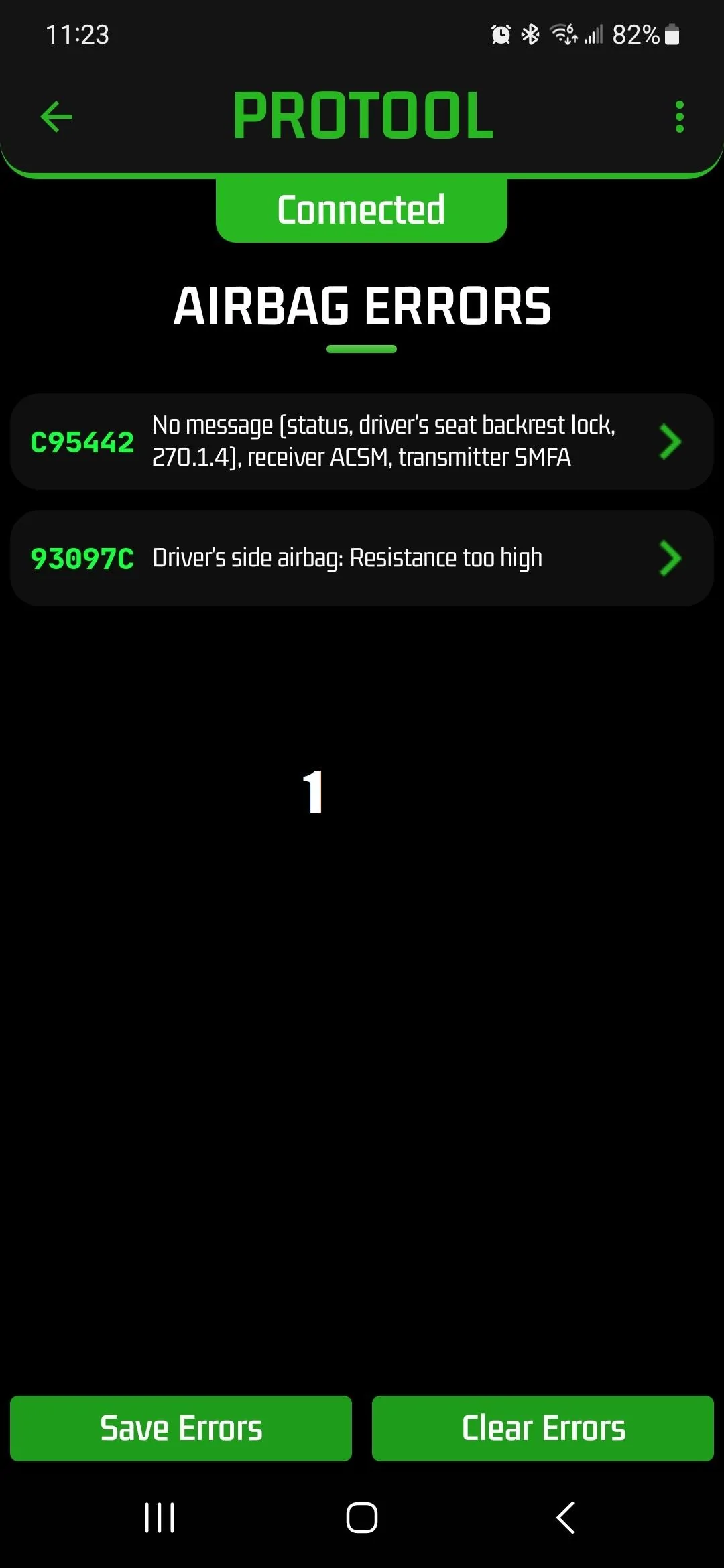

I started out with two codes, as with picture number 1.

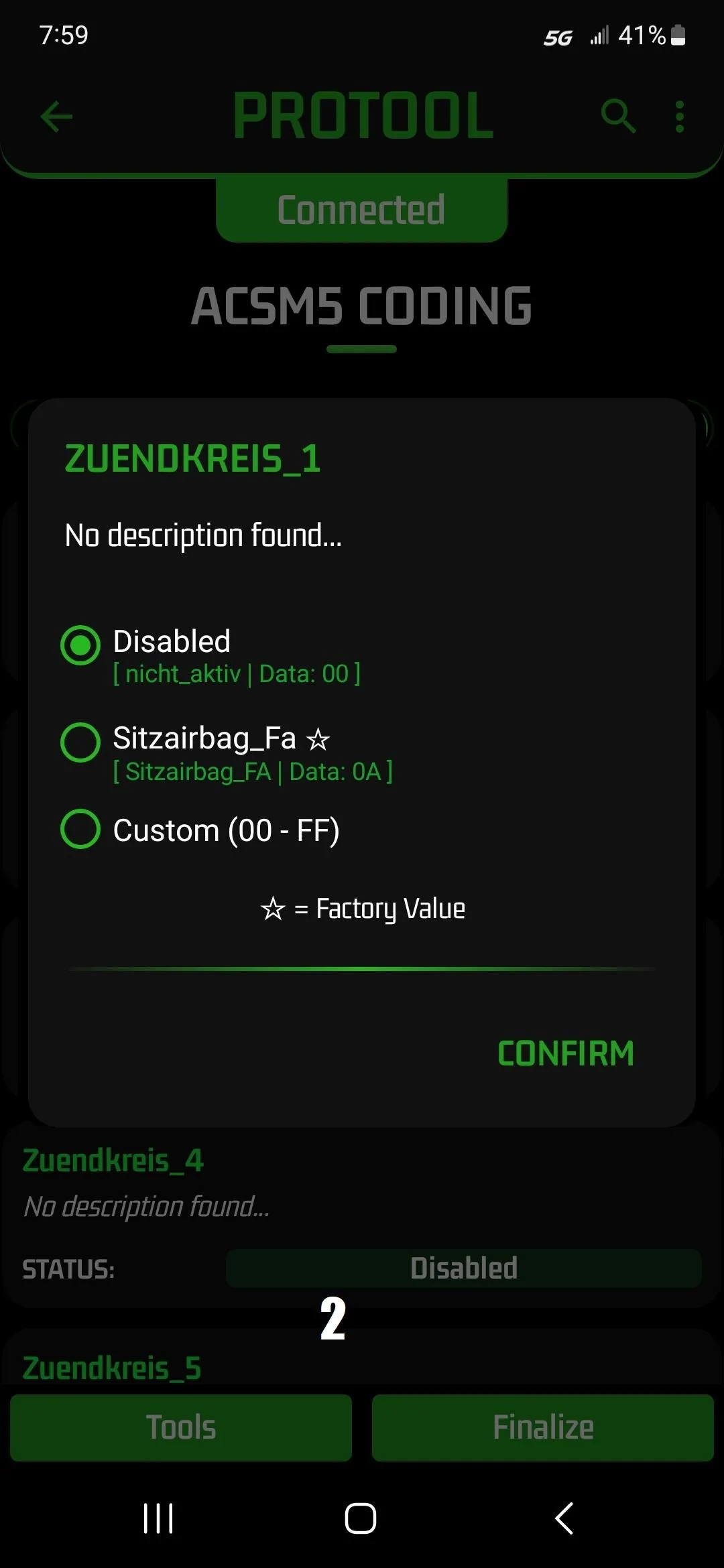

I disabled a parameter as in picture number 2.

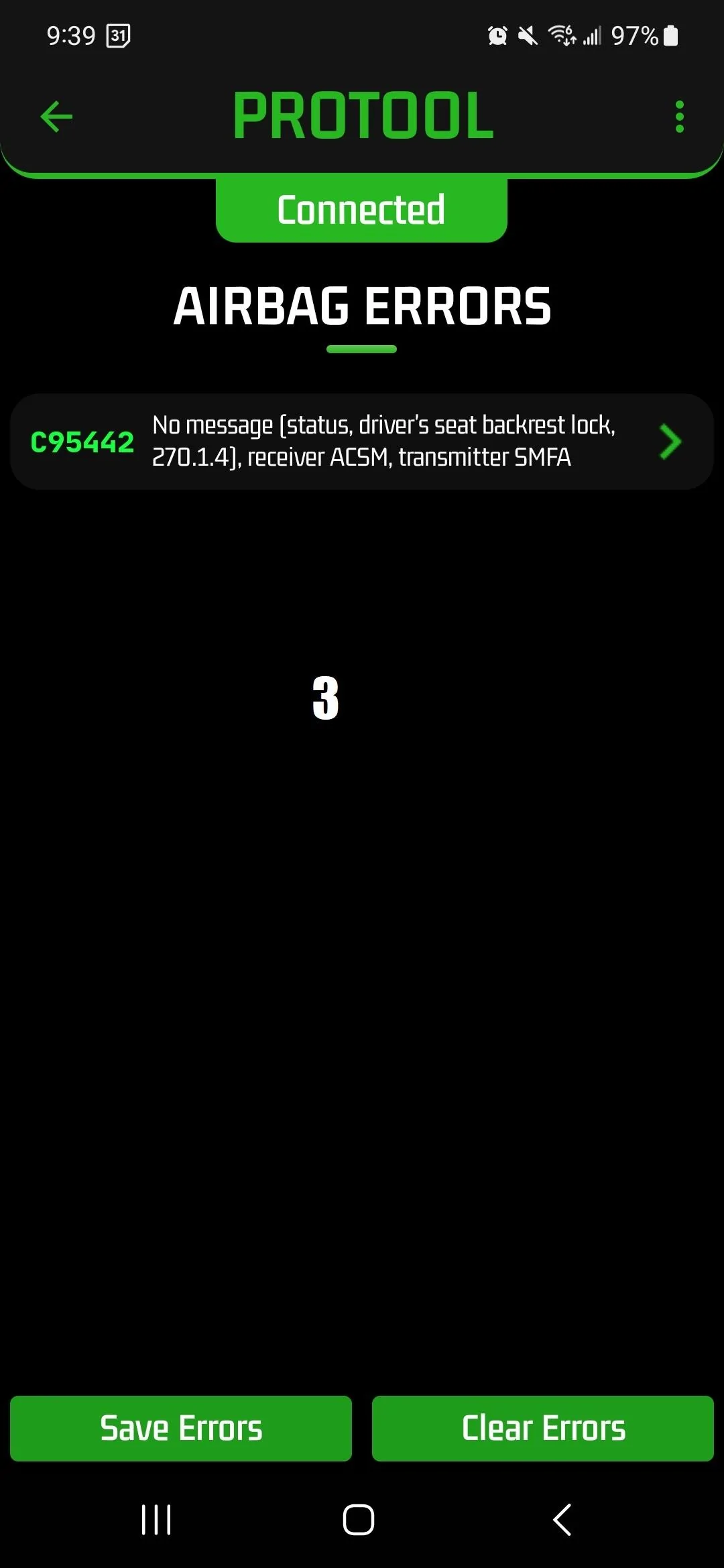

This left me with a single code as in picture number 3.

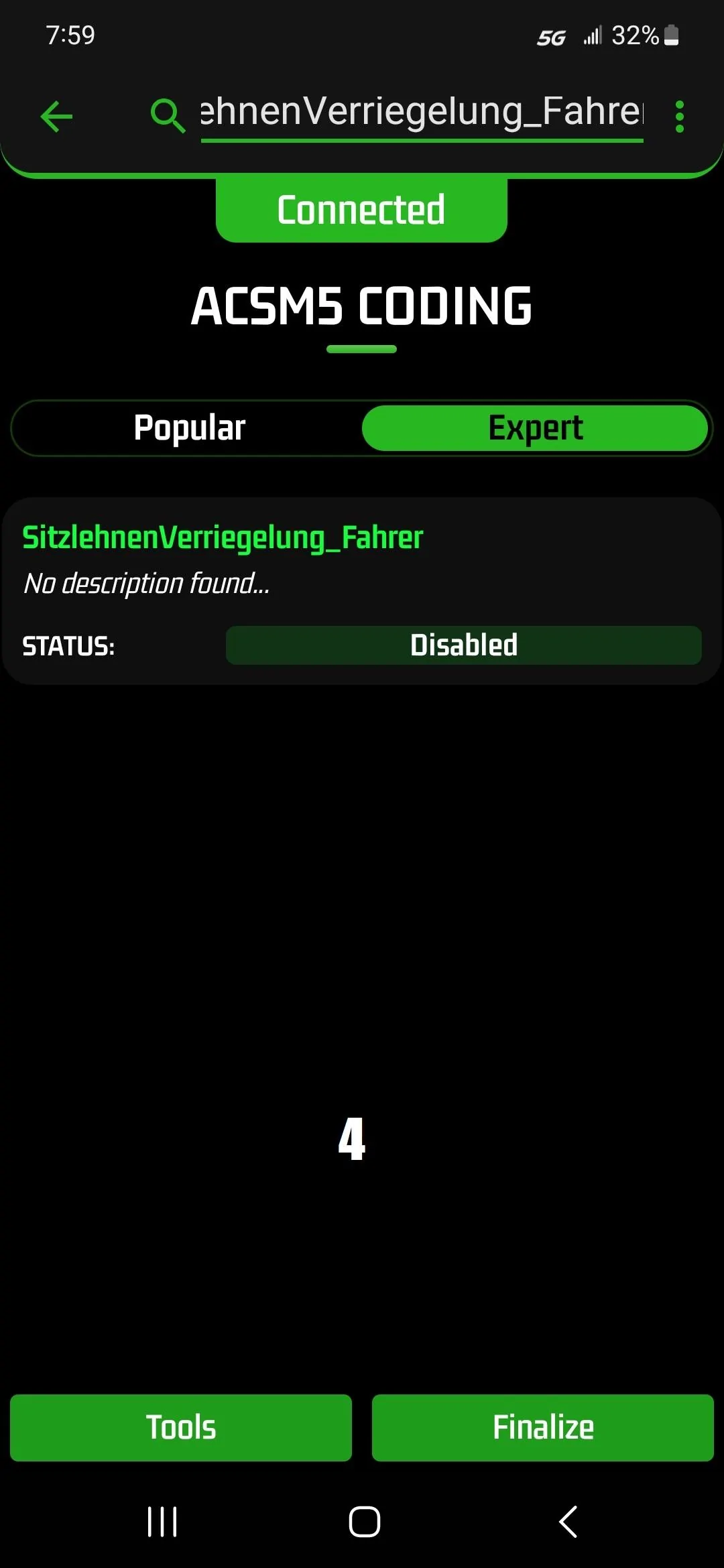

I was then advised by Bimmergeeks to search for the parameter as in picture number 4. "SitzlehnenVerriegelung_Fahrer -> Not Active" but I did not find exactly that verbage.

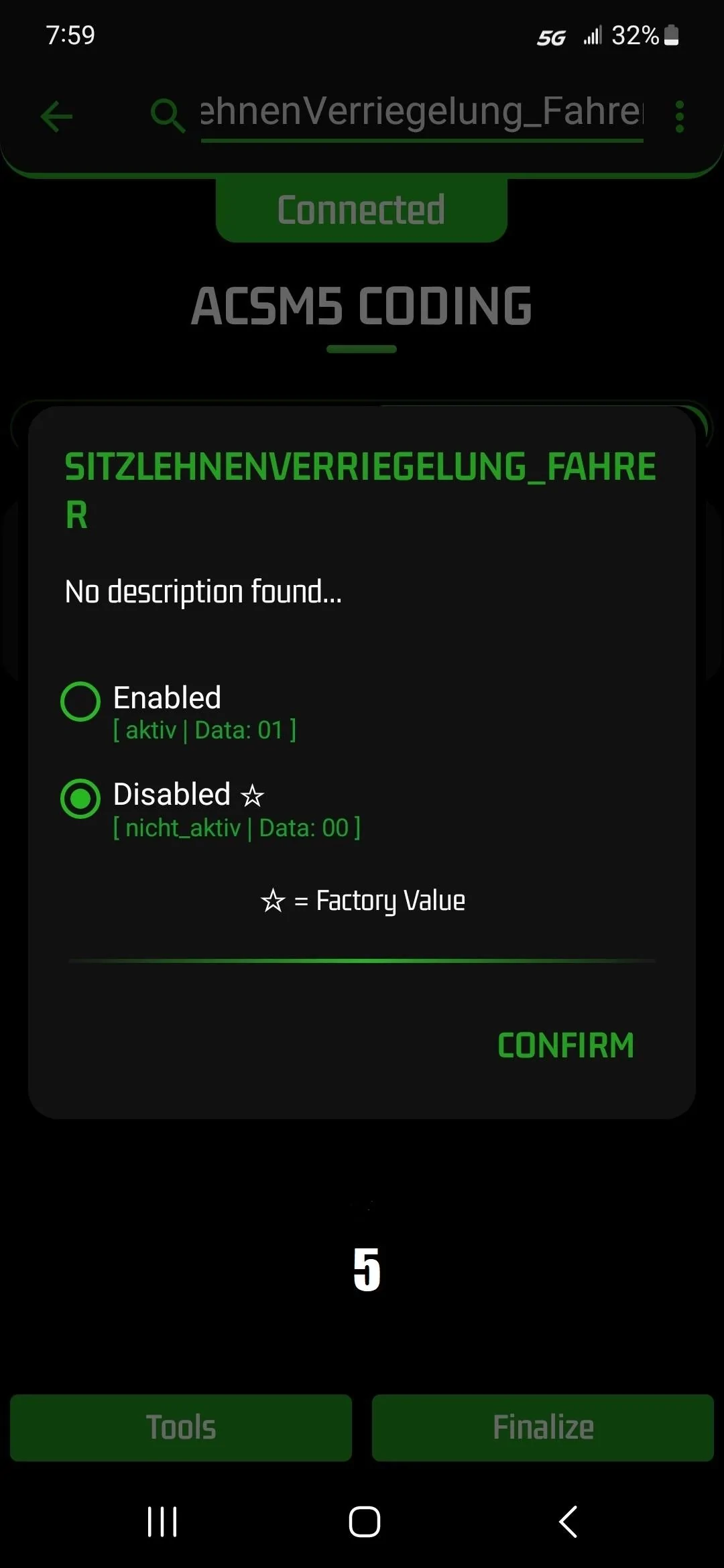

I found the parameter shown in picture number 5.

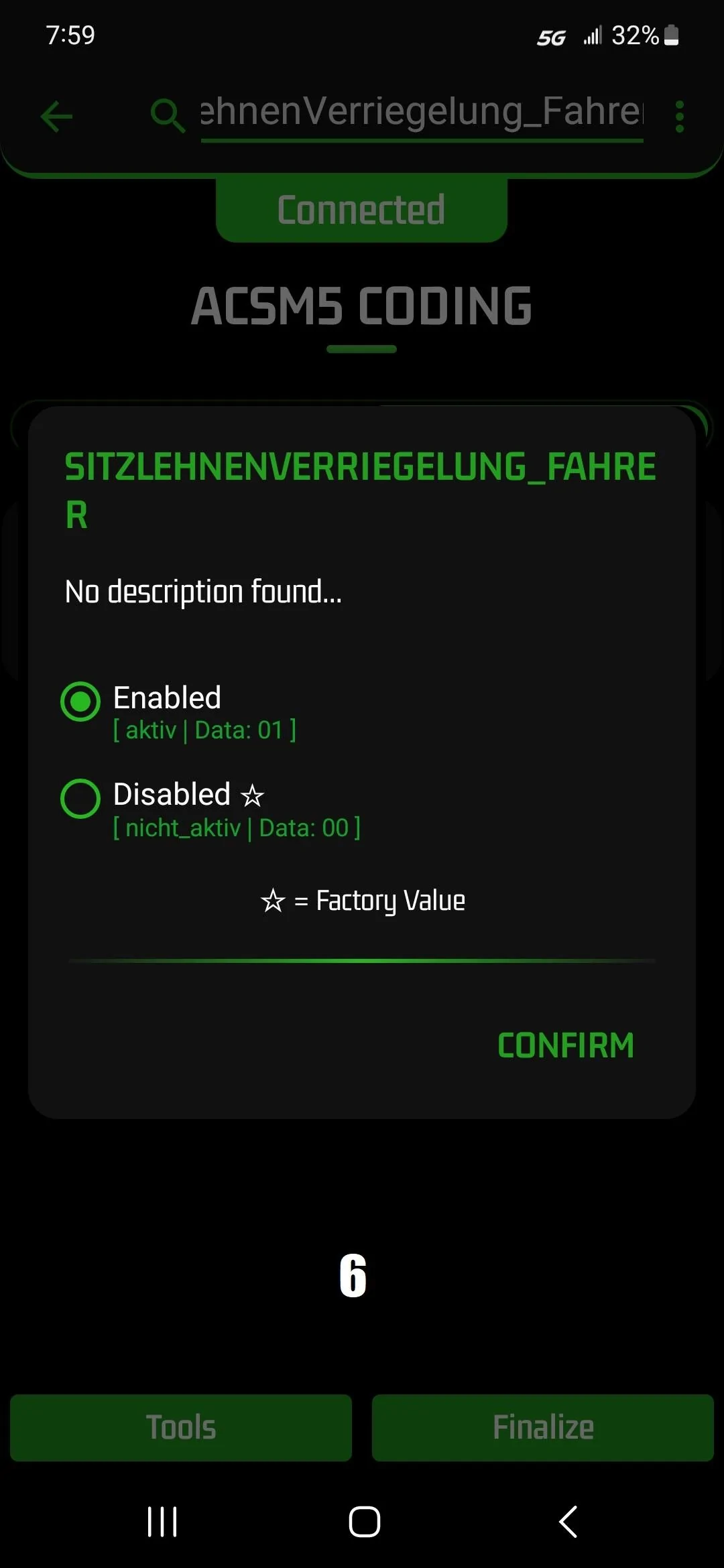

I changed it as shown in picture number 6 because I assumed I had to change something.
I still have the single error as in picture number 3.

I have sent the above the Bimmergeeks with the hope of finding a solution. My app menus don't match up with Bryan's. Also, I have the seatbelt plugged in, so not sure why I would be getting a seatbelt error, if that's what it is.



[kaj]

Update from Bimmergeeks:

No problem, it's the right app, we have just changed verbiage a bunch so the not active reference was for disabled. I'll check it again to see if something else sticks out for me on that error.

So, apparently something has changed, possibly in the app (?), as I am currently not able to code out the error.



[FLtrackdays]

Update from Bimmergeeks:

So, apparently something has changed, possibly in the app (?), as I am currently not able to code out the error.

Good luck brother. I think the majority of people get codes and just drive with it. Keep up the great work! I’ve got my $10 pre-tensioners until then.



[kaj]

Good luck brother. I think the majority of people get codes and just drive with it. Keep up the great work! I’ve got my $10 pre-tensioners until then.

It's a bummer, but worth it. I. Do. Not. Move.



[rwense]

Following cause I need to get a seat soon



[xplizitremix]

any updates on this with 21+

what about ista ?



[xplizitremix]

Appreciate it! I think I may have figured something out. There are some ghost errors but not creating CEL

1. Unplugged the belt buckle first from the harness.

2. Disabled Gurtkontact_FA

this worked for me but I’m getting flashing seat belt light even when my belt is plugged in.
Do I need to plug in the box under the seat back into the car



[718_2T]

this worked for me but I’m getting flashing seat belt light even when my belt is plugged in.
Do I need to plug in the box under the seat back into the car

Unfortunately, If you want that light off too then yeah. I plug it in under the seat and got a extra buckle off eBay.

I know there's a company that's able to code it out. There should be an older post on mkv Supra Track FB page about who knows. But it's not free, they remote in.

Also it may be worthwhile to check on ProTools FB page. Found additional information there and was able to ask the developers questions.

I Haven't tested coding it out with Toyota's ISTA. But from memory it looked like I had many of the same control ProTools offered. So it may be possible. Someone will just have to dig.



[xplizitremix]

Unfortunately, If you want that light off too then yeah. I plug it in under the seat and got a extra buckle off eBay.

I know there's a company that's able to code it out. There should be an older post on mkv Supra Track FB page about who knows. But it's not free, they remote in.

Also it may be worthwhile to check on ProTools FB page. Found additional information there and was able to ask the developers questions.

I Haven't tested coding it out with Toyota's ISTA. But from memory it looked like I had many of the same control ProTools offered. So it may be possible. Someone will just have to dig.

I had my OEM belt plugged into the harness yellow plug at the very end of it…
