Featured Car & Driver Dyno Results: The 2020 Toyota Supra Makes More Power Than Toyota Claims

Discussion in 'General Supra Topics' started by BrettS, May 21, 2019.

  1. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    86
    Liked:
    121
    Garage Profiles:
    1

    What is? Ideally it should have been dyno'd in 6th gear (1:1).

  2. madweazl

    madweazl Well-Known Member

    First Name:
    Aaron
    Car(s):
    '15 Mustang GT & '13 Ram 1500 Longhorn
    Joined:
    May 18, 2019
    Location:
    NOVA
    Posts:
    57
    Liked:
    66
    Garage Profiles:
    1
    The dyno results not intersecting at 5250. The large delta between the torque (+100) and HP probably gives a different axis.

  3. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    86
    Liked:
    121
    Garage Profiles:
    1


    Yeah... That's not at all how that works. HP and TQ always intersect at 5252; perhaps you should look up the formula. In WinPEP you can adjust the axes however you see fit to compare the curves; the standard is to have both on the same scale, though (which means they'll cross at 5252, per the math).

  4. madweazl

    madweazl Well-Known Member

    First Name:
    Aaron
    Car(s):
    '15 Mustang GT & '13 Ram 1500 Longhorn
    Joined:
    May 18, 2019
    Location:
    NOVA
    Posts:
    57
    Liked:
    66
    Garage Profiles:
    1
    No, it isnt always how it works, especially when there are large delta between measured HP and torque if forced scaling isnt used.

  5. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    86
    Liked:
    121
    Garage Profiles:
    1


    Mathematically HP=TQ at 5252RPM. The nuances of the WinPEP software and whether you force scaling or not, does not change the calculation.

  6. madweazl

    madweazl Well-Known Member

    First Name:
    Aaron
    Car(s):
    '15 Mustang GT & '13 Ram 1500 Longhorn
    Joined:
    May 18, 2019
    Location:
    NOVA
    Posts:
    57
    Liked:
    66
    Garage Profiles:
    1
    I'm not challenging the math, I'm very familiar with dynos. The fact is, your graph wont intersect all the time; doesn't change your HP or torque. It's just a display issue.

  7. dgh

    dgh Well-Known Member

    First Name:
    Darren
    Car(s):
    1993 RX7; 2011 Toyota RAV 4
    Joined:
    Feb 15, 2018
    Location:
    Alberta, Canada
    Posts:
    152
    Liked:
    292
    So, can anyone interpolate what the crankshaft HP and torque should be, based on the C & D dyno test?

  8. madweazl

    madweazl Well-Known Member

    First Name:
    Aaron
    Car(s):
    '15 Mustang GT & '13 Ram 1500 Longhorn
    Joined:
    May 18, 2019
    Location:
    NOVA
    Posts:
    57
    Liked:
    66
    Garage Profiles:
    1
    14% drivetrain loss is prevalent for newer vehicles.

  9. dgh

    dgh Well-Known Member

    First Name:
    Darren
    Car(s):
    1993 RX7; 2011 Toyota RAV 4
    Joined:
    Feb 15, 2018
    Location:
    Alberta, Canada
    Posts:
    152
    Liked:
    292
    Thanks. Does that apply to torque too? Someone said this is for HP only, torque actually works differently.

  10. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,491
    Liked:
    3,902
    Occupation:
    Engineer
    Torque is a product of gear ratios, diff ratios, wheel diameter, and in this case, torque multiplication through the converter.

    XtremeMaC likes this.
  11. dgh

    dgh Well-Known Member

    First Name:
    Darren
    Car(s):
    1993 RX7; 2011 Toyota RAV 4
    Joined:
    Feb 15, 2018
    Location:
    Alberta, Canada
    Posts:
    152
    Liked:
    292
    Yeah, so what does the difference between Toyotas claimed 365 lb ft, and the dynos 427, mean? If the crankshaft HP is between 390-400, what would the torque be based on Toyotas claimed, and the dyno reading?

  12. XtremeMaC

    XtremeMaC Well-Known Member

    Car(s):
    2013 GT86, 2020 Supra
    Joined:
    Aug 8, 2018
    Location:
    Michigan, USA
    Posts:
    144
    Liked:
    188
    Occupation:
    Engineer
    #42 May 21, 2019
    Last edited: May 22, 2019

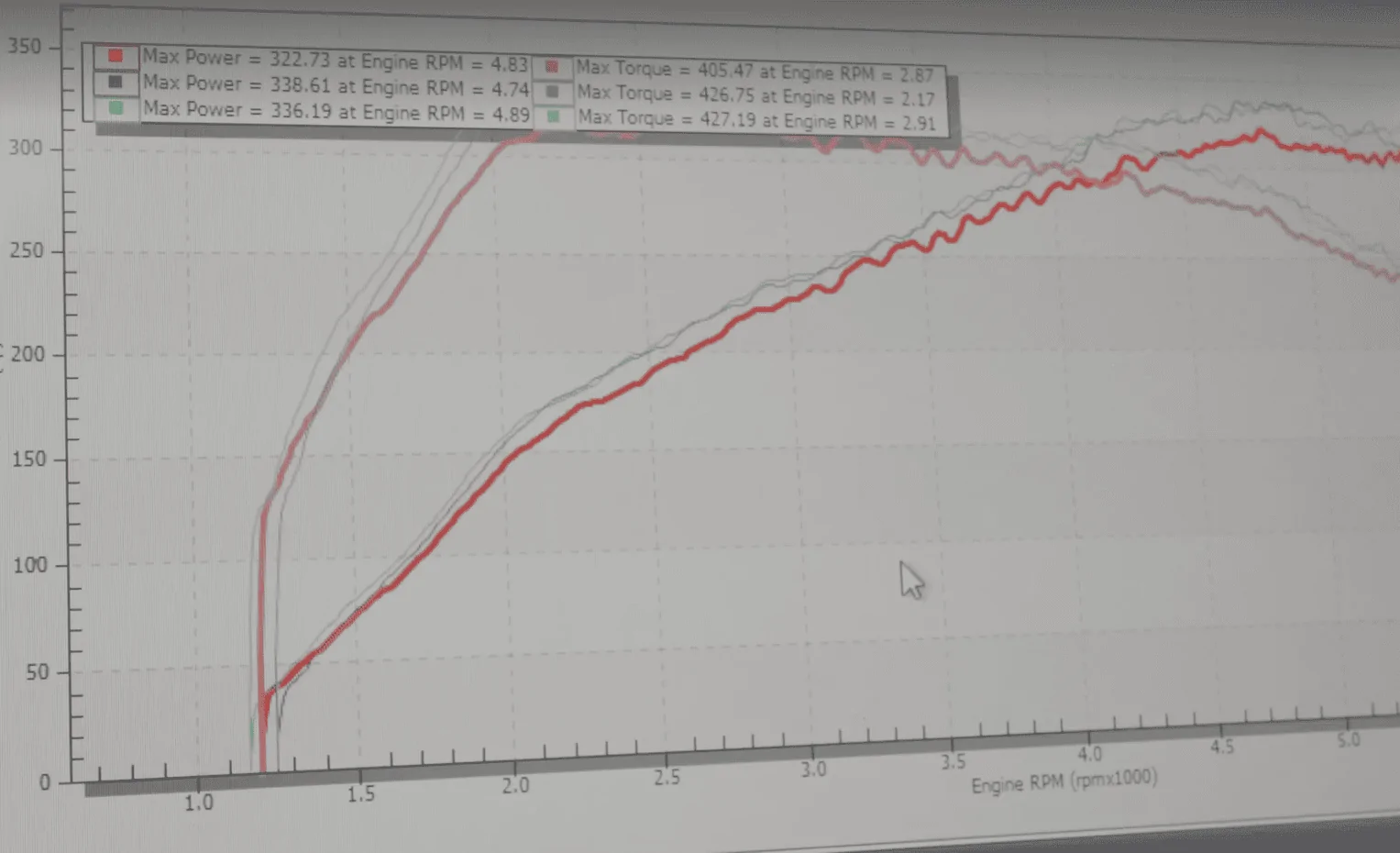

    Tried to fix it as much as possible..

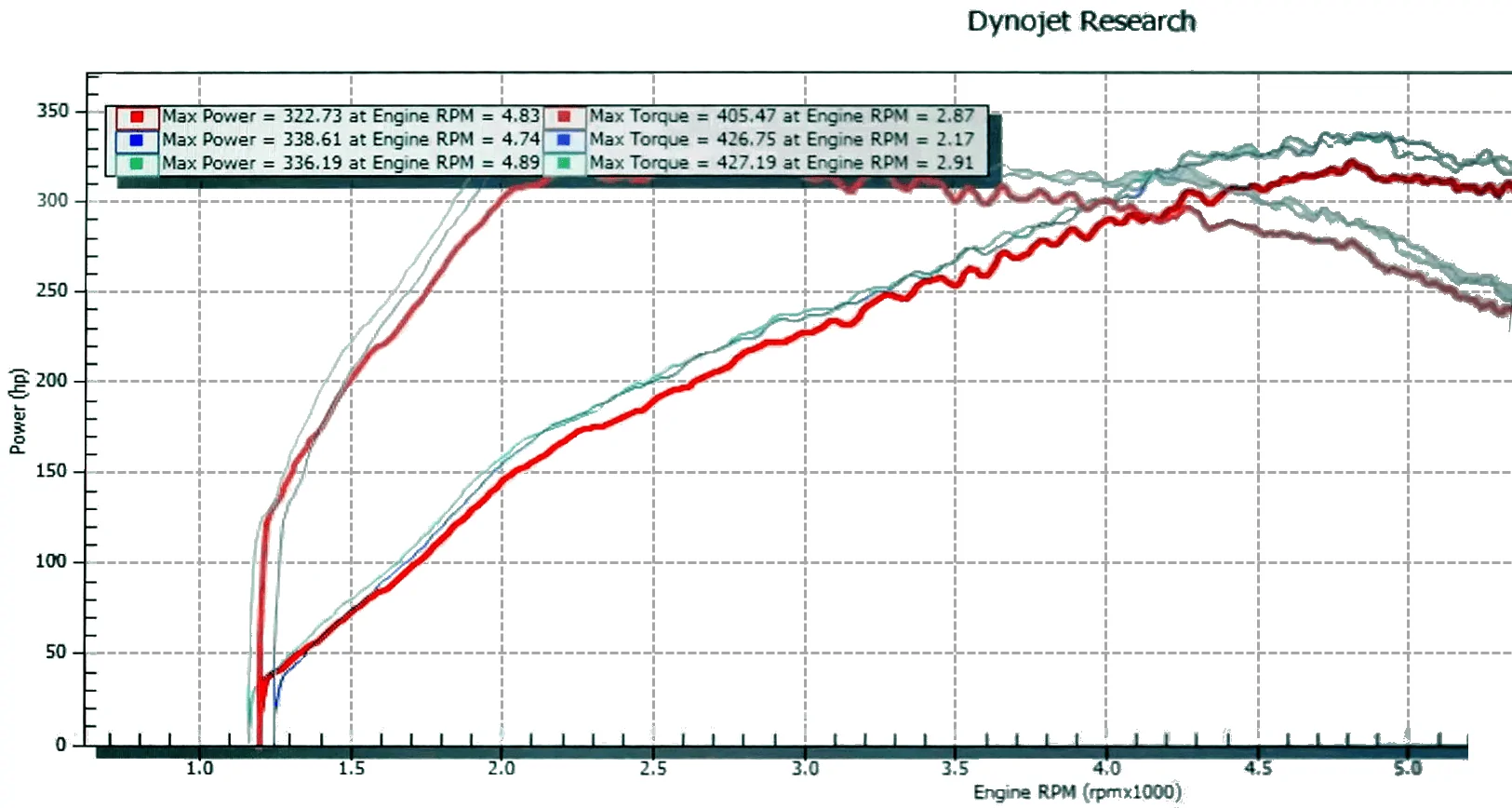

    cleaned up image:

    johnny_10196, Jabba, tisdrew and 4 others like this.
  13. 2JZ-No-Sh*t

    2JZ-No-Sh*t Well-Known Member

    Car(s):
    My feet
    Joined:
    Jun 11, 2017
    Location:
    NM
    Posts:
    1,019
    Liked:
    1,899
    Remember when this guy was crapping all over the Supra? He seems to have a different tune lately. :rolleyes:


    KeshyMKV, vb22, Jabba and 8 others like this.
  14. Nurburgring

    Nurburgring Well-Known Member

    Car(s):
    911 Turbo, M3 E46, Turbocharged NA Miata, S2000, Mazda FC3S & FD3S, EP91 Starlet, EK9 Type R, EG6 Sir2, AE86, 3SGE AE86, Evo7RS, F3 race car
    Joined:
    May 3, 2018
    Location:
    Chile
    Posts:
    190
    Liked:
    793
    >330whp is what most were expecting, as this has been almost universal with turbo BMW powerplants.

    But the big news is this engine is a torque monster! We just have the HP scale on the screenthot, but making some approximations, it`s churning around 250lb-ft at 1500rpms, and 400 at 2000rpms. That`s insane.
    The other side of the coin is that power is peaking very early (around 4800rpms).

    Both characteristics are largely determined by two factors: A small twin scroll turbo and the integrated head/manifold with very short runners. This is probably good news for the aftermarket: there is some big power to be made with a larger snail. For a street car though, the engine in stock form seems pretty damn sweet.



    Half Vast, mas921, XtremeMaC and 2 others like this.
  15. madweazl

    madweazl Well-Known Member

    First Name:
    Aaron
    Car(s):
    '15 Mustang GT & '13 Ram 1500 Longhorn
    Joined:
    May 18, 2019
    Location:
    NOVA
    Posts:
    57
    Liked:
    66
    Garage Profiles:
    1

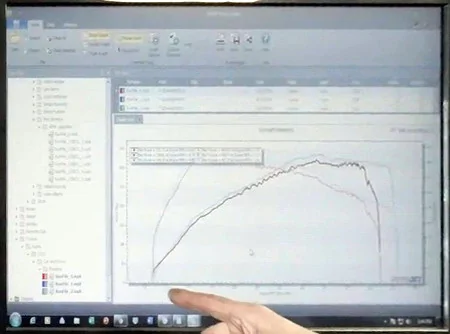

    I'd imagine it to look a lot like this one (also lacking the particulate filter).


    vb22, XtremeMaC and Goose like this.
