ECUTEK ProEcu For BMW B58/2020+ A90 Supra Discussion

Amfchang

Well-Known Member
First Name
AMF
Joined
Nov 11, 2019
Posts
62
Reaction score
21
Location
Honolulu Hawaii
Car(s)
2020 Toyota Supra
I hated ecutek when I had my BRZ. But might be different with the Supra. Who knows? is there a cold start delete offered?




Advertisement




Goose

Well-Known Member
First Name
Michael
Joined
Feb 1, 2019
Posts
455
Reaction score
717
Location
NC
Car(s)
2013 FRS
Did you tested the MHD stage 2 on a dyno? Just to compare.
That's the lower number on the screen. Dyno Dynamics read way lower than what most are used to. On a dynojet, it was 440/490


jay1k2

Well-Known Member
First Name
Jordan
Joined
Jul 31, 2019
Posts
63
Reaction score
34
Location
Atlanta
Car(s)
IS350, 2020 Supra
I hated ecutek when I had my BRZ. But might be different with the Supra. Who knows? is there a cold start delete offered?
What didn’t you like about it?


[email protected]

Well-Known Member
Gold Sponsor
Joined
Feb 9, 2020
Posts
199
Reaction score
190
Location
Scottsdale AZ
Car(s)
2020 GR Supra
From your point of view. Do you think the reason for the unequal spreading of meth in the cylinders is from the design of the manifold? Or from the location of the methanol jet? (For example, if we moved the methanol jet further away from the manifold. it has more time to mix with air. Which will eventually spread equally to all cylinders? assuming that the manifold design is perfect.) Or are there other reasons?
This is a complex answer.

One part of it is when you go around bend the fluid seperates from the mixture and you wet the wall. This happens on every bend, and every surface you go around "baffles" the fluid. This is a highly debateable toppic but shooting meth post intercooler is typically more ideal to prevent the baffeled effect. Direct port meth is the way to go. Or port fuel injection for a quality gain. However cooling charges work better further away. So you can still cool the charge a bit with a nice charge pipe inlet. I may plumb mine back in with a heavy water mix just for cooling down the road. But my temps arent all that bad on my pure setup.


AndyMy

Well-Known Member
First Name
Andy
Joined
Jan 14, 2020
Posts
137
Reaction score
74
Location
Alabama
Car(s)
Supra 2020 launch edition
Vehicle Showcase
1
Went from MHD stage 2 to Ecutek yesterday. This is on a dyno dynamics, so it'll look lower than what most are used to, but the jump in powet is huge. Planning on hitting the dynojet I usually tune on, on tuesday.

So u like ecutek better, do u still get a lot burble?


Goose

Well-Known Member
First Name
Michael
Joined
Feb 1, 2019
Posts
455
Reaction score
717
Location
NC
Car(s)
2013 FRS
So u like ecutek better, do u still get a lot burble?
Burble is back to how it was stock. Definitely pulls harder, but it feels much smoother. As much as I enjoyed the obnoxious pops, I think it suits the car better being less bangy.

I think I do like this more.


AndyMy

Well-Known Member
First Name
Andy
Joined
Jan 14, 2020
Posts
137
Reaction score
74
Location
Alabama
Car(s)
Supra 2020 launch edition
Vehicle Showcase
1
Burble is back to how it was stock. Definitely pulls harder, but it feels much smoother. As much as I enjoyed the obnoxious pops, I think it suits the car better being less bangy.

I think I do like this more.
I have mhd tune and the burble is pop louder. But my friends recommend ecutek


65sohc

Well-Known Member
First Name
Ken
Joined
Mar 8, 2020
Posts
334
Reaction score
159
Location
Fresno, CA
Car(s)
2020 Supra, 65 GTO restomod, 69 Corvette
As I mentioned earlier, my fluid injection to suppress detonation experience dates back to my first car, a '71 Mercury Capri 2.0 on which I eventually installed an Ak Miller Rayjay turbo.In college a friend repurposed my windshield washer to squirt water down the secondary barrel of the 2V Weber downdraft carb under boost. As Mr. Spock would say, it was "crude but effective." The water vs. meth injection debate has gone on for decades. Alcohol does seem to offer advantages over straight water but I think the primary benefit is charge
Honestly I don't even remember I would have to check. I am actually about to go flush my fuel system and throw some ACN91 in to test some stuff. but its somwhere around 24-28PSI if I had to guess.
When you quote boost figures are you talking about charge pipe pressure pre-intercooler or manifold pressure post-intercooler? When I look at my logs there is a huge difference on the order of 10 psi.


[email protected]

Well-Known Member
Gold Sponsor
Joined
Feb 9, 2020
Posts
199
Reaction score
190
Location
Scottsdale AZ
Car(s)
2020 GR Supra
As I mentioned earlier, my fluid injection to suppress detonation experience dates back to my first car, a '71 Mercury Capri 2.0 on which I eventually installed an Ak Miller Rayjay turbo.In college a friend repurposed my windshield washer to squirt water down the secondary barrel of the 2V Weber downdraft carb under boost. As Mr. Spock would say, it was "crude but effective." The water vs. meth injection debate has gone on for decades. Alcohol does seem to offer advantages over straight water but I think the primary benefit is charge

When you quote boost figures are you talking about charge pipe pressure pre-intercooler or manifold pressure post-intercooler? When I look at my logs there is a huge difference on the order of 10 psi.
This is another complicated quesiton. The engine works by boost presure in the charge pipe. When i quote my boost it is with the throttle blade at full open, and the charge pipe pressure. As the intake manifold pressure sensor log item maxes out at 2560mbar on the OEM logging. Some platforms do extend this.

late last week I migrated my car back to ACN91 to do some testing. I ran my car at ~2600-2750mbar absolute pressure in 105-115F ambient temps at 1400-1700FT Elevation. So thats at ~24-26PSI completely maxing out my OEM fuel system. I finally got some time to revise my base maps a bit.


Goose

Well-Known Member
First Name
Michael
Joined
Feb 1, 2019
Posts
455
Reaction score
717
Location
NC
Car(s)
2013 FRS
I have mhd tune and the burble is pop louder. But my friends recommend ecutek
I can definitely support that. We'll be able to get much more out of this car with Ecutek than with MHD right now. MHD might put some more juice in their tunes later, but for right now, Ecutek is the way to go.


AndyMy

Well-Known Member
First Name
Andy
Joined
Jan 14, 2020
Posts
137
Reaction score
74
Location
Alabama
Car(s)
Supra 2020 launch edition
Vehicle Showcase
1
I can definitely support that. We'll be able to get much more out of this car with Ecutek than with MHD right now. MHD might put some more juice in their tunes later, but for right now, Ecutek is the way to go.
Too expensive


APanoMKV

Well-Known Member
Joined
Mar 14, 2020
Posts
53
Reaction score
14
Location
San Francisco
Car(s)
2020 Supra LE
Vehicle Showcase
1

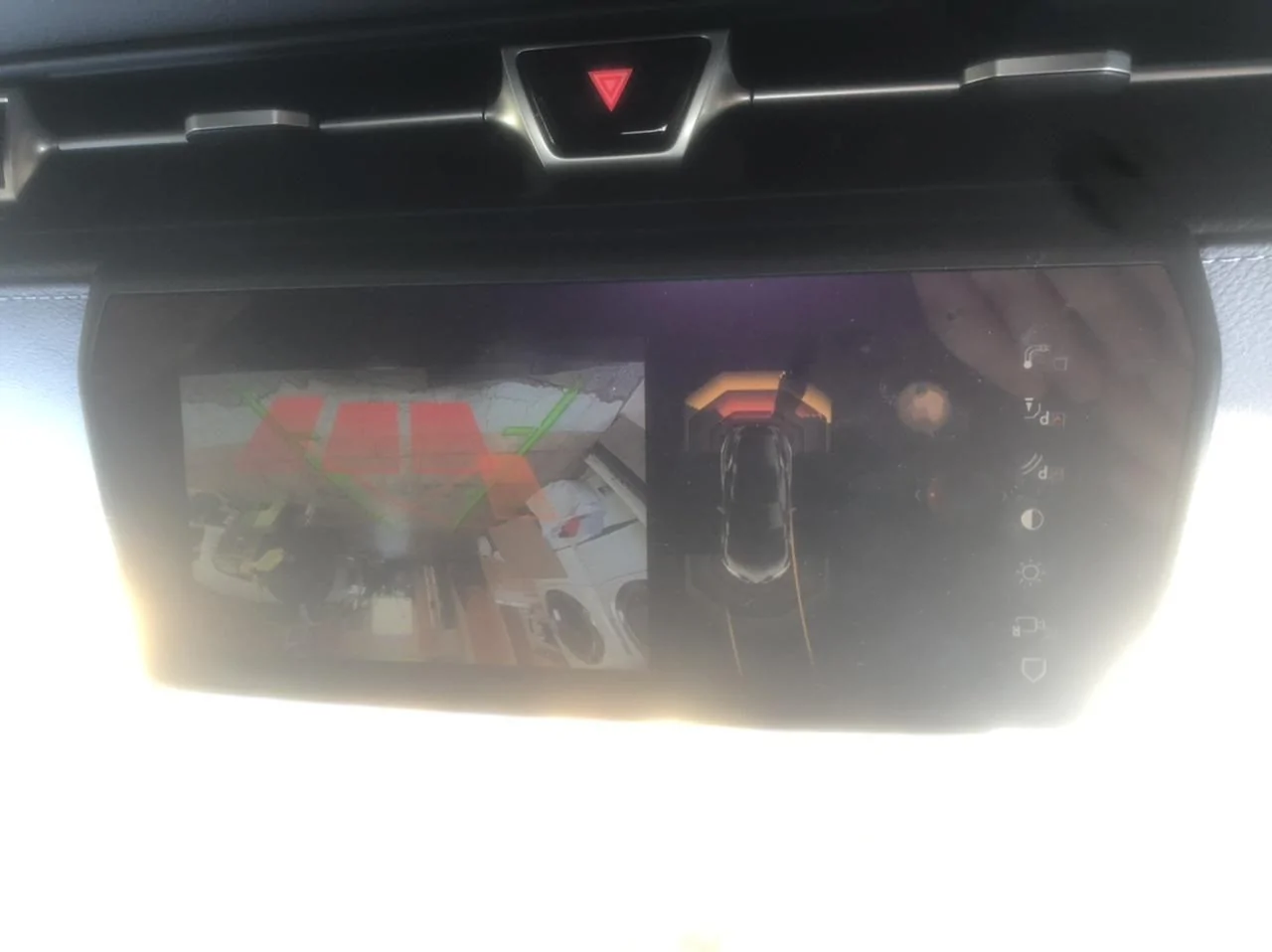

Does anyone know if we can code the backup camera to always turn on when we hit the parking sensors (if your car comes with it).


65sohc

Well-Known Member
First Name
Ken
Joined
Mar 8, 2020
Posts
334
Reaction score
159
Location
Fresno, CA
Car(s)
2020 Supra, 65 GTO restomod, 69 Corvette
This is another complicated quesiton. The engine works by boost presure in the charge pipe. When i quote my boost it is with the throttle blade at full open, and the charge pipe pressure. As the intake manifold pressure sensor log item maxes out at 2560mbar on the OEM logging. Some platforms do extend this.

late last week I migrated my car back to ACN91 to do some testing. I ran my car at ~2600-2750mbar absolute pressure in 105-115F ambient temps at 1400-1700FT Elevation. So thats at ~24-26PSI completely maxing out my OEM fuel system. I finally got some time to revise my base maps a bit.
What sort of exhaust gas temperature are you seeing under those conditions?


[email protected]

Well-Known Member
Silver Sponsor
First Name
Marshall
Joined
May 7, 2020
Posts
155
Reaction score
158
Location
Bailey, North Carolina
Car(s)
2017 Nissan GTR - 2018 Honda Civic Type R
