How To Install & Tips For ZL1 Splash Guards (Front & Rear)

Supbrah

Well-Known Member
First Name
DB
Joined
Apr 13, 2020
Posts
92
Reaction score
74
Location
USA
Car(s)
2020 Downshift Blue Supra
I’ve been having a hard time getting information from these guys on my order, very quick to charge me but not so quick to provide info. I cancelled my order. Their customer service leaves a lot to be desired.




Advertisement




stacyoz

Well-Known Member
First Name
Stacy
Joined
Jan 25, 2020
Posts
63
Reaction score
76
Location
california
Car(s)
2020 Toyota GR Supra MKV, 2000 Toyota Land Cruiser, 1998 Toyota Supra MKIV, 1989 Toyota Supra MKIII, 1980 VW Scirocco
installed my ZL1 rock guards with the hardware provided by the manufacturer. After a month or so, several of the screws holding the rear guard popped out and I lost the stand-offs. I believe the screws provided are specified as follows;
o SCREW, SHEET METAL, #8-16 X 1-1/2in, PAN HEAD, PHILLIPS, BLACK OXIDE

I was able to find similar stand-offs from the hardware store 1/2in O.D. x 3/4in. The original stand-offs were 1/2in O.D. x 0.8750in, so the gap between the guard and the fender is smaller, but not touching. I replaced the screws with a slightly bigger screw to solve this issue:
o SCREW, SHEET METAL, #10-16 X 1-1/2in, PAN HEAD, PHILLIPS, BLACK OXIDE
https://www.amazon.com/Stainless-Finish-Phillips-Thread-Length/dp/B00GI82EYS/ref=sr_1_2?dchild=1&keywords=Screws&pd_rd_r=99a2a98c-a9b2-47db-a8e0-bdc4a3c35dcd&pd_rd_w=7WHqO&pd_rd_wg=muJvu&pf_rd_p=91473338-a775-4a82-9600-6767cae1f29a&pf_rd_r=Y9WES3MMRJD6ZS07J6PK&pid=VyRJshz&qid=1598501736&refinements=p_n_feature_twenty-eight_browse-bin:19043685011,p_n_feature_fourteen_browse-bin:17910826011,p_n_feature_two_browse-bin:2292861011|2292869011|3119702011,p_n_feature_thirteen_browse-bin:15245615011|15245616011&s=industrial&sr=1-2

Hope this helps anyone that runs into this issue.

UPDATE: I contact ZL1 with this issue and suggestion and they sent me a mounting hardware kit for the rear rock guards to resolve the issue. They noted my suggestion on the screw size change.

Last edited:

Kiwi Greg

Well-Known Member
First Name
Greg
Joined
Nov 28, 2019
Posts
324
Reaction score
288
Location
New Zealand
Website
terminatorproducts.co.nz
Car(s)
2020 Supra
I have just come back from a 600 mile round trip for my daughters 21st party

My partner & I had the Supra loaded up a bit not to bad though

I'm on H&R springs with a decent rear alignment with around 2 degrees negative camber with 285-30 x 20 on 10.5" rims

They have pretty decent offset & the rim just sits inside the guard, just

If you have every been on our roads here they are like your canyon roads except a little narrower & rougher from what I've on in car footage

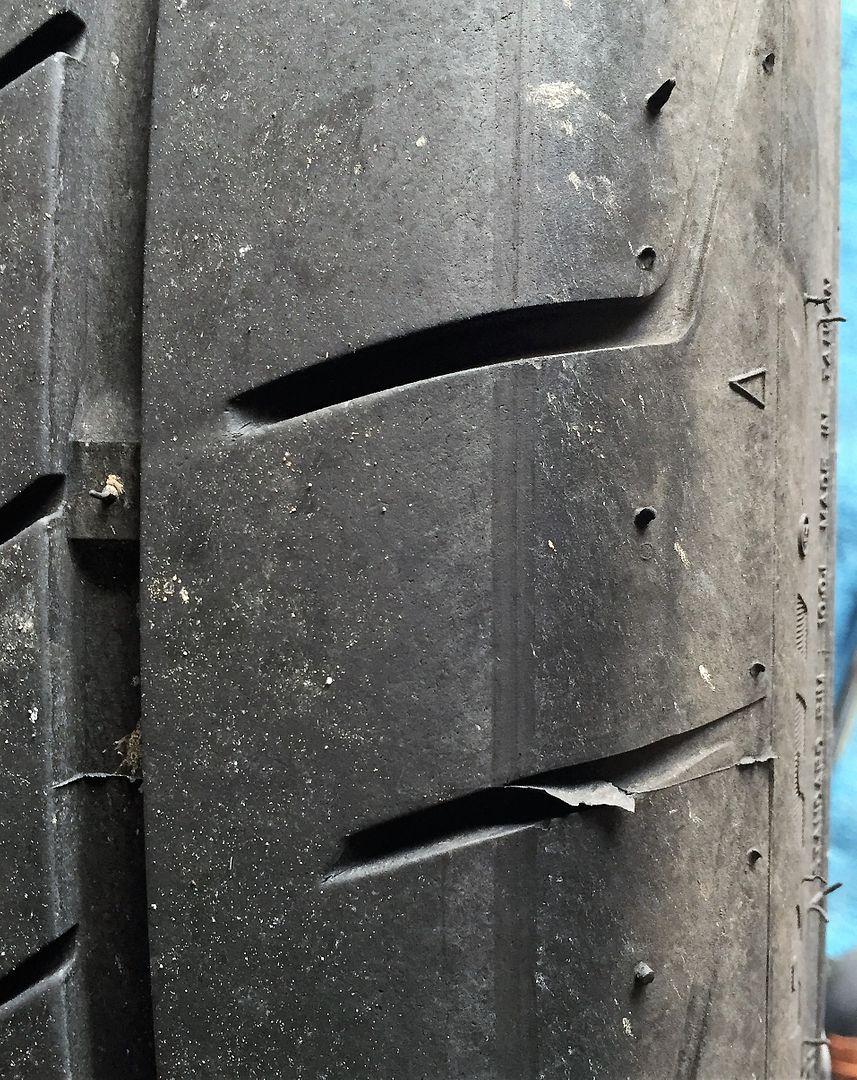

I had a rub on the drivers rear wheel in dips when the suspension loaded up over bridges & hollows etc

Couldn't see it when I was down there so pulled a wheel when I got home

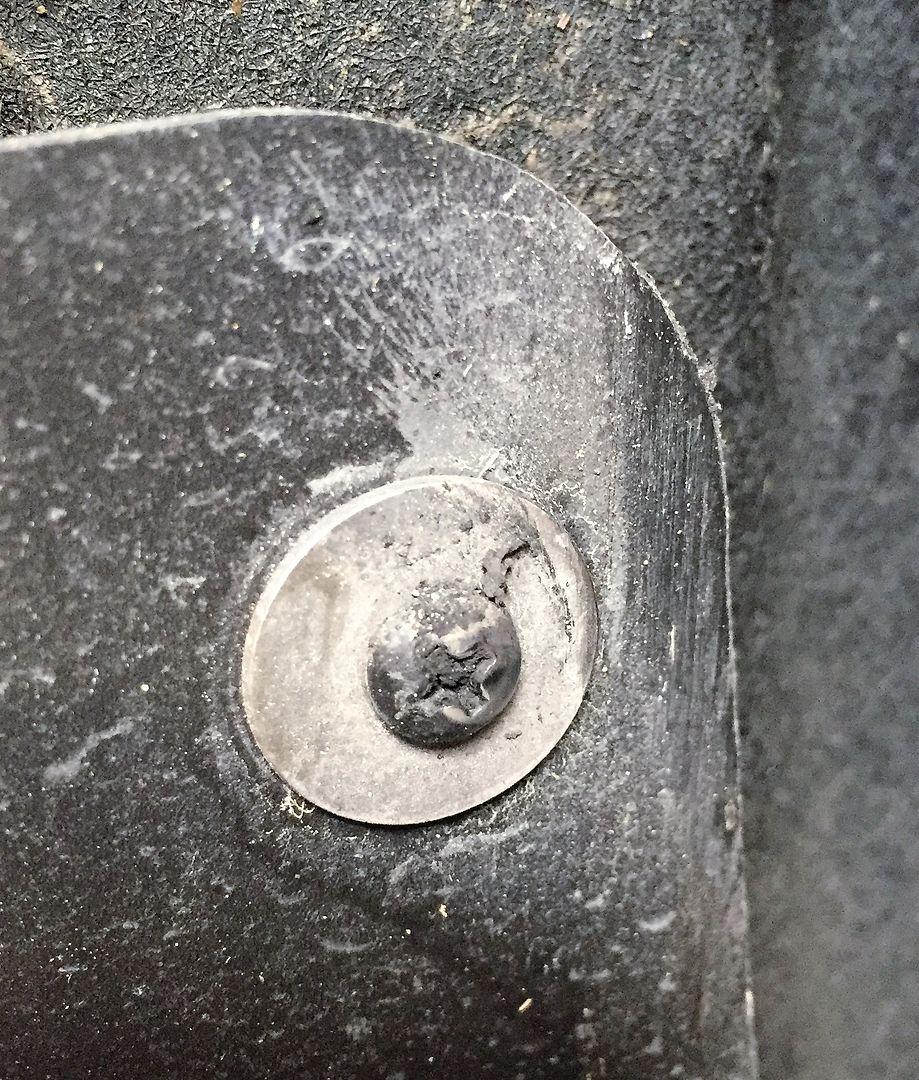

Turns out it was rubbing on the top screw somehow, so I removed the SS washer I put on to give it a little more clearance



It wasn't a bad rub just annoying o_O


H2O_Doc

Well-Known Member
First Name
Paul
Joined
Dec 19, 2020
Posts
62
Reaction score
33
Location
Virginia
Car(s)
M240i, Wrangler, MB GLA 250
I assume these fit a ‘21 as well. Anyone know otherwise?


stacyoz

Well-Known Member
First Name
Stacy
Joined
Jan 25, 2020
Posts
63
Reaction score
76
Location
california
Car(s)
2020 Toyota GR Supra MKV, 2000 Toyota Land Cruiser, 1998 Toyota Supra MKIV, 1989 Toyota Supra MKIII, 1980 VW Scirocco
Minor issue: Per ZL1 installation instruction, I believe the front rock guards should be installed BETWEEN the car sheet metal and the wheel well shell. This was discussed earlier in this thread or other threads.


supradupra

Well-Known Member
Joined
Sep 27, 2019
Posts
81
Reaction score
48
Location
pa
Car(s)
2020 supra (soon)
installed my ZL1 rock guards with the hardware provided by the manufacturer. After a month or so, several of the screws holding the rear guard popped out and I lost the stand-offs. I believe the screws provided are specified as follows;
o SCREW, SHEET METAL, #8-16 X 1-1/2in, PAN HEAD, PHILLIPS, BLACK OXIDE

I was able to find similar stand-offs from the hardware store 1/2in O.D. x 3/4in. The original stand-offs were 1/2in O.D. x 0.8750in, so the gap between the guard and the fender is smaller, but not touching. I replaced the screws with a slightly bigger screw to solve this issue:
o SCREW, SHEET METAL, #10-16 X 1-1/2in, PAN HEAD, PHILLIPS, BLACK OXIDE
https://www.amazon.com/Stainless-Finish-Phillips-Thread-Length/dp/B00GI82EYS/ref=sr_1_2?dchild=1&keywords=Screws&pd_rd_r=99a2a98c-a9b2-47db-a8e0-bdc4a3c35dcd&pd_rd_w=7WHqO&pd_rd_wg=muJvu&pf_rd_p=91473338-a775-4a82-9600-6767cae1f29a&pf_rd_r=Y9WES3MMRJD6ZS07J6PK&pid=VyRJshz&qid=1598501736&refinements=p_n_feature_twenty-eight_browse-bin:19043685011,p_n_feature_fourteen_browse-bin:17910826011,p_n_feature_two_browse-bin:2292861011|2292869011|3119702011,p_n_feature_thirteen_browse-bin:15245615011|15245616011&s=industrial&sr=1-2

Hope this helps anyone that runs into this issue.

UPDATE: I contact ZL1 with this issue and suggestion and they sent me a mounting hardware kit for the rear rock guards to resolve the issue. They noted my suggestion on the screw size change.
are these screws the same thread as the OEM ones?


Supra Werty

Well-Known Member
First Name
Will
Joined
Jul 11, 2020
Posts
81
Reaction score
41
Location
Arizona
Car(s)
2021 supra
Did mine yesterday. No real issue other than those plastic rivets are very difficult to get in right


cactusA91

Member
First Name
John
Joined
Dec 16, 2020
Posts
8
Reaction score
4
Location
Phoenix, AZ
Car(s)
81Celica Supra(1st Car)/Taco/Ghia/A91 Wannabe

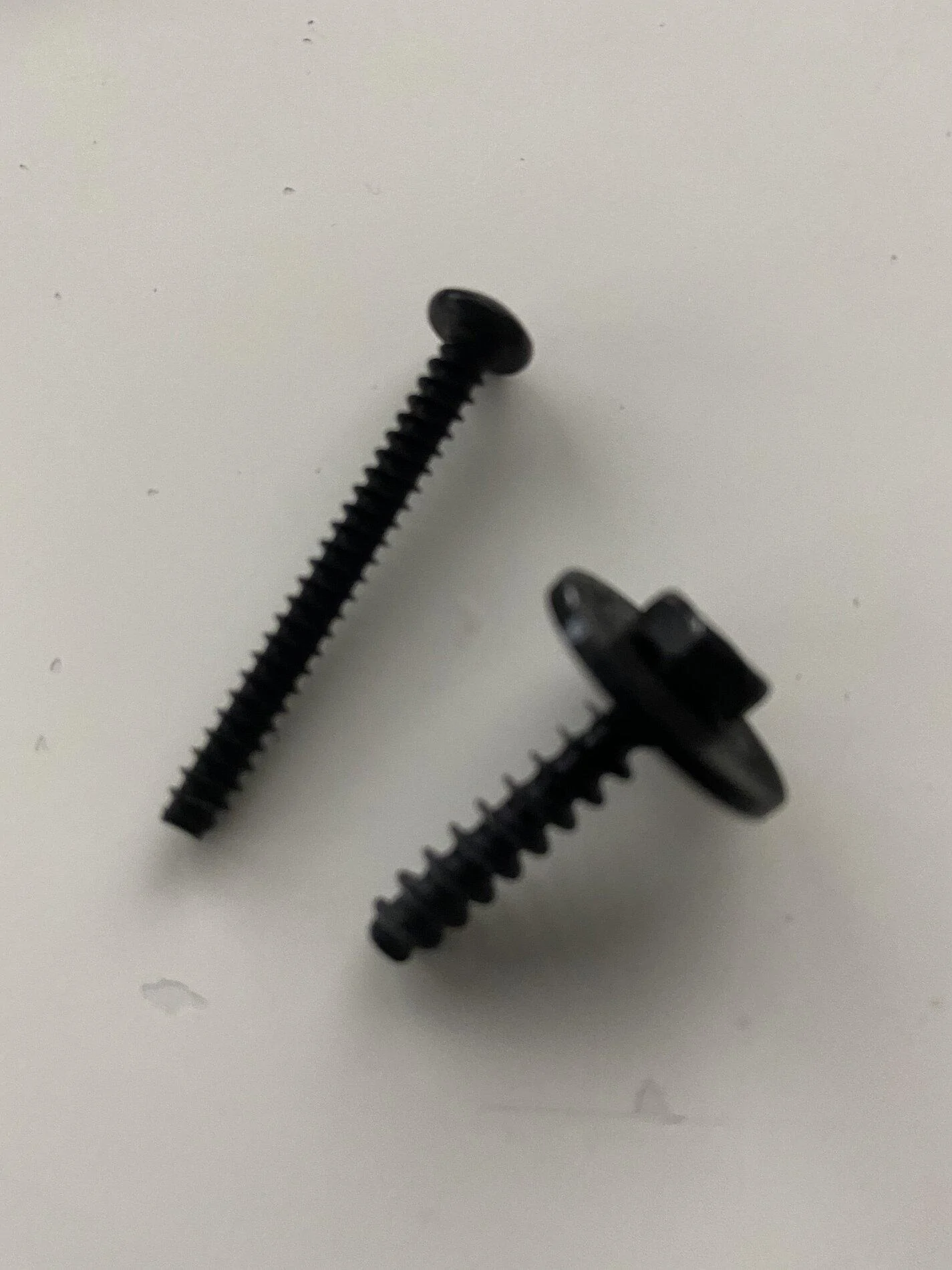

As reported rear wheel guards ship with No 8 or M4 screws - they never really grip...see pic below. Fat ones came out, skinny ones are what ZL1 supplies.

Picked up No 10 1.5" in black from Ace Car Supply (my guess is they use M5 proprietary trim screws but I couldn't find any). No 12 too big. No. 10 perfect size. 43 cents each. YMMV.
