Ohlins Road & Track

Kase

Active Member
First Name
supra.kase
Joined
Jun 21, 2020
Threads
2
Messages
43
Reaction score
29
Location
Los Angeles/Orange County
Car(s)
2021 Supra 3.0: Turbulence Gray

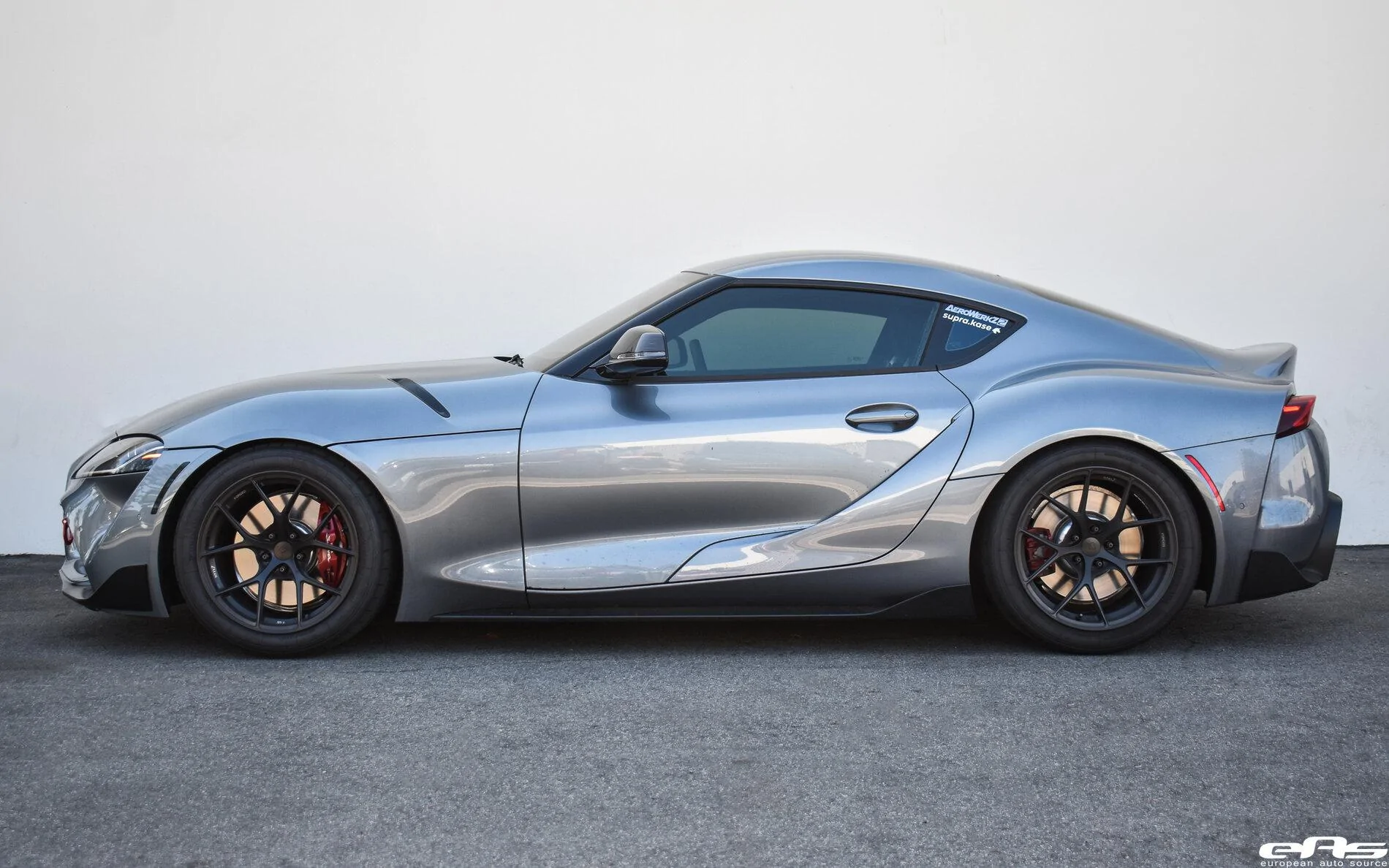

First Impressions:
Car feels great with the Ohlins, really liking how they feel on the street. Can't wait to try these out on the track. They however don't go as low as some of the other other options out there. Mostly designed to stay at near stock ride height if not just a tad lower.

We did run into one issue though where Ohlins supplied the wrong front spring. They gave us a 180mm spring instead of a 200m spring.

Car will be at Supra Sunday in Corona :)

OP
OP

Blue

Active Member
Joined
Apr 27, 2020
Threads
3
Messages
44
Reaction score
16
Location
Europe
Car(s)
BMW & Toyota
Is this the lowest it will go?


handsoffsam

Well-Known Member
First Name
Sam
Joined
May 4, 2020
Threads
3
Messages
187
Reaction score
203
Location
Houston
Car(s)
997.2 GT3, 2021 A91, 2008 S2K CR,
First Impressions:
Car feels great with the Ohlins, really liking how they feel on the street. Can't wait to try these out on the track. They however don't go as low as some of the other other options out there. Mostly designed to stay at near stock ride height if not just a tad lower.
Looks perfect with just the right amount of shock travel to let them do their thing.


dwai

New Member
Joined
Feb 26, 2019
Threads
0
Messages
2
Reaction score
0
Location
Cali
Car(s)
BRZ, Land Cruiser 200
First Impressions:
Car feels great with the Ohlins, really liking how they feel on the street. Can't wait to try these out on the track. They however don't go as low as some of the other other options out there. Mostly designed to stay at near stock ride height if not just a tad lower.

We did run into one issue though where Ohlins supplied the wrong front spring. They gave us a 180mm spring instead of a 200m spring.

Car will be at Supra Sunday in Corona :)
Did you get to try the suspension on track? Car looks sick!


METAL

Well-Known Member
First Name
K2
Joined
May 26, 2020
Threads
5
Messages
576
Reaction score
329
Location
Peoria, AZ
Website
www.instagram.com
Car(s)
2021 GR Supra 3.0 Premium (Tungsten Silver)
KW offers lifetime warranty vs Ohlins 1 or 2 year.
Though I've read couple users warranty denied due to track use. You'll want to reach out to KW and confirm this before track use.


DarkZupra

Well-Known Member
First Name
Matt
Joined
May 16, 2021
Threads
11
Messages
130
Reaction score
119
Location
Orlando, FL
Car(s)
2021 Supra 3.0, 2020 BMW M340i
Though I've read couple users warranty denied due to track use. You'll want to reach out to KW and confirm this before track use.
Yeah my experience with KW support was NOT good.


Kase

Active Member
First Name
supra.kase
Joined
Jun 21, 2020
Threads
2
Messages
43
Reaction score
29
Location
Los Angeles/Orange County
Car(s)
2021 Supra 3.0: Turbulence Gray
Couple updates since we got the Ohlins installed. The SPL End Links are not compatible with the strut's end link bracket. The bracket is in a "J" shape and is hitting the end link when going full lock. This is also causing the bearing to be out of articulation due to the end link is bent. End links were set to stock length.

We are currently working with SPL to get some custom hardware to clear the bracket.


Right Side:

Left Side:


Akashugly

Well-Known Member
First Name
Akash
Joined
Nov 17, 2020
Threads
0
Messages
90
Reaction score
78
Location
Dubai
Car(s)
2021 Toyota Supra
Couple updates since we got the Ohlins installed. The SPL End Links are not compatible with the strut's end link bracket. The bracket is in a "J" shape and is hitting the end link when going full lock. This is also causing the bearing to be out of articulation due to the end link is bent. End links were set to stock length.

We are currently working with SPL to get some custom hardware to clear the bracket.


Right Side:

Left Side:
I have the exact same issue, let me know if there is an update from SPL pls


Akashugly

Well-Known Member
First Name
Akash
Joined
Nov 17, 2020
Threads
0
Messages
90
Reaction score
78
Location
Dubai
Car(s)
2021 Toyota Supra
Because I can't use the SPL end links my sway bar hits the SPL lower control arms, so I had to chop the tips off the sway bar and now it's really close, I put some tape to see how it does over time and I still found some marks mostly during complete opposite lock of the steering wheel. So yea it's all a bit of a mess, hopefully SPL can come with a solution to accommodate the end links.


damnsupra

Member
First Name
evan
Joined
Dec 30, 2021
Threads
2
Messages
6
Reaction score
2
Location
toronto
Car(s)
supra, s15

Yea i'm in the same boat, this whole ordeal has been a nightmare... Sway bars do not fit spl parts unless you do endlinks and endlinks don't fit the ohlins. I'm assuming ohlins just made these coils for stock cars, kinda dissapointed I was very excited to put ohlins on my car. Ohlins Also do not fit the verus universal camber plates


razorlab

Well-Known Member
First Name
Bryan
Joined
Oct 2, 2021
Threads
2
Messages
180
Reaction score
286
Location
Mid-Hudson NY
Car(s)
2020 Supra LE, 2014 Evo, 2015 GTI, 2018 Alltrack

Yea i'm in the same boat, this whole ordeal has been a nightmare... Sway bars do not fit spl parts unless you do endlinks and endlinks don't fit the ohlins. I'm assuming ohlins just made these coils for stock cars, kinda dissapointed I was very excited to put ohlins on my car. Ohlins Also do not fit the verus universal camber plates
Separate from the ohlin mounting issue, did you make sure there was no preload on the bar when you installed those endlinks? the bar is way high, I cannot see how there isn't preload there.
